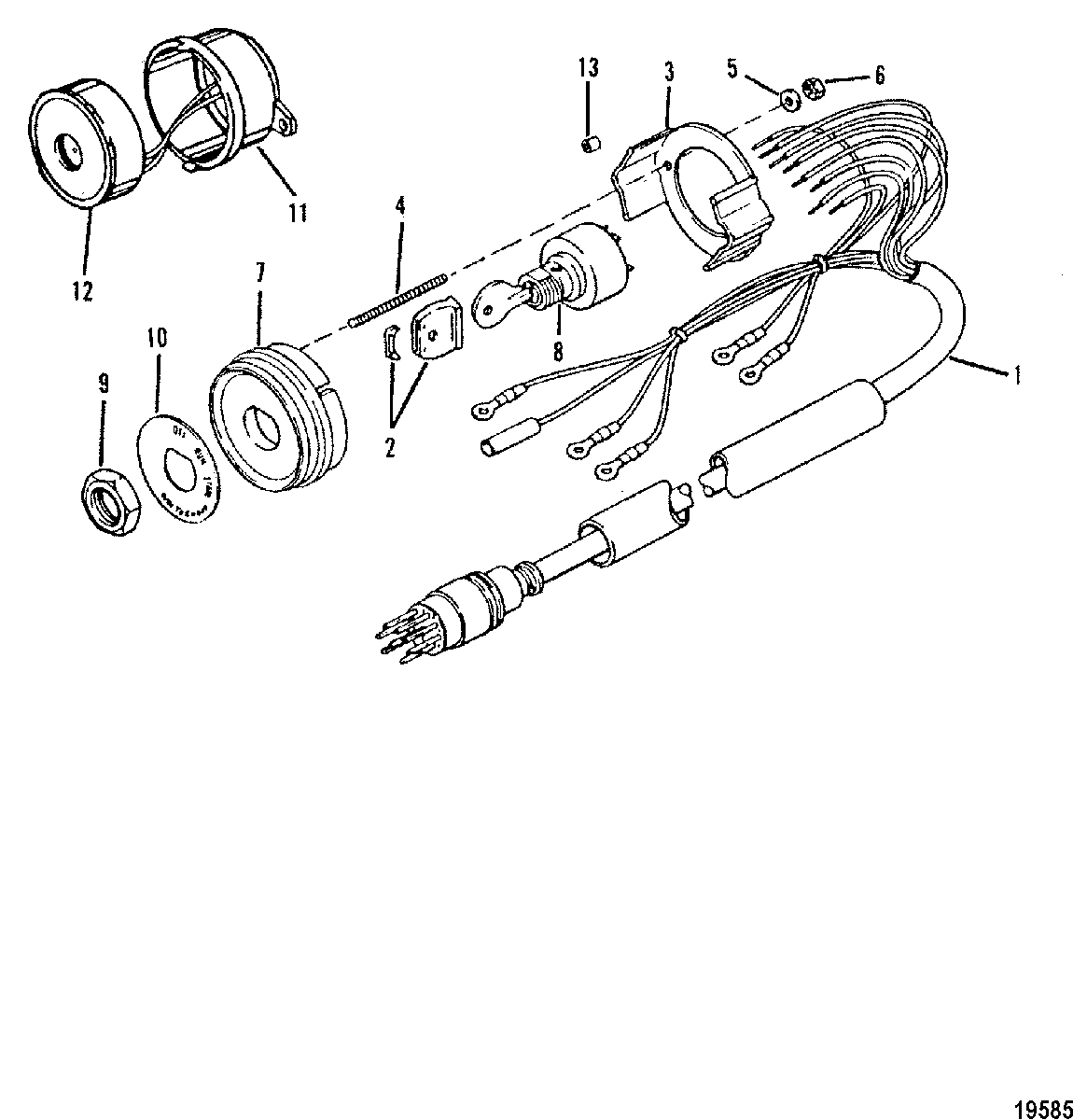

Key Switch(Counter Rotation Engines) для Mariner - V-150 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    84-816626A20 KEY SWITCH ASSEMBLY (20')
    KEY SWITCH ASSEMBLY (20')
  • 2
    90468A1 COVER ASSEMBLY, Key, IGNITION SWITCH KEYS
    COVER ASSEMBLY, Key, IGNITION SWITCH KEYS
  • 3
    76424 BRACKET, IGNITION SWITCH
    BRACKET, IGNITION SWITCH
  • 4
    16-55422 STUD, (#10-32 x 2.00), SWITCH ATTACHING
    STUD, (#10-32 x 2.00), SWITCH ATTACHING
  • 5
    12-24676 WASHER, (.200 x .440 x .032), SWITCH ATTACHING STUD
    WASHER, (.200 x .440 x .032), SWITCH ATTACHING STUD
  • 6
    11-68219 NUT, (#10-32), SWITCH ATTACHING STUD
    NUT, (#10-32), SWITCH ATTACHING STUD
  • 7
    816479A3 PLATE, SWITCH MOUNT
    PLATE, SWITCH MOUNT
  • 8
    87-88107A5 KEY SWITCH, IGNITION (SEE BELOW FOR KEYS)
    KEY SWITCH, IGNITION (SEE BELOW FOR KEYS)
  • 9
    11-879755 NUT, Special, IGNITION SWITCH
    NUT, Special, IGNITION SWITCH
  • 10
    38-90311 INSERT, SWITCH PLATE
    INSERT, SWITCH PLATE
  • 11
    68878A6 ALARM HORN AND WIRE ASSEMBLY
    ALARM HORN AND WIRE ASSEMBLY
  • 12
    68879 COVER, ALARM HORN
    COVER, ALARM HORN
  • 13
    23-8127111 SPACER, (.375)
    SPACER, (.375)
  • 13
    23-812711 SPACER, (.250)
    SPACER, (.250)
  • -
    894911 KEY
    (1A)
    KEY
    (1A)
  • -
    894912 KEY, Ignition
    (1B)
    KEY, Ignition
    (1B)
  • -
    894913 KEY 1C
    KEY 1C
  • -
    894914 KEY 1D
    KEY 1D
  • -
    894915 KEY 1E
    KEY 1E
  • -
    894916 KEY 1F
    KEY 1F
  • -
    894917 KEY 2A
    KEY 2A
  • -
    894918 KEY 2B
    KEY 2B
  • -
    894919 KEY 2C
    KEY 2C
  • -
    8949110 KEY, Ignition (2D)
    KEY, Ignition (2D)
  • -
    8949111 KEY, Ignition (2E)
    KEY, Ignition (2E)
  • -
    8949112 KEY, Ignition (2F)
    KEY, Ignition (2F)
