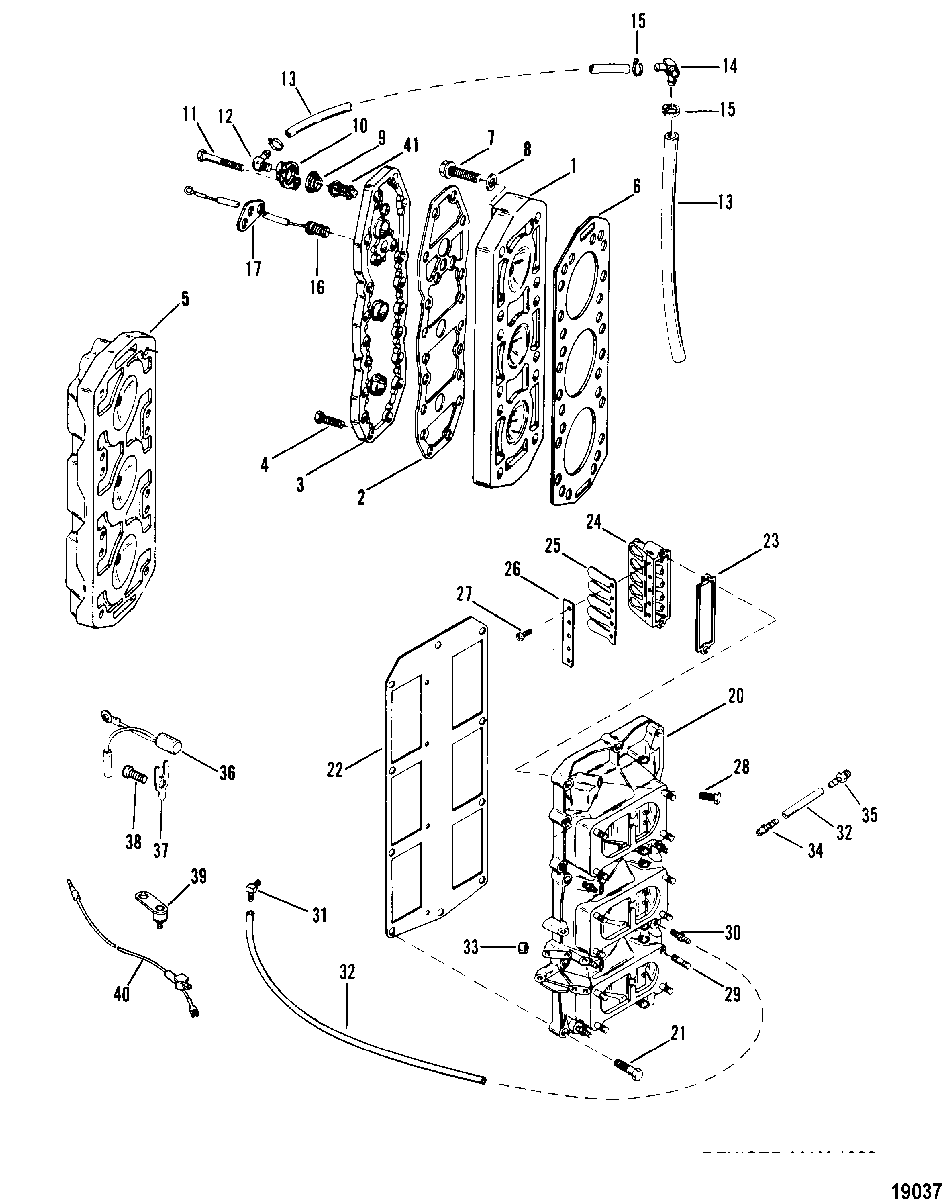

Reed Block and Cylinder Head для Mariner - V-135 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    96423T CYLINDER HEAD (2 PIECE DESIGN)
    CYLINDER HEAD (2 PIECE DESIGN)
  • 2
    27-96278 GASKET, CYLINDER COVER - (2 PIECE DESIGN)
    GASKET, CYLINDER COVER - (2 PIECE DESIGN)
  • 3
    96283 COVER, CYLINDER - (2 PIECE DESIGN)
    COVER, CYLINDER - (2 PIECE DESIGN)
  • 4
    10-74824 SCREW, (.312-18 x 1.250), CYLINDER COVER - (2 PIECE DESIGN)
    SCREW, (.312-18 x 1.250), CYLINDER COVER - (2 PIECE DESIGN)
  • 5
    18419F1 CYLINDER HEAD (1 PIECE DESIGN)
    CYLINDER HEAD (1 PIECE DESIGN)
  • 6
    27-96281T01 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 7
    10-98534 SCREW, (.375-16 x 2.30), CYLINDER HEAD
    SCREW, (.375-16 x 2.30), CYLINDER HEAD
  • 8
    12-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
    WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
  • 9
    27-62386001 GASKET
    GASKET
  • 10
    90390A1 COVER KIT, THERMOSTAT
    COVER KIT, THERMOSTAT
  • 11
    10-815549 SCREW, (.312-18 x 2), THERMOSTAT COVER
    (NOT USED W/REF. #5)
    SCREW, (.312-18 x 2), THERMOSTAT COVER
    (NOT USED W/REF. #5)
  • 11
    10-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVER
    (QTY OF 4 W/REF.#5)
    SCREW, (.312-18 x 1.00), THERMOSTAT COVER
    (QTY OF 4 W/REF.#5)
  • 12
    22-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
    FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
  • 13
    32-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
    HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
  • 14
    22-68728 FITTING, THE THERMOSTAT COVER TO WATER HOSES
    FITTING, THE THERMOSTAT COVER TO WATER HOSES
  • 15
    54-816311T CLAMP, WATER HOSES
    CLAMP, WATER HOSES
  • 16
    97465 SENDER, Temperature (STARBOARD)
    SENDER, Temperature (STARBOARD)
  • 17
    96282 COVER, TEMPERATURE SENDER
    (NOT USED W/REF. #5)
    COVER, TEMPERATURE SENDER
    (NOT USED W/REF. #5)
  • 20
    99747A2 HOUSING, REED BLOCK
    (USE W/OLD DESIGN FUEL PUMP)
    HOUSING, REED BLOCK
    (USE W/OLD DESIGN FUEL PUMP)
  • 20
    99747A9 HOUSING, REED BLOCK
    (USE W/SQUARE FUEL PUMP)
    HOUSING, REED BLOCK
    (USE W/SQUARE FUEL PUMP)
  • 21
    10-24878 SCREW, (.250-20 x 1.25), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.25), REED BLOCK HOUSING
  • 21
    10-69093 SCREW, (.250-20 x 1.50), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.50), REED BLOCK HOUSING
  • 21
    10-69067 SCREW, (.250-20 x 1.375), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.375), REED BLOCK HOUSING
  • 22
    27-935361 GASKET, REED BLOCK HOUSING
    GASKET, REED BLOCK HOUSING
  • 23
    27-657443 GASKET, REED BLOCK
    GASKET, REED BLOCK
  • 24
    75953 REED BLOCK
    REED BLOCK
  • 25
    34-75362A1 REED ASSEMBLY
    REED ASSEMBLY
  • 26
    961832 CLAMP, Reed
    CLAMP, Reed
  • 27
    10-57583T SCREW, (#8-32 x .375), REEDS TO REED BLOCK
    SCREW, (#8-32 x .375), REEDS TO REED BLOCK
  • 28
    10-65746 SCREW, (.250-20 x .750), REED BLOCK ATTACHING
    SCREW, (.250-20 x .750), REED BLOCK ATTACHING
  • 29
    16-270372 STUD, (.250-28 x 1.125), CARBURETOR MOUNTING
    STUD, (.250-28 x 1.125), CARBURETOR MOUNTING
  • 30
    21-426585 CHECK VALVE, BLEED HOSE TO REED BLOCK HOUSING
    CHECK VALVE, BLEED HOSE TO REED BLOCK HOUSING
  • 31
    22-15133 FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)
    FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)
  • 32
    32-892024122 TUBING, (20.00 Feet Bulk), BLEED LINE
    TUBING, (20.00 Feet Bulk), BLEED LINE
  • 33
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 34
    22-56759 CONNECTOR, BLEED HOSE (PRESS-IN)
    CONNECTOR, BLEED HOSE (PRESS-IN)
  • 35
    21-64871A2 CHECK VALVE
    CHECK VALVE
  • 36
    13536A7 SENSOR ASSEMBLY, Temperature
    (PORT) (BLACK/GRAY) USED WITH REF. #5 REF. #36 IS USED WITH ENGINE TEMP. GUAGE (PORT) SENDERS MOUNTED ON STBD. ARE WORKING FOR WARNING HORNS: PORT MOUNTED ARE FOR TEMP. GUAGE.
    SENSOR ASSEMBLY, Temperature
    (PORT) (BLACK/GRAY) USED WITH REF. #5 REF. #36 IS USED WITH ENGINE TEMP. GUAGE (PORT) SENDERS MOUNTED ON STBD. ARE WORKING FOR WARNING HORNS: PORT MOUNTED ARE FOR TEMP. GUAGE.
  • 37
    137151 RETAINER
    (QTY. OF 1 W/OYSTER) USED WITH REF. #5
    RETAINER
    (QTY. OF 1 W/OYSTER) USED WITH REF. #5
  • 38
    10-98257 SCREW, (.312-18 x .500)
    (QTY. OF 1 W/OYSTER)(USED WITH REF. #5)
    SCREW, (.312-18 x .500)
    (QTY. OF 1 W/OYSTER)(USED WITH REF. #5)
  • 39
    187531 SENDER, Temperature (OYSTER)
    SENDER, Temperature (OYSTER)
  • 40
    84-88824A8 CABLE ASSEMBLY, TEMPERATURE SENDER - (OYSTER)
    CABLE ASSEMBLY, TEMPERATURE SENDER - (OYSTER)
  • 41
    75692 THERMOSTAT
    THERMOSTAT
  • -
    27-90484A88 GASKET SET
    GASKET SET
