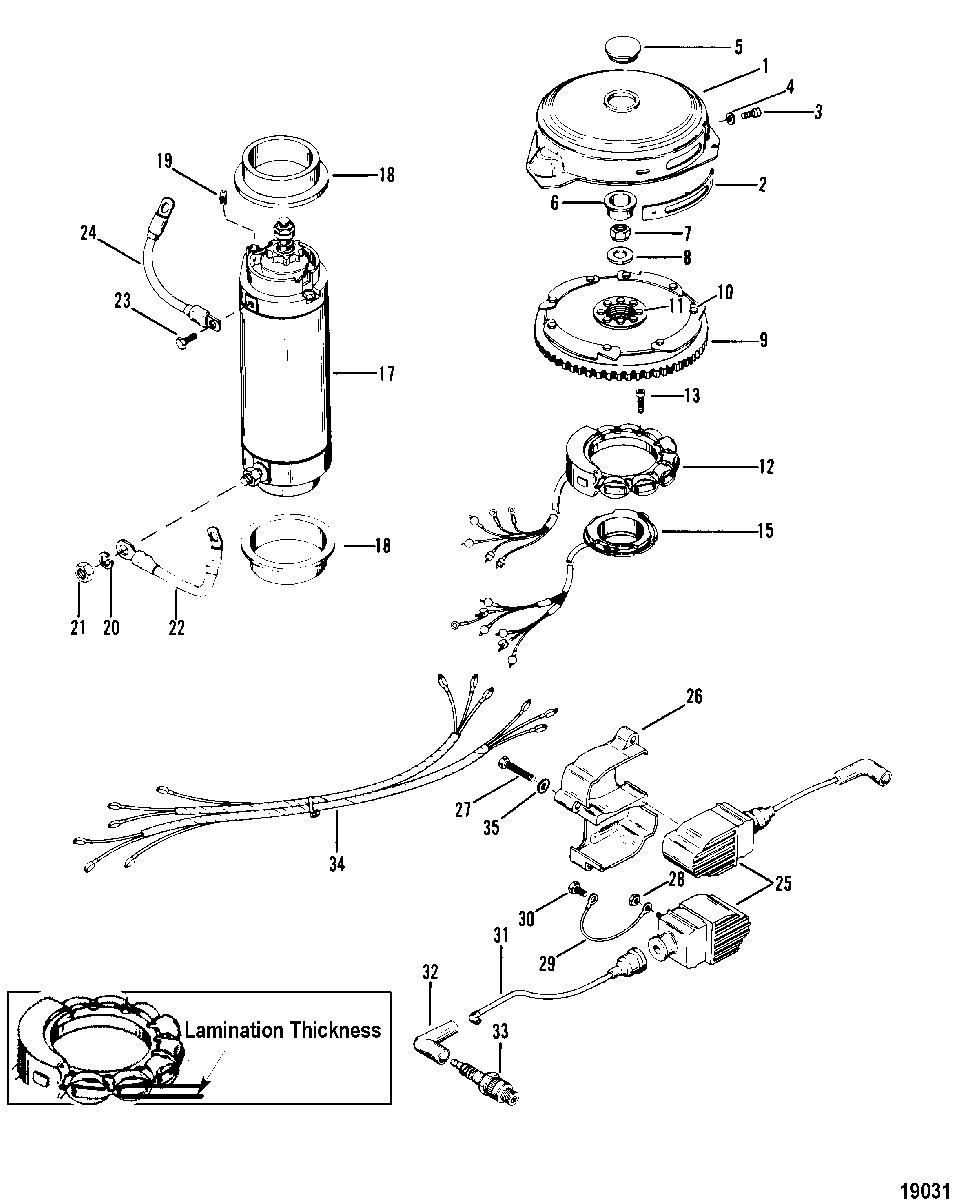

Flywheel, Starter Motor and Ignition Coils для Mariner - V-135 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    79918A1 COVER KIT, FLYWHEEL
    COVER KIT, FLYWHEEL
  • 2
    79022 MARKER, TIMING
    MARKER, TIMING
  • 3
    10-37572 SCREW, (.190-32 x .380), TIMING MARKER
    SCREW, (.190-32 x .380), TIMING MARKER
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
  • 5
    19-89219001 PLUG, FLYWHEEL COVER
    PLUG, FLYWHEEL COVER
  • 6
    19-45907 PLUG, Yellow, FLYWHEEL
    PLUG, Yellow, FLYWHEEL
  • 7
    11-52901 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 8
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL
    WASHER, (.641 x 1.250 x .190), FLYWHEEL
  • 9
    271-859238A9 FLYWHEEL
    (Use with Stator Lamination Thickness 1/2 In.)
    FLYWHEEL
    (Use with Stator Lamination Thickness 1/2 In.)
  • 9
    271-859238A9 FLYWHEEL
    (Use with Stator Lamination Thickness 5/8 In.)
    FLYWHEEL
    (Use with Stator Lamination Thickness 5/8 In.)
  • 10
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATE
    SCREW, (.250-28 x .625), FLYWHEEL PLATE
  • 11
    10-68997 SCREW, (.312-24 x .750), FLYWHEEL HUB
    SCREW, (.312-24 x .750), FLYWHEEL HUB
  • 12
    398-5454A32 STATOR (USE WITH VOLTAGE REGULATOR-15AMP)
    (Lamination Thickness is 1/2 In.)
    STATOR (USE WITH VOLTAGE REGULATOR-15AMP)
    (Lamination Thickness is 1/2 In.)
  • 12
    398-5454A35 STATOR (USE WITH VOLTAGE REGULATOR-15AMP)
    (Lamination Thickness is 5/8 In.)
    STATOR (USE WITH VOLTAGE REGULATOR-15AMP)
    (Lamination Thickness is 5/8 In.)
  • 13
    10-19926100 SCREW, (#10-24 x 1.00), STATOR
    SCREW, (#10-24 x 1.00), STATOR
  • 15
    96455A9 PLATE ASSEMBLY, Trigger
    PLATE ASSEMBLY, Trigger
  • 17
    50-893893 STARTER MOTOR ASSEMBLY (8 TOOTH PINION)
    STARTER MOTOR ASSEMBLY (8 TOOTH PINION)
  • 18
    23-8M0034918 COLLAR, STARTER MOTOR
    COLLAR, STARTER MOTOR
  • 19
    8M0043376 STOP, Rubber, RUBBER - STARTER MOTOR
    STOP, Rubber, RUBBER - STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 21
    11-20890 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 22
    84-93388A14 CABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTOR
    CABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTOR
  • 23
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 24
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR
    CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR
  • 25
    339-832757A4 COIL ASSEMBLY, Ignition, IGNITION
    COIL ASSEMBLY, Ignition, IGNITION
  • 26
    67614 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 27
    10-88447 SCREW, (.190-32 x 1.62), IGNITION COIL COVER
    SCREW, (.190-32 x 1.62), IGNITION COIL COVER
  • 28
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 29
    84-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COIL
    CABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COIL
  • 30
    10-68513 SCREW, (#10-32 x .375) Stainless Steel, GROUND STRAP
    SCREW, (#10-32 x .375) Stainless Steel, GROUND STRAP
  • 31
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 32
    85-63709A1 BOOT/TERMINAL KIT, HIGH TENSION CABLE
    BOOT/TERMINAL KIT, HIGH TENSION CABLE
  • 33
    33-13686Q SPARK PLUG
    SPARK PLUG
  • 34
    84-69738A7 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 & 6)
    HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 & 6)
  • 34
    84-69739A2 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 & 5)
    HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 & 5)
  • 35
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL COVER SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL COVER SCREW
