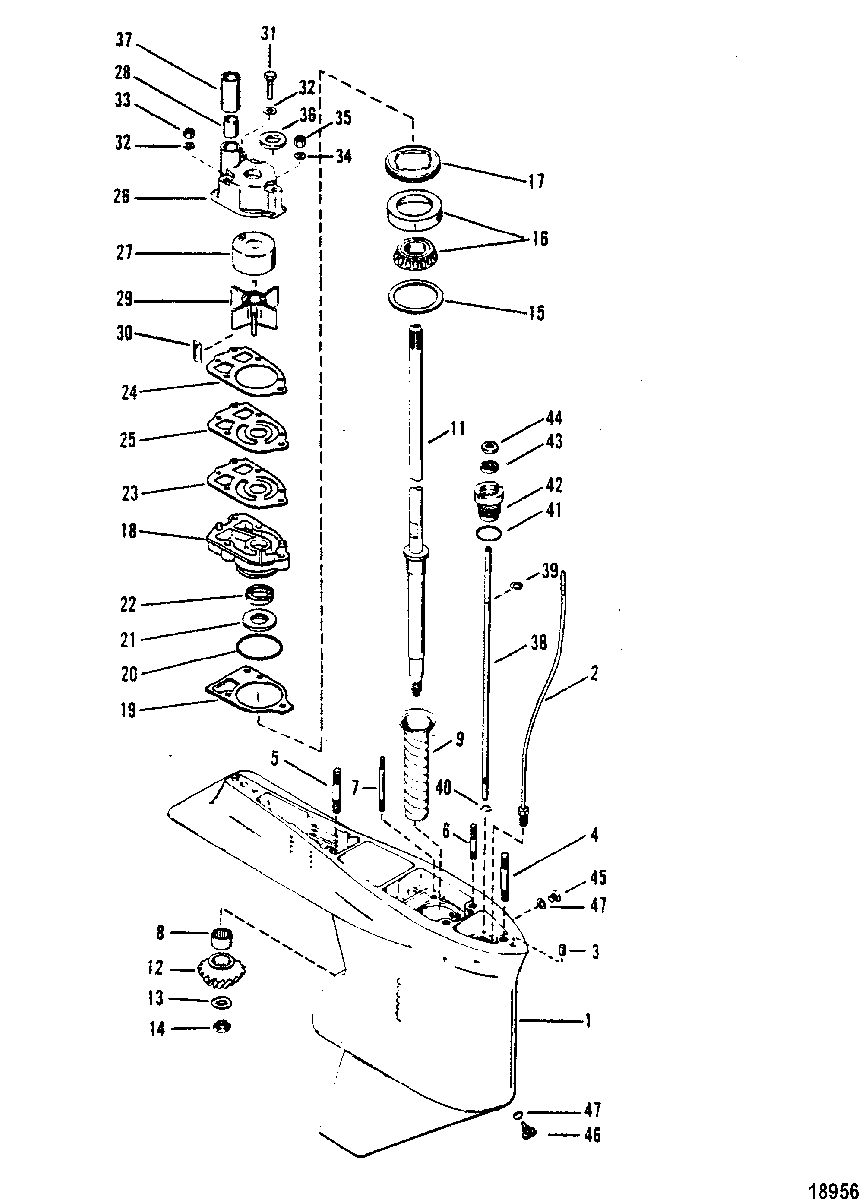

Gear Housing(Driveshaft) для Mariner - V-135 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)
    GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY (LONG) (OYSTER)
    GEAR HOUSING ASSEMBLY (LONG) (OYSTER)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER)
    GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (BLACK-BASIC)
    GEAR HOUSING ASSEMBLY (BLACK-BASIC)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (GRAY-BASIC)
    GEAR HOUSING ASSEMBLY (GRAY-BASIC)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (OYSTER-BASIC)
    GEAR HOUSING ASSEMBLY (OYSTER-BASIC)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-43044 PIN, Dowel, GEAR HOUSING LOCATING
    PIN, Dowel, GEAR HOUSING LOCATING
  • 4
    16-786382 STUD, (.438 x 3.12), GEAR HOUSING (LONG)
    STUD, (.438 x 3.12), GEAR HOUSING (LONG)
  • 4
    16-78639 STUD, GEAR HOUSING (9") - (EXTRA LONG)
    STUD, GEAR HOUSING (9") - (EXTRA LONG)
  • 5
    16-8M0133358 STUD, (.44 x 2.06), GEAR HOUSING (LONG)
    STUD, (.44 x 2.06), GEAR HOUSING (LONG)
  • 5
    16-74730 STUD, GEAR HOUSING (7-1/16") - (EXTRA LONG)
    STUD, GEAR HOUSING (7-1/16") - (EXTRA LONG)
  • 6
    16-8M0034463 STUD, (.312 x 3.38), WATER PUMP
    STUD, (.312 x 3.38), WATER PUMP
  • 7
    16-306671 STUD, (.250-20/.250-28 x 3.125), WATER PUMP
    STUD, (.250-20/.250-28 x 3.125), WATER PUMP
  • 8
    31-42647A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Roller, DRIVE SHAFT
  • 9
    23-43998 SLEEVE, LUBRICATION
    SLEEVE, LUBRICATION
  • 11
    45-897624T DRIVESHAFT (LONG)
    DRIVESHAFT (LONG)
  • 11
    45-897625T DRIVESHAFT (EXTRA LONG)
    DRIVESHAFT (EXTRA LONG)
  • 12
    N.S.S. Not Sold Separate, Pinion Gear (PART OF 43-44102A2)
    Not Sold Separate, Pinion Gear (PART OF 43-44102A2)
  • 13
    12-92721 WASHER, PINION GEAR
    WASHER, PINION GEAR
  • 14
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVE SHAFT
    NUT, (.625-18), PINION GEAR TO DRIVE SHAFT
  • 15
    15-8M0063267 SHIM SET, ROLLER BEARING TO GEAR HOUSING
    SHIM SET, ROLLER BEARING TO GEAR HOUSING
  • 16
    31-36387A1 BEARING ASSEMBLY, Roller/Cup, DRIVE SHAFT
    BEARING ASSEMBLY, Roller/Cup, DRIVE SHAFT
  • 17
    8245191 NUT, DRIVE SHAFT BEARING
    NUT, DRIVE SHAFT BEARING
  • 18
    46-8M0077147 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 19
    27-426311 GASKET, WATER PUMP TO GEAR HSG
    GASKET, WATER PUMP TO GEAR HSG
  • 20
    25-896523 O-RING, (2.175 x .175), WATER PUMP
    O-RING, (2.175 x .175), WATER PUMP
  • 20
    25-38099 O-RING, WATER PUMP (2.109 I.D.)
    O-RING, WATER PUMP (2.109 I.D.)
  • 21
    26-89238 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 22
    26-16977 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 23
    27-8M0090319 GASKET, LOWER - WATER PUMP
    GASKET, LOWER - WATER PUMP
  • 24
    27-858524 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 25
    324351 FACE PLATE, FACE - WATER PUMP
    FACE PLATE, FACE - WATER PUMP
  • 26
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 27
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 28
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 29
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 30
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 31
    10-96411 SCREW, (#14-8 x 2.25), WATER PUMP
    SCREW, (#14-8 x 2.25), WATER PUMP
  • 32
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD
  • 33
    11-8267119 NUT, (.250-28), WATER PUMP STUD
    NUT, (.250-28), WATER PUMP STUD
  • 34
    12-36001 WASHER, WATER PUMP STUD
    WASHER, WATER PUMP STUD
  • 35
    11-13436 NUT, WATER PUMP STUD
    NUT, WATER PUMP STUD
  • 36
    25-30271 RING, Rubber, RUBBER (DRIVE SHAFT)
    RING, Rubber, RUBBER (DRIVE SHAFT)
  • 37
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 38
    789022 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 39
    53-29641 E RING, RETAINING - SHIFT SHAFT
    E RING, RETAINING - SHIFT SHAFT
  • 40
    53-78907 RING, Retaining
    RING, Retaining
  • 41
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-8164641 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 44
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 45
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 46
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 47
    12-191833 WASHER, GREASE FILLER AND DRAIN SCREW
    WASHER, GREASE FILLER AND DRAIN SCREW
  • -
    46-96148A8 REBUILD KIT, Water Pump
    REBUILD KIT, Water Pump
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-90484A88 GASKET SET
    GASKET SET
