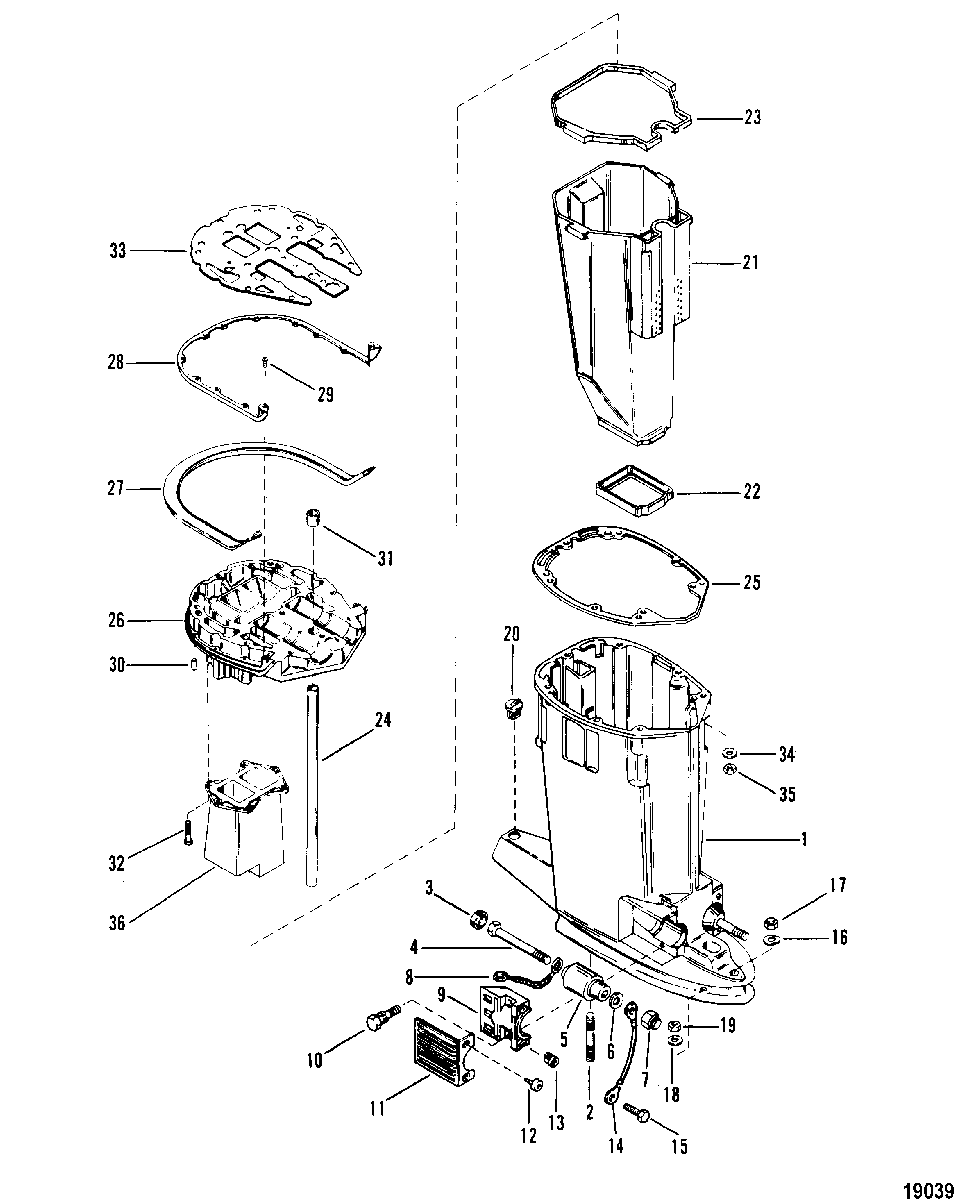

Driveshaft Housing and Exhaust Tube для Mariner - V-135 0A904646 THRU 0C100860

№

Артикул

Название
1

1590-8343A7 HOUSING ASSEMBLY, Driveshaft (BLACK)

HOUSING ASSEMBLY, Driveshaft (BLACK)
1

1590-8343A8 HOUSING ASSEMBLY, Driveshaft (GRAY)

HOUSING ASSEMBLY, Driveshaft (GRAY)
1

1590-8343A8 HOUSING ASSEMBLY, Driveshaft (OYSTER)

HOUSING ASSEMBLY, Driveshaft (OYSTER)
2

16-56295 STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG. (LONG)

STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG. (LONG)
2

16-74732 STUD, DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG)

STUD, DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG)
3

25067 BUMPER, LOWER MOUNT SCREW

BUMPER, LOWER MOUNT SCREW
4

10-898831 SCREW, (.500-20 x 6.00), LOWER MOUNT

SCREW, (.500-20 x 6.00), LOWER MOUNT
5

77327 MOUNT, LOWER

MOUNT, LOWER
6

12-49339 WASHER, (.8125), LOWER MOUNT SCREW

WASHER, (.8125), LOWER MOUNT SCREW
7

11-25096 NUT, LOWER MOUNST SCREW

NUT, LOWER MOUNST SCREW
8

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground
9

54-8M0036782 CLAMP, LOWER MOUNT

CLAMP, LOWER MOUNT
10

10-66727 SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING

SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING
11

100-8M4500752 COVER, LOWER MOUNT CLAMP (BLACK)

COVER, LOWER MOUNT CLAMP (BLACK)
11

100-8M4500752 COVER, LOWER MOUNT CLAMP (GRAY)

COVER, LOWER MOUNT CLAMP (GRAY)
11

100-8M4500752 COVER, LOWER MOUNT CLAMP (OYSTER)

COVER, LOWER MOUNT CLAMP (OYSTER)
12

10-88417 SCREW, (#12-24 x .620), COVER ATTACHING

SCREW, (#12-24 x .620), COVER ATTACHING
13

11-35521 NUT, NYLON - COVER TO CLAMP SCREW

NUT, NYLON - COVER TO CLAMP SCREW
14

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground
15

10-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE

SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
16

12-73862 WASHER, GEAR HOUSING STUD

WASHER, GEAR HOUSING STUD
17

11-29489 NUT, GEAR HOUSIG STUD (CAP)

NUT, GEAR HOUSIG STUD (CAP)
18

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUD

WASHER, (.453 x .812 x .105) Stainless Steel, GEAR HOUSING STUD
19

11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUD

NUT, (.437-20) Stainless Steel, GEAR HOUSING STUD
20

19-64649 PLUG, DRIVE SHAFT HOUSING (BLACK & GRAY)

PLUG, DRIVE SHAFT HOUSING (BLACK & GRAY)
20

19-646491 PLUG, DRIVE SHAFT HOUSING (OYSTER)

PLUG, DRIVE SHAFT HOUSING (OYSTER)
21

89743 TUBE, Exhaust

TUBE, Exhaust
22

66350001 SEAL, EXHAUST TUBE - LOWER

SEAL, EXHAUST TUBE - LOWER
23

86027 SEAL, EXHAUST TUBE - UPPER

SEAL, EXHAUST TUBE - UPPER
24

32-8M0042788 TUBE, Water, WATER (LONG SHAFT)

TUBE, Water, WATER (LONG SHAFT)
24

32-8M0042790 TUBE, WATER (EXTRA LONG SHAFT)

TUBE, WATER (EXTRA LONG SHAFT)
25

27-991734 GASKET, DRIVE SHAFT HOUSING TO PLATE

GASKET, DRIVE SHAFT HOUSING TO PLATE
26

41945A6 PLATE ASSEMBLY, DRIVE SHAFT HOUSING

PLATE ASSEMBLY, DRIVE SHAFT HOUSING
27

707482 SEAL, BRACKET (BLACK & GRAY)

SEAL, BRACKET (BLACK & GRAY)
28

68011 BRACKET, SEAL RETAINING (BLACK & GRAY)

BRACKET, SEAL RETAINING (BLACK & GRAY)
29

10-48408 SCREW, (#10-16 x .500), BRACKET TO PLATE (BLACK & GRAY)

SCREW, (#10-16 x .500), BRACKET TO PLATE (BLACK & GRAY)
30

17-43044 PIN, Dowel, LOCATING

PIN, Dowel, LOCATING
31

26-38970 SEAL, WATER TUBE

SEAL, WATER TUBE
32

10-90192 SCREW, (.250-20 x .750) Stainless Steel, EXTENSION TO PLATE

SCREW, (.250-20 x .750) Stainless Steel, EXTENSION TO PLATE
33

27-991772 GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE

GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE
34

12-20553 WASHER, POWER HEAD STUD

WASHER, POWER HEAD STUD
35

11-69254 NUT, POWER HEAD STUD

NUT, POWER HEAD STUD
36

879288T71 EXTENSION, EXHAUST

EXTENSION, EXHAUST
36

78148A1 SPACER ASSEMBLY (EXTRA LONG)

SPACER ASSEMBLY (EXTRA LONG)
36

17-43044 PIN, Dowel, LOCATING - SPACER - (EXTRA LONG)

PIN, Dowel, LOCATING - SPACER - (EXTRA LONG)
-

27-90484A88 GASKET SET

GASKET SET
