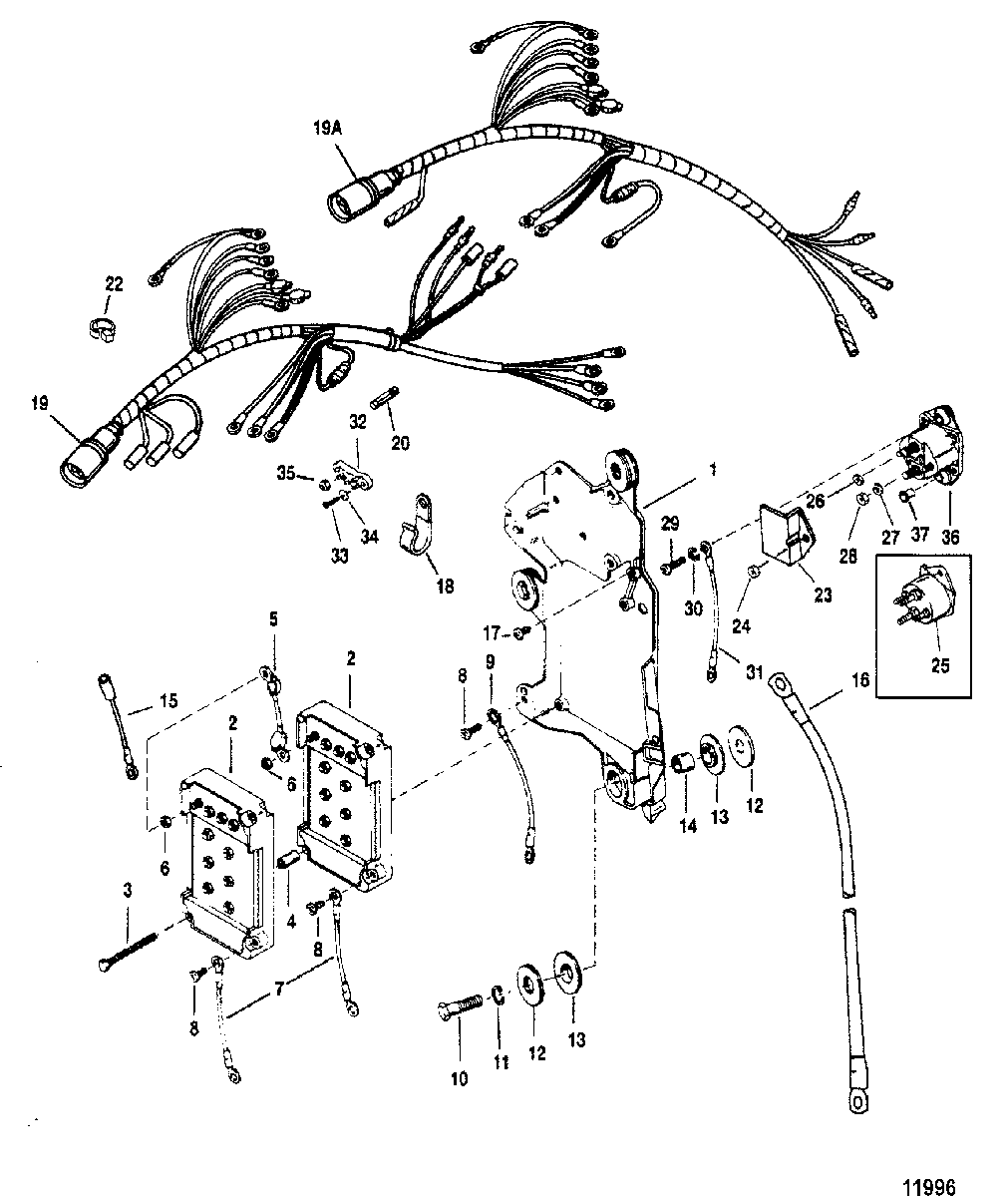

WIRING HARNESS/STARTER SOLENOID для Mariner - MAGNUM III 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1434292 IGNITION PLATEIGNITION PLATE
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-13669 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
423-94453 BUSHINGBUSHING
-
584-62310A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
784-60871A10 WIRE ASSEMBLYWIRE ASSEMBLY
-
810-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
984-65999A3 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1010-60411 SCREW, (1.25)SCREW, (1.25)
-
1113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1212-36042 WASHERWASHER
-
1312-67264 WASHER, (Rubber)WASHER, (Rubber)
-
1423-67268 BUSHINGBUSHING
-
1584-91865A1 CABLE ASSEMBLY (3" - WHITE/BLACK)CABLE ASSEMBLY (3" - WHITE/BLACK)
-
1584-88528A2 CABLE ASSEMBLY (6" - RED/WHITE)CABLE ASSEMBLY (6" - RED/WHITE)
-
1684-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1684-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
1710-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
1854-814634 CLAMP (OLD DESIGN)CLAMP (OLD DESIGN)
-
19A84-826730A4 HARNESS ASSEMBLY, Engine Wiring
SN# 0G201875 & UpHARNESS ASSEMBLY, Engine Wiring
SN# 0G201875 & Up -
1984-96220A16 HARNESS ASSEMBLY, Engine Wiring
SN# 0G201874 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# 0G201874 & Below -
2088-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2385-78866 INSULATORINSULATOR
-
2411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2589-853654A1 SOLENOID ASSEMBLY, Starter (DESIGN I)SOLENOID ASSEMBLY, Starter (DESIGN I)
-
2611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2811-68292 NUT, (.312-18)NUT, (.312-18)
-
2910-455611 SCREW, (.250-20 x 1.12)
(USE With Reference 36)SCREW, (.250-20 x 1.12)
(USE With Reference 36) -
2910-31716 SCREW, (.250-20 x .620)
(Use with Reference 25)SCREW, (.250-20 x .620)
(Use with Reference 25) -
3013-26992 LOCKWASHER, (.250) Stainless Steel
(Use with Reference 25)LOCKWASHER, (.250) Stainless Steel
(Use with Reference 25) -
3184-65999A2 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
3286-194372 TERMINAL BLOCKTERMINAL BLOCK
-
3310-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
3412-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
3511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3689-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
DESIGN IISOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
DESIGN II -
3723-818968 BUSHING
DESIGN IIBUSHING
DESIGN II
