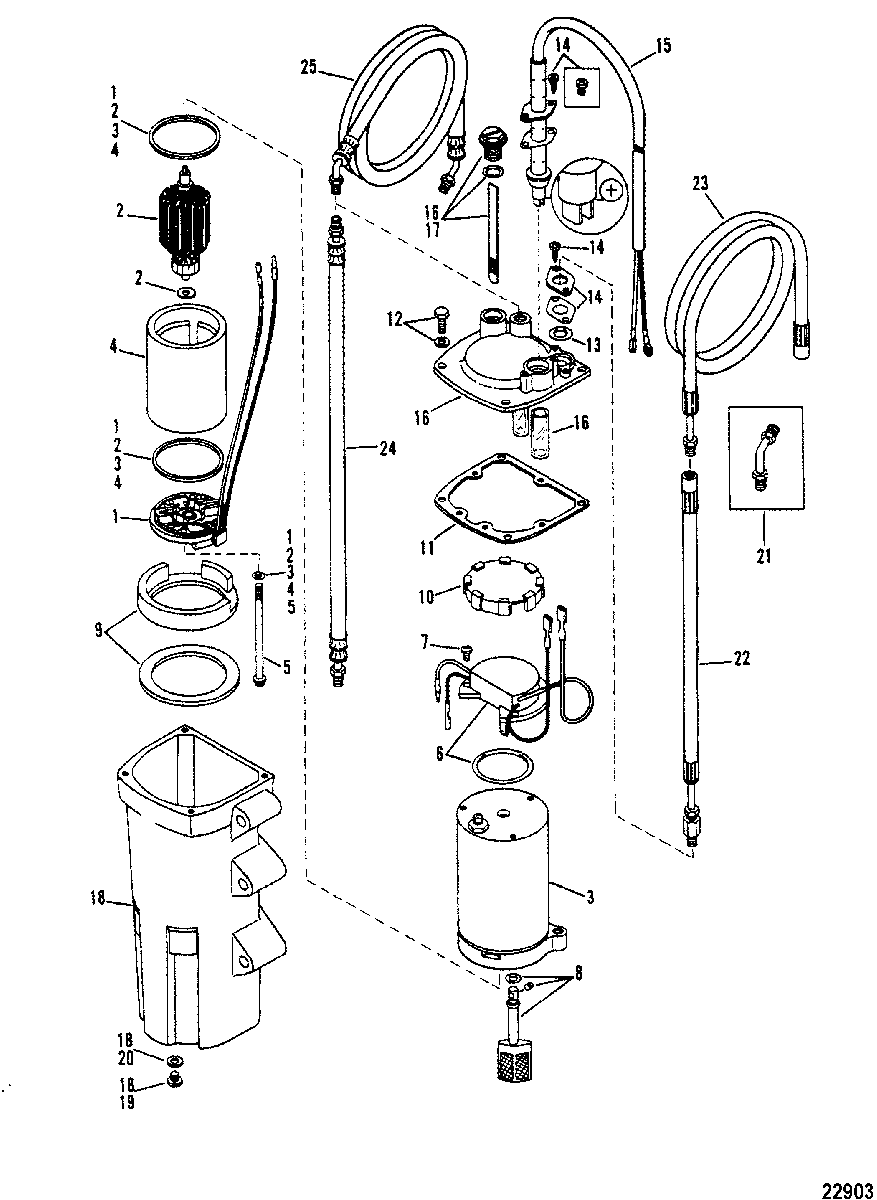

ACCUMULATOR для Mariner - MAGNUM III 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • -
    811290 ACCUMULATOR
    ACCUMULATOR
  • 1
    823059A1 END FRAME ASSEMBLY (W/WIRES)
    END FRAME ASSEMBLY (W/WIRES)
  • 2
    823061A1 ARMATURE ASSEMBLY
    ARMATURE ASSEMBLY
  • 3
    823062 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 4
    823063 SHELL/MAGNET ASSEMBLY
    SHELL/MAGNET ASSEMBLY
  • 5
    10-823064 BOLT KIT
    BOLT KIT
  • 6
    823065 CONTROLLER
    CONTROLLER
  • 7
    10-823066 SCREW KIT
    SCREW KIT
  • 8
    35-823067 FILTER KIT
    FILTER KIT
  • 9
    823068 RUBBER DAMPER
    RUBBER DAMPER
  • 10
    823070 RUBBER ISOLATOR
    RUBBER ISOLATOR
  • 11
    27-823071 GASKET, Reservoir
    GASKET, Reservoir
  • 12
    10-823072 SCREW KIT
    SCREW KIT
  • 13
    25-823074 O-RING
    O-RING
  • 14
    823075 PLATE, Retaining
    PLATE, Retaining
  • 15
    84-823077A1 HARNESS ASSEMBLY, Power
    HARNESS ASSEMBLY, Power
  • 16
    823078A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 17
    19-823080A1 FILL PLUG
    FILL PLUG
  • 18
    823082 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 19
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 20
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 21
    22-823087 FITTING
    SEE NOTE
    FITTING
    SEE NOTE
  • 22
    32-823069 SHORT HIGH PRESSURE LINE
    SEE NOTE
    SHORT HIGH PRESSURE LINE
    SEE NOTE
  • 23
    32-823073 LONG HIGH PRESSURE LINE
    SEE NOTE
    LONG HIGH PRESSURE LINE
    SEE NOTE
  • 24
    32-811524 SHORT LOW PRESSURE LINE
    SHORT LOW PRESSURE LINE
  • 25
    32-811525 LONG LOW PRESSURE LINE
    LONG LOW PRESSURE LINE
