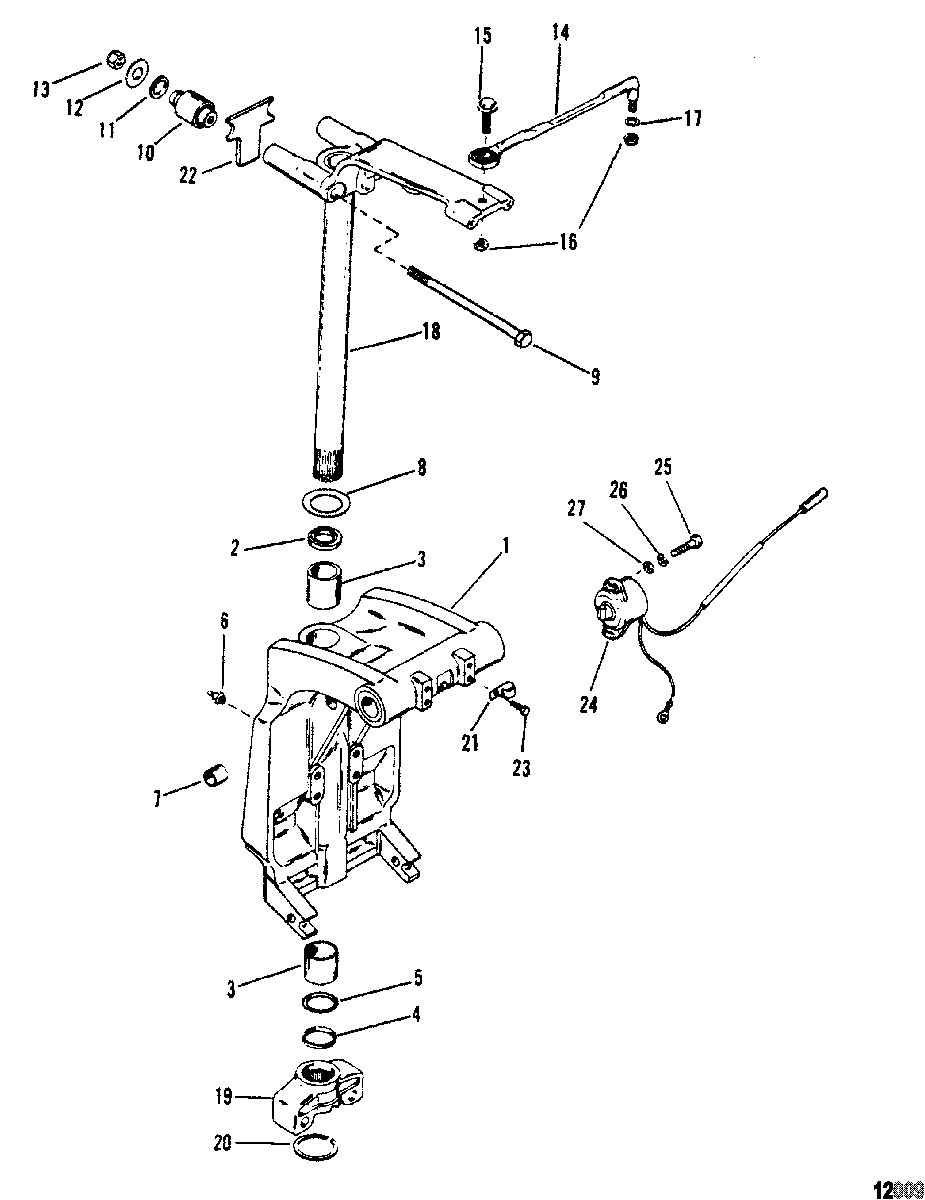

SWIVEL BRACKET AND STEERING ARM для Mariner - MAGNUM III 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (BLACK)SWIVEL BRACKET ASSEMBLY (BLACK)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
11499-8710A22 SWIVEL BRACKET ASSEMBLY (TRACKER)SWIVEL BRACKET ASSEMBLY (TRACKER)
-
226-87735 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
525-33504 O-RINGO-RING
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
910-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
1077326 MOUNT (LONG)(JET)MOUNT (LONG)(JET)
-
1077326 MOUNT (X-LONG - XR6/MAGNUM III/TRACKER)MOUNT (X-LONG - XR6/MAGNUM III/TRACKER)
-
1112-66921 WASHERWASHER
-
1212-78688 WASHERWASHER
-
1311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1492876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1510-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1611-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm (BLACK)SWIVEL PIN ASSEMBLY, Steering Arm (BLACK)
-
1817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm (GRAY)SWIVEL PIN ASSEMBLY, Steering Arm (GRAY)
-
1817-8M0132731 SWIVEL PIN ASSEMBLY (TRACKER)SWIVEL PIN ASSEMBLY (TRACKER)
-
19878182T01 YOKE ASSEMBLY, Bottom (BLACK)YOKE ASSEMBLY, Bottom (BLACK)
-
19878182T01 YOKE ASSEMBLY, Bottom (GRAY)YOKE ASSEMBLY, Bottom (GRAY)
-
19878182T01 YOKE, Bottom (TRACKER)YOKE, Bottom (TRACKER)
-
2053-67684 RING, RetainingRING, Retaining
-
2154-54457 J CLIP
SN# 0G201874 & BelowJ CLIP
SN# 0G201874 & Below -
228M0000516 BUMPERBUMPER
-
2310-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
248M0098273 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
2510-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
2613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
