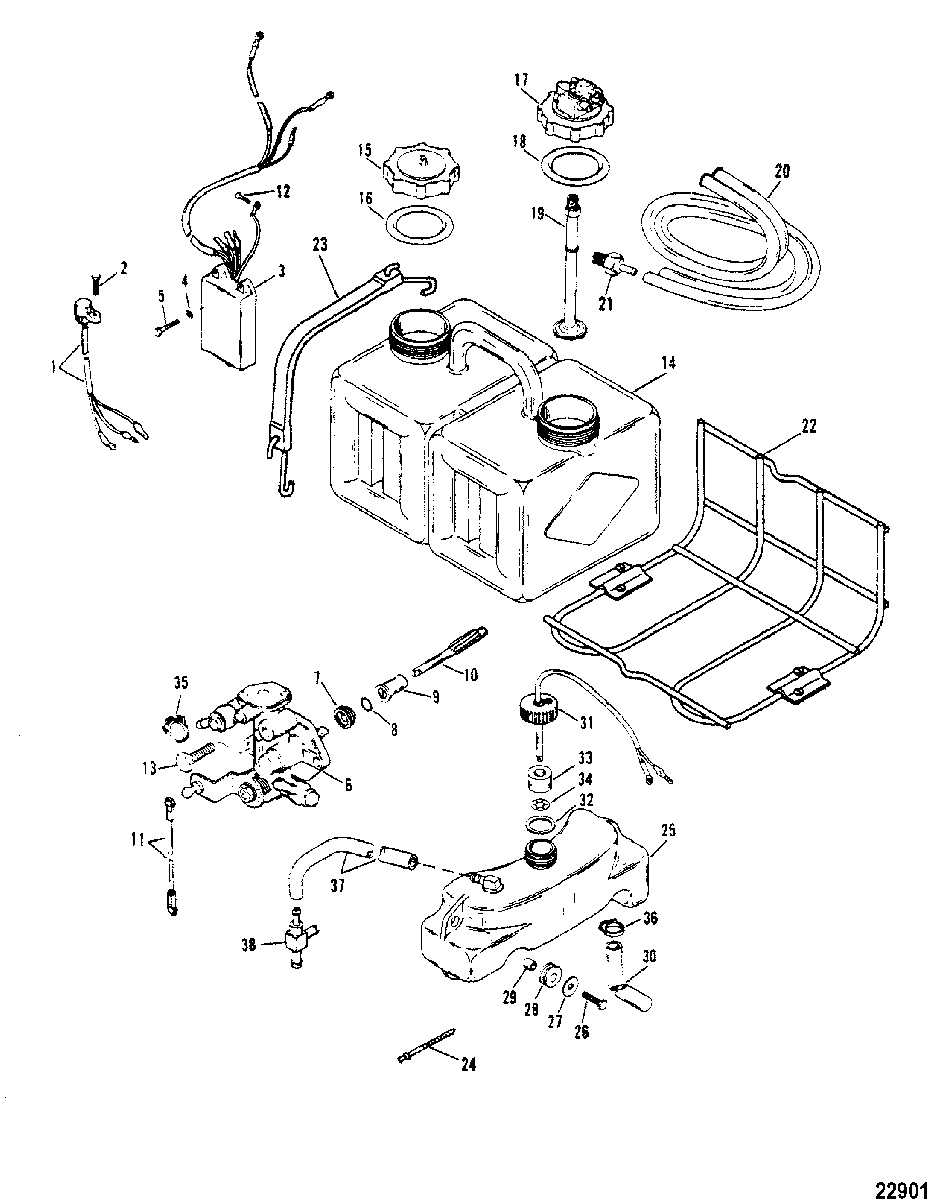

OIL INJECTION COMPONENTS для Mariner - MAGNUM III 0D082000 THRU 0G303045
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
341470A26 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-38833 WASHERWASHER
-
510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
6815698T PUMP, Oil (135/150)PUMP, Oil (135/150)
-
6815699T PUMP ASSEMBLY, Oil (XR6/MAGNUM III/175/200)PUMP ASSEMBLY, Oil (XR6/MAGNUM III/175/200)
-
78141032 BUSHING, WormBUSHING, Worm
-
825-11379 O-RINGO-RING
-
923-41429A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
1043-14563 GEAR, DrivenGEAR, Driven
-
111938516 LINKLINK
-
1210-42813 SCREW, (#10-32 X .380)SCREW, (#10-32 X .380)
-
1310-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1310-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
1625-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
17816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
1825-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
1932-99802 TUBETUBE
-
2032-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
2121-8781051 FITTING (CRANKCASE)FITTING (CRANKCASE)
-
2212335A1 BRACKET KITBRACKET KIT
-
2312323A1 CORD/HOOK KITCORD/HOOK KIT
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
25994436 RESERVOIR, OilRESERVOIR, Oil
-
2610-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2712-42118 WASHERWASHER
-
2825-42117 GROMMETGROMMET
-
2923-42116 BUSHINGBUSHING
-
3032-82381455 TUBING, (15.500 Inches Bulk) (Cut to 4.75 Inches)TUBING, (15.500 Inches Bulk) (Cut to 4.75 Inches)
-
3136-43300A9 CAP ASSEMBLYCAP ASSEMBLY
-
3227-43307T GASKETGASKET
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3554-415824 CLAMP
USE WHERE APPLICABLECLAMP
USE WHERE APPLICABLE -
3654-415823 CLAMP
USE WHERE APPLICABLECLAMP
USE WHERE APPLICABLE -
3732-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5.25 Inches)HOSE, (57.00 Inches Bulk) (Cut to 5.25 Inches)
-
3822-42425 TEETEE
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-812817R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & BelowPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & UpPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up -
-823434R97 POWERHEAD ASSEMBLY
(Tracker 150)POWERHEAD ASSEMBLY
(Tracker 150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
