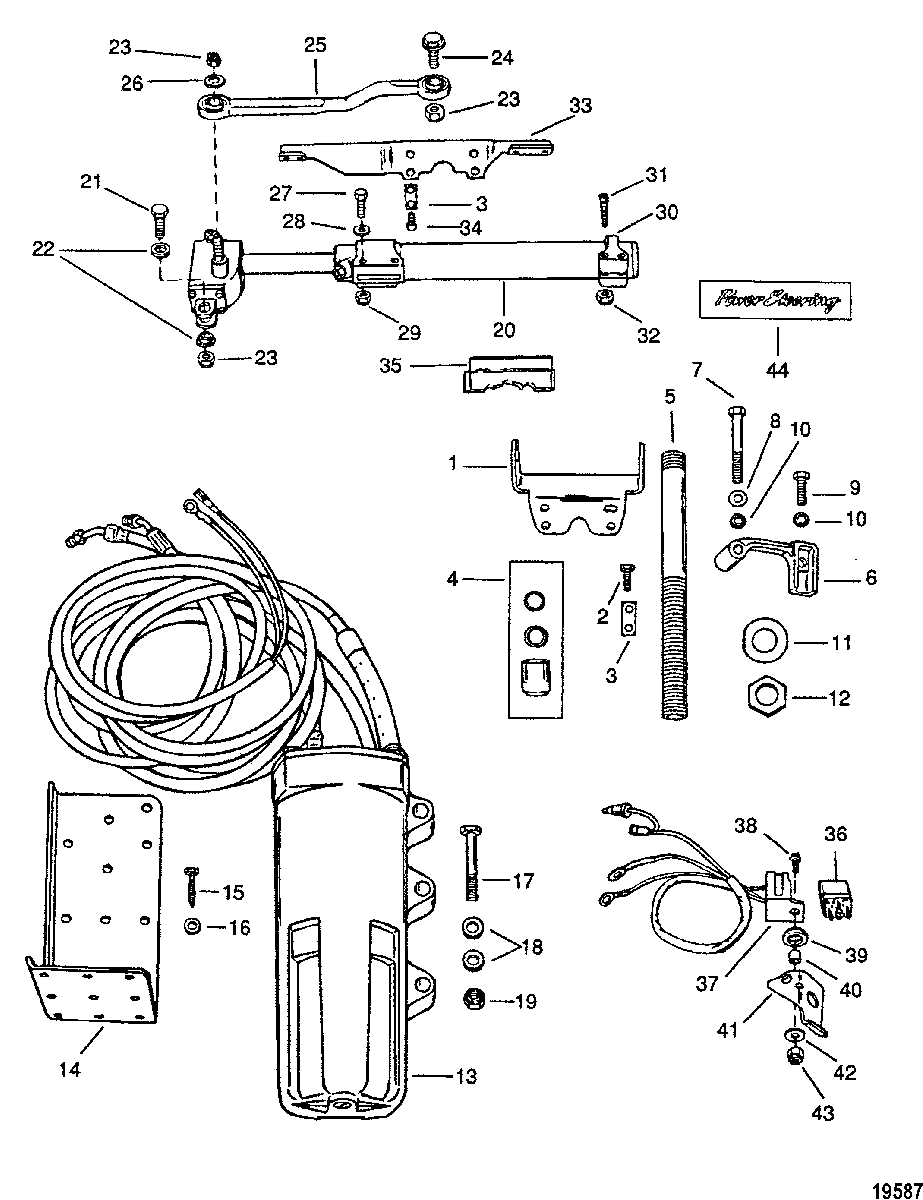

Power Steering Components для Mariner - MAGNUM II 0C239553 THRU 0D081999
-
№АртикулНазвание
-
117771 MOUNTMOUNT
-
210-59702 SCREW, (.250-28 x .875)SCREW, (.250-28 x .875)
-
388404 TAB WASHERTAB WASHER
-
419624A1 SEAL KITSEAL KIT
-
571565 TUBE-CABLE GUIDETUBE-CABLE GUIDE
-
617776 COUPLINGCOUPLING
-
710-817040 SCREW, (.375-24 x 2.75)SCREW, (.375-24 x 2.75)
-
812-34931 WASHER, (.406 x .734 x .063) SSWASHER, (.406 x .734 x .063) SS
-
910-856722 SCREWSCREW
-
1011-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1114-42100 TAB WASHERTAB WASHER
-
1211-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
13811290 ACCUMULATORACCUMULATOR
-
14817372 BRACKETBRACKET
-
1510-16862 SCREW, (.250-10 x 1.25)SCREW, (.250-10 x 1.25)
-
1612-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
1710-4000383 SCREW, (M10 x 70)SCREW, (M10 x 70)
-
1812-4002319 WASHERWASHER
-
1911-40140 NUT, (M10)NUT, (M10)
-
20828588A2 ACTUATORACTUATOR
-
2110-94319 SCREW, (.375-24 x 1.5)SCREW, (.375-24 x 1.5)
-
2223-17405 SPACERSPACER
-
2311-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
2410-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
2592876A4 LINK RODLINK ROD
-
2612-68300 WASHERWASHER
-
2710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2812-4002315 WASHERWASHER
-
2911-401386 NUT, (M6)NUT, (M6)
-
30811292 CLAMPCLAMP
-
3110-818182 SCREWSCREW
-
3211-400263 NUT, (M5 X 0.8)NUT, (M5 X 0.8)
-
33811291 BRACKETBRACKET
-
3410-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
3554-197491 CLAMPCLAMP
-
3687-18211 RELAY SWITCHRELAY SWITCH
-
3784-18244A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3810-18124 SCREW, (10-32 x .75)SCREW, (10-32 x .75)
-
3925-90329 GROMMETGROMMET
-
4023-309772 SPACERSPACER
-
41816994 BRACKETBRACKET
-
4212-42118 WASHERWASHER
-
4311-826709106 NUT, (#10-32)NUT, (#10-32)
-
4437-81563024 DECALDECAL
