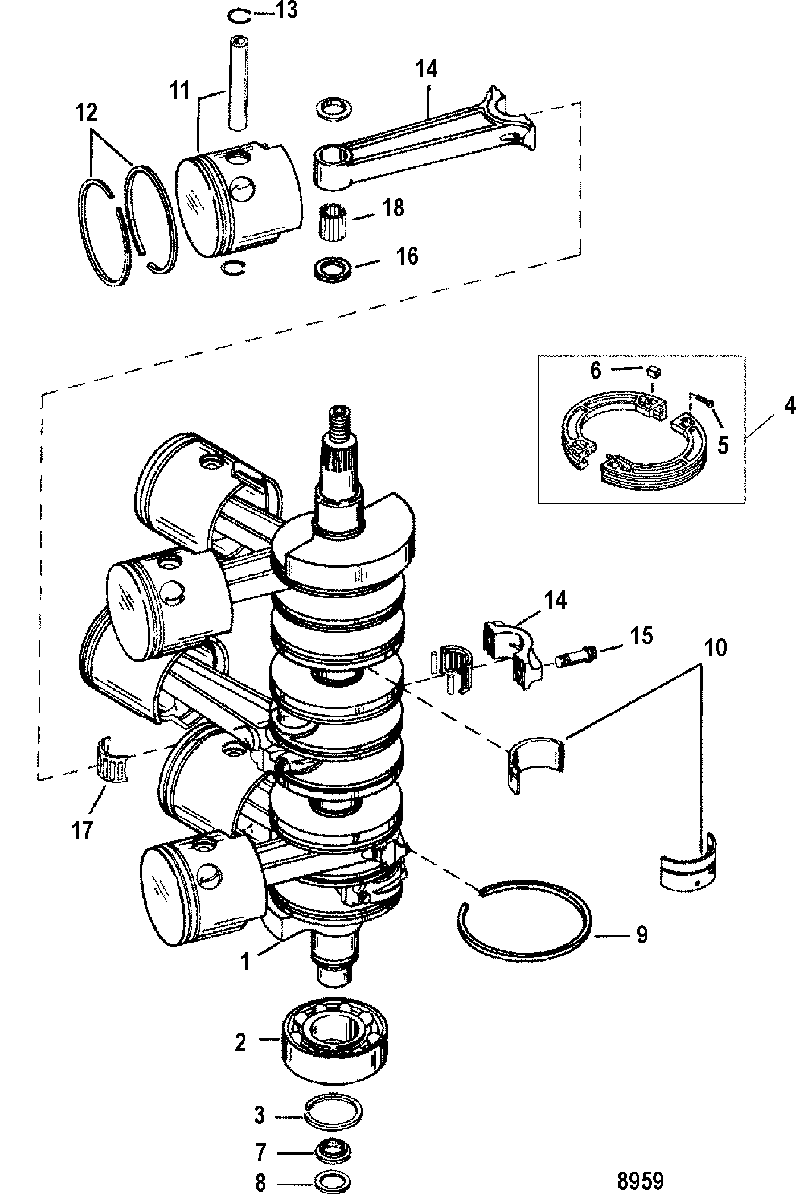

Crankshaft(Connecting Rod Forging # is 644-818141) для Mariner - MAGNUM II 0C239553 THRU 0D081999
-
№АртикулНазвание
-
1455-9536T4 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
353-67446 RINGRING
-
443-14513A09 GEAR KITGEAR KIT
-
510-813073 SCREW, (#6-32 x .620)SCREW, (#6-32 x .620)
-
611-813134 NUT, (#6-32 Special)NUT, (#6-32 Special)
-
754196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
865800 PACKINGPACKING
-
939-67377T RING, SEALING - CRANKSHAFTRING, SEALING - CRANKSHAFT
-
1031-16756A6 ROLLER BEARING, CRANKSHAFTROLLER BEARING, CRANKSHAFT
-
11765-7441T32 PISTON (STARBOARD-STANDARD)
(135/150)PISTON (STARBOARD-STANDARD)
(135/150) -
11765-7443A11 PISTON (STARBOARD-.015 O.S.)
(135/150)PISTON (STARBOARD-.015 O.S.)
(135/150) -
11765-7445T11 PISTON (STARBOARD-.030 OS.)
(135/150)PISTON (STARBOARD-.030 OS.)
(135/150) -
11765-7442T32 PISTON (PORT-STANDARD)
(135/150)PISTON (PORT-STANDARD)
(135/150) -
11765-7444A11 PISTON (PORT-.015 O.S.)
(135/150)PISTON (PORT-.015 O.S.)
(135/150) -
11765-7446A11 PISTON (PORT-.030 O.S.)
(135/150)PISTON (PORT-.030 O.S.)
(135/150) -
11785-9738T9 PISTON (STARBOARD-STANDARD)
(200)PISTON (STARBOARD-STANDARD)
(200) -
11785-9738T10 PISTON (STARBOARD-.015 O.S.)
(200)PISTON (STARBOARD-.015 O.S.)
(200) -
11785-9737T9 PISTON (PORT-STANDARD)
(200)PISTON (PORT-STANDARD)
(200) -
11785-9737A10 PISTON (PORT-.015 O.S.)
(200)PISTON (PORT-.015 O.S.)
(200) -
1239-93481A12 PISTON RING (STANDARD)
(135/150)PISTON RING (STANDARD)
(135/150) -
1239-78918A4 PISTON RING (.015 O.S.)
(135/150)PISTON RING (.015 O.S.)
(135/150) -
1239-85636A4 PISTON RING (.030 O.S.)
(135/150)PISTON RING (.030 O.S.)
(135/150) -
1239-815515A12 PISTON RING (STANDARD)
(200)PISTON RING (STANDARD)
(200) -
1239-815268A4 PISTON RING (.015 O.S.)
(200)PISTON RING (.015 O.S.)
(200) -
1353-857196 RING, LockRING, Lock
-
14644-818141A13 CONNECTING ROD KITCONNECTING ROD KIT
-
1510-763491 SCREW, (.312-24 x .875), CONNECTING RODSCREW, (.312-24 x .875), CONNECTING ROD
-
1612-8M0012298 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
1731-8M0045428 BEARING KITBEARING KIT
-
1829-822553 NEEDLE BEARING, PISTON ENDNEEDLE BEARING, PISTON END
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
