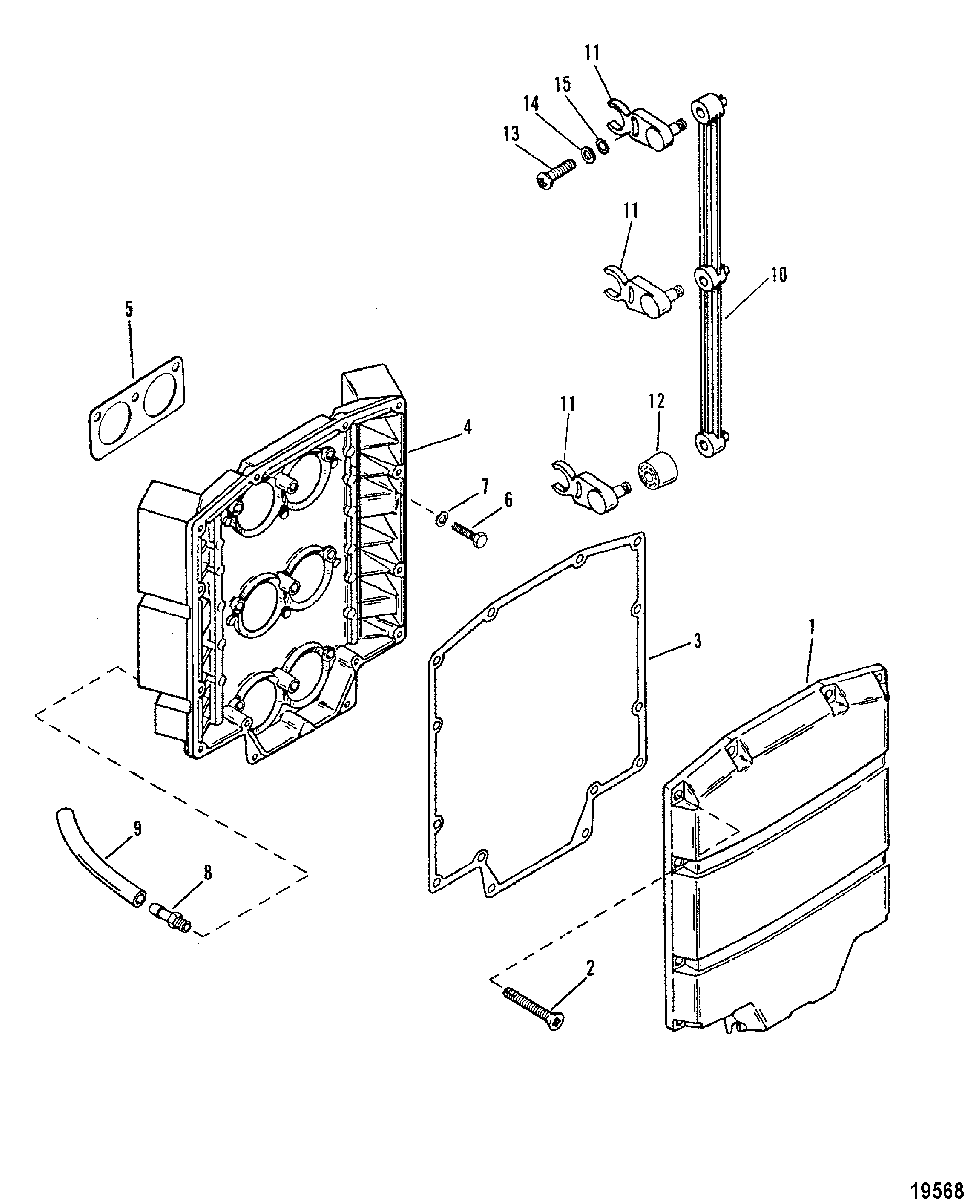

Choke Plate and Throttle Levers для Mariner - MAGNUM II 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    817495A1 COVER, SOUND ATTENUATOR
    COVER, SOUND ATTENUATOR
  • 2
    10-48409 SCREW, (#10-16 x .625), COVER TO CHOKE PLATE
    SCREW, (#10-16 x .625), COVER TO CHOKE PLATE
  • 3
    27-188891 GASKET, SOUND ATTENUATOR
    GASKET, SOUND ATTENUATOR
  • 4
    817495A1 SOUNG ATTENUATOR PLATE
    SOUNG ATTENUATOR PLATE
  • 5
    27-892211 GASKET, ATTENUATOR TO CARBURETOR
    GASKET, ATTENUATOR TO CARBURETOR
  • 6
    10-68000 SCREW, (.24-28 X 1.00), CHOKE PLATE TO CARBURETOR
    SCREW, (.24-28 X 1.00), CHOKE PLATE TO CARBURETOR
  • 7
    12-20583 WASHER, CHOKE PLATE SCREW
    WASHER, CHOKE PLATE SCREW
  • 8
    21-64871A2 CHECK VALVE
    CHECK VALVE
  • 9
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 10
    18180 THROTTLE LINK
    THROTTLE LINK
  • 11
    18181 LINK
    LINK
  • 12
    18178 ROLLER
    ROLLER
  • 13
    10-87926 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 14
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 15
    13-69432 LOCKWASHER, (#10 External)
    LOCKWASHER, (#10 External)
