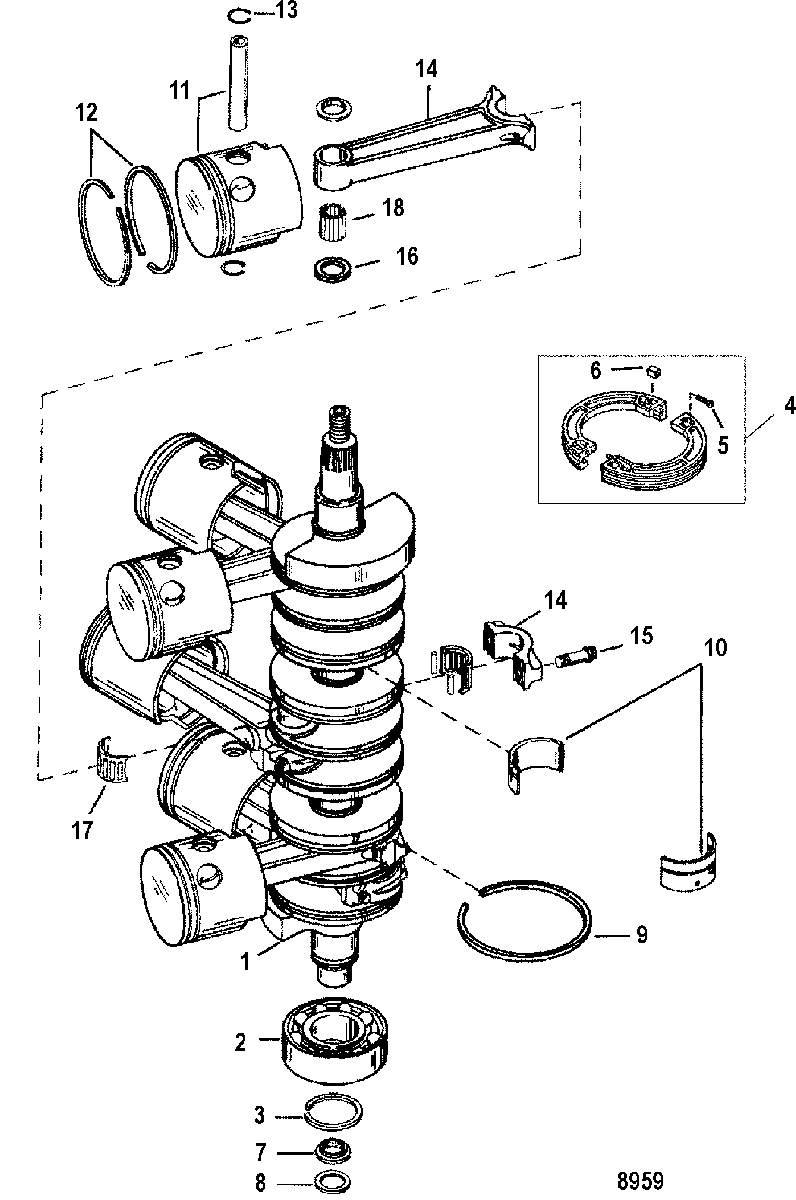

Crankshaft(Connecting Rod Forging # is 636-8118) для Mariner - MAGNUM II 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    455-9536T4 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball, CRANKSHAFT (LOWER)
    BEARING, Ball, CRANKSHAFT (LOWER)
  • 3
    53-67446 RING, BALL BEARING
    RING, BALL BEARING
  • 4
    43-14513A09 GEAR KIT
    GEAR KIT
  • 5
    10-813073 SCREW, (#6-32 x .620)
    SCREW, (#6-32 x .620)
  • 6
    11-813134 NUT, (#6-32 Special)
    NUT, (#6-32 Special)
  • 7
    54196A6 CARRIER ASSEMBLY, SEAL
    CARRIER ASSEMBLY, SEAL
  • 8
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 9
    39-67377T RING, SEALING - CRANKSHAFT
    RING, SEALING - CRANKSHAFT
  • 10
    31-16756A6 ROLLER BEARING, CRANKSHAFT
    ROLLER BEARING, CRANKSHAFT
  • 11
    765-7441T36 PISTON (STARBOARD-STANDARD)
    (135/150)
    PISTON (STARBOARD-STANDARD)
    (135/150)
  • 11
    765-7443A12 PISTON (STARBOARD-.015 O.S.)
    (135/150)
    PISTON (STARBOARD-.015 O.S.)
    (135/150)
  • 11
    765-7445A12 PISTON (STARBOARD-.030 OS.)
    (135/150)
    PISTON (STARBOARD-.030 OS.)
    (135/150)
  • 11
    765-7442T36 PISTON (PORT-STANDARD)
    (135/150)
    PISTON (PORT-STANDARD)
    (135/150)
  • 11
    765-7444A12 PISTON (PORT-.015 O.S.)
    (135/150)
    PISTON (PORT-.015 O.S.)
    (135/150)
  • 11
    765-7446T12 PISTON (PORT-.030 O.S.)
    (135/150)
    PISTON (PORT-.030 O.S.)
    (135/150)
  • 11
    766-8666T42 PISTON ASSEMBLY (STARBOARD-STANDARD)
    (XR4/MAGNUM II/175)
    PISTON ASSEMBLY (STARBOARD-STANDARD)
    (XR4/MAGNUM II/175)
  • 11
    766-8666A43 PISTON ASSEMBLY, (Starboard) (015 O.S.)
    (XR4/MAGNUM II/ 175)
    PISTON ASSEMBLY, (Starboard) (015 O.S.)
    (XR4/MAGNUM II/ 175)
  • 11
    766-8667T42 PISTON ASSEMBLY (PORT-STANDARD)
    (XR4/MAGNUM II/ 175)
    PISTON ASSEMBLY (PORT-STANDARD)
    (XR4/MAGNUM II/ 175)
  • 11
    766-8667A43 PISTON ASSEMBLY, (Port) (.015 O.S.)
    (XR4/MAGNUM II/ 175)
    PISTON ASSEMBLY, (Port) (.015 O.S.)
    (XR4/MAGNUM II/ 175)
  • 11
    785-9738T4 PISTON (STARBOARD-STANDARD)
    (200)
    PISTON (STARBOARD-STANDARD)
    (200)
  • 11
    785-9738A5 PISTON (STARBOARD-.015 O.S.)
    (200)
    PISTON (STARBOARD-.015 O.S.)
    (200)
  • 11
    785-9737T4 PISTON (PORT-STANDARD)
    (200)
    PISTON (PORT-STANDARD)
    (200)
  • 11
    785-9737A5 PISTON (PORT-.015 O.S.)
    (200)
    PISTON (PORT-.015 O.S.)
    (200)
  • 12
    39-93481A12 PISTON RING (STANDARD)
    (135/150)
    PISTON RING (STANDARD)
    (135/150)
  • 12
    39-78918A4 PISTON RING (.015 O.S.)
    (135/150)
    PISTON RING (.015 O.S.)
    (135/150)
  • 12
    39-85636A4 PISTON RING (.030 O.S.)
    (135/150)
    PISTON RING (.030 O.S.)
    (135/150)
  • 12
    39-18487A12 PISTON RING ASSEMBLY (STANDARD)
    (XR4/MAGNUM II/175)
    PISTON RING ASSEMBLY (STANDARD)
    (XR4/MAGNUM II/175)
  • 12
    39-815267A4 PISTON RING ASSEMBLY (.015 O.S.)
    (XR4/MAGNUM II/175)
    PISTON RING ASSEMBLY (.015 O.S.)
    (XR4/MAGNUM II/175)
  • 12
    39-815515A12 PISTON RING (STANDARD)
    (200)
    PISTON RING (STANDARD)
    (200)
  • 12
    39-815268A4 PISTON RING (.015 O.S.)
    (200)
    PISTON RING (.015 O.S.)
    (200)
  • 13
    53-857196 RING, Lock
    RING, Lock
  • 14
    636-8119A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    10-93886 SCREW, (.3125-28 X .875), CONNECTING ROD
    SCREW, (.3125-28 X .875), CONNECTING ROD
  • 16
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 17
    31-8M0045428 BEARING KIT
    BEARING KIT
  • 18
    29-67483 NEEDLE BEARING, PISTON END
    NEEDLE BEARING, PISTON END
  • -
    27-815791A92 GASKET SET
    (135/150)
    GASKET SET
    (135/150)
  • -
    27-815791A92 GASKET SET
    (XR4/Magnum II/175)
    GASKET SET
    (XR4/Magnum II/175)
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
