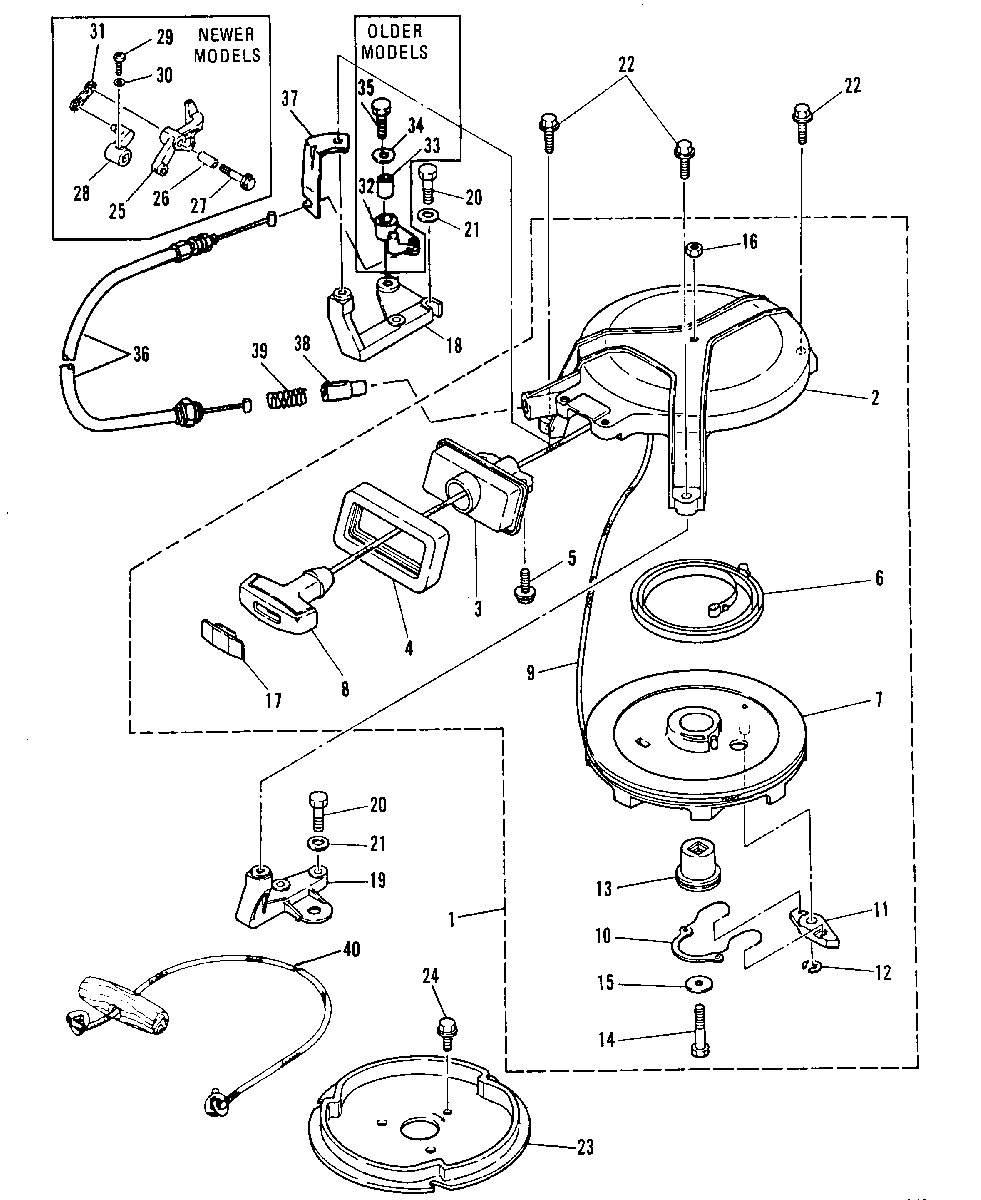

RECOIL STARTER для Mariner - 8C 6G1-305951 THRU 316711

  • №
    Артикул
    Название
  • 1
    2169-9300M STARTER ASS'Y
    STARTER ASS'Y
  • 2
    2169-9301M CASE, STARTER
    CASE, STARTER
  • 3
    11422M GUIDE, STARTER ROPE
    GUIDE, STARTER ROPE
  • 4
    11423M SEAL
    SEAL
  • 5
    10-91686M BOLT
    BOLT
  • 6
    24-95484M SPRING
    SPRING
  • 7
    50-11424M DRUM, SHEAVE
    DRUM, SHEAVE
  • 8
    95468M HANDLE, STARTER
    HANDLE, STARTER
  • 9
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 10
    24-11425M SRPING, PAWL DRIVE
    SRPING, PAWL DRIVE
  • 11
    83252M PAWL, DRIVE
    PAWL, DRIVE
  • 12
    53-84895M SNAP RING
    SNAP RING
  • 13
    23-11426M BUSHING
    BUSHING
  • 14
    10-83285M BOLT
    BOLT
  • 15
    12-92564M WASHER
    WASHER
  • 16
    11-82389M NUT
    NUT
  • 17
    814491A1 COVER
    COVER
  • 18
    11427M BRACKET
    BRACKET
  • 19
    11428M BRACKET
    BRACKET
  • 20
    10-84058M BOLT
    BOLT
  • 21
    12-82214M WAHSER
    WAHSER
  • 22
    10-91674M BOLT
    BOLT
  • 23
    11429M PULLEY, STARTER
    PULLEY, STARTER
  • 24
    10-11430M BOLT
    BOLT
  • 25
    11943M ARM
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    ARM
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 26
    23-11944M COLLAR
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    COLLAR
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 27
    10-11945M BOLT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    BOLT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 28
    11946M LEVER SHIFT ROD
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    LEVER SHIFT ROD
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 29
    10-83356M SCREW
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    SCREW
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 30
    12-82211M WASHER
    (8MUL-6G1700427) AND ABOVE SERIAL ML306535-0Z999999
    WASHER
    (8MUL-6G1700427) AND ABOVE SERIAL ML306535-0Z999999
  • 31
    11947M LINK
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    LINK
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 32
    11431M ARM
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    ARM
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 33
    23-81974M COLLAR
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    COLLAR
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 34
    12-83769M WASHER
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    WASHER
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 35
    10-84058M BOLT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    BOLT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 36
    11941M CABLE, STARTER STOP
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    CABLE, STARTER STOP
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 36
    11432M CABLE, STARTER STOP
    ( 8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    CABLE, STARTER STOP
    ( 8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 37
    11942M BRACKET
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    BRACKET
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 37
    11433M BRACKET
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    BRACKET
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 38
    81106M PLUNGER, STARTER STOP
    PLUNGER, STARTER STOP
  • 39
    24-82079M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 40
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
