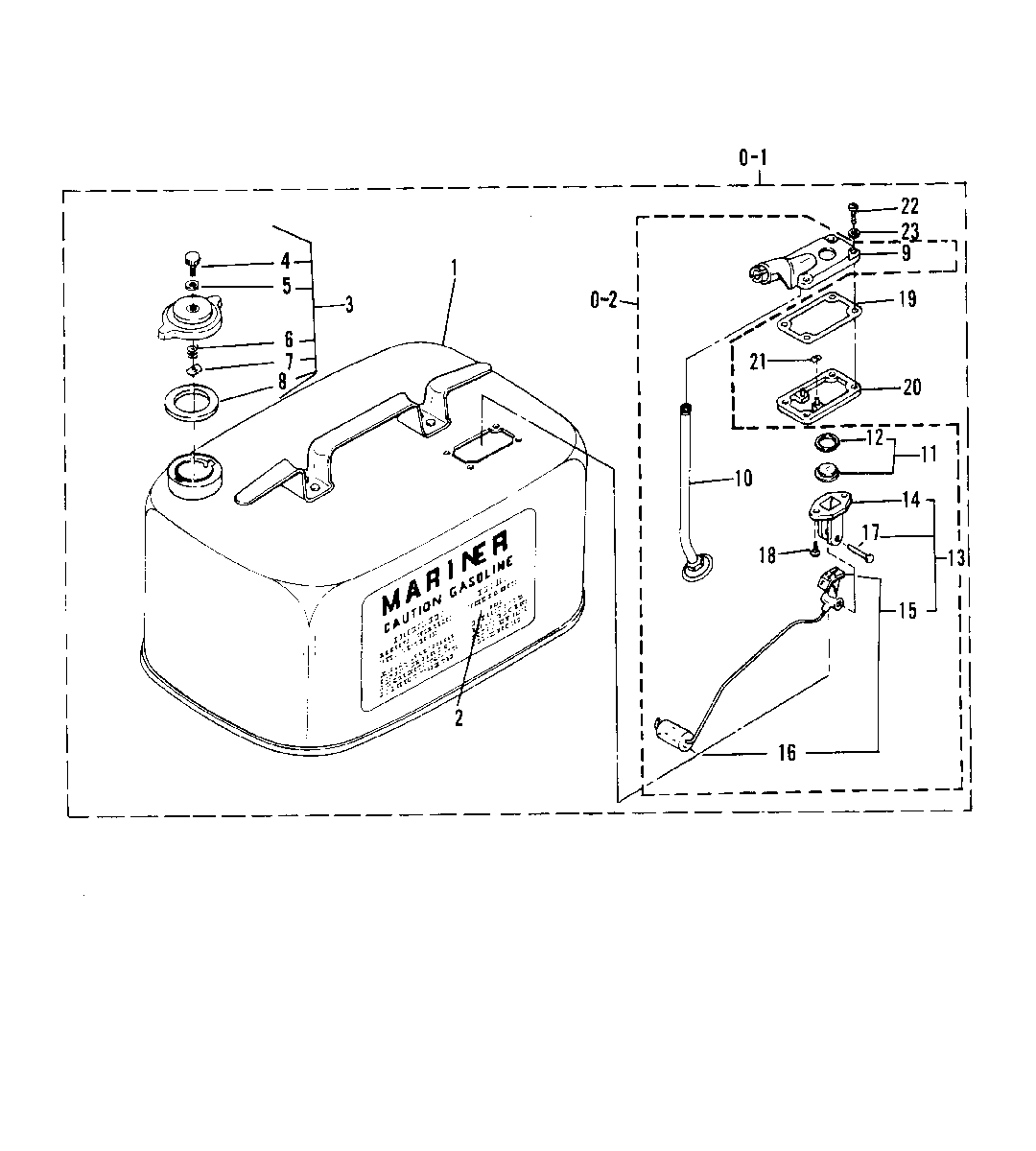

FUEL TANK ASSEMBLY для Mariner - 8C 6G1-305951 THRU 316711

  • №
    Артикул
    Название
  • 0-1
    1259-812410A1 FUEL TANK, COMPLETE
    FUEL TANK, COMPLETE
  • 1
    1259-812410A1 FUEL TANK
    FUEL TANK
  • 2
    37-13921 DECAL, FUEL TANK
    DECAL, FUEL TANK
  • 3
    36-18962M FILLER CAP ASSEMBLY
    FILLER CAP ASSEMBLY
  • 4
    10-25575 SCREW, VENT-FILLER CAP
    SCREW, VENT-FILLER CAP
  • 5
    12-49221 WASHER,VENT SCREW
    WASHER,VENT SCREW
  • 6
    24-22227 SPRING, TENSION-VENT SCREW
    SPRING, TENSION-VENT SCREW
  • 7
    11-28587 NUT, SPEED-SPRING RETAINER
    NUT, SPEED-SPRING RETAINER
  • 8
    27-41065 GASKET, FILLER CAP TO FUEL TANK
    GASKET, FILLER CAP TO FUEL TANK
  • 0-2
    64841A1 CONNECTOR/GAUGE ASS'Y, COMPLETE
    CONNECTOR/GAUGE ASS'Y, COMPLETE
  • 9
    17792A1 COVER, FUEL TANK
    COVER, FUEL TANK
  • 10
    32-75239 TUBE
    TUBE
  • 11
    98542A1 LENS ASSEMBLY, FUEL GAUGE
    LENS ASSEMBLY, FUEL GAUGE
  • 12
    98542A1 GASKET, FUEL GAUGE LENS
    GASKET, FUEL GAUGE LENS
  • 13
    28897A2 FUEL GAUGE ASSEMBLY, COMPLETE
    FUEL GAUGE ASSEMBLY, COMPLETE
  • 14
    20430 RETAINER, FUEL GAUGE
    RETAINER, FUEL GAUGE
  • 15
    28897A1 INDICATOR AN DFLOAT ASSEMBLY
    INDICATOR AN DFLOAT ASSEMBLY
  • 16
    99274 FLOAT, FUEL GAUGE
    FLOAT, FUEL GAUGE
  • 17
    17-20426 RIVET, INDICATOR TO RETAINER
    RIVET, INDICATOR TO RETAINER
  • 18
    10-62568 SCREW, RETAINER TO FUEL TANK COVER
    SCREW, RETAINER TO FUEL TANK COVER
  • 19
    27-28862 GASKET, COVER ASSEMBLY TO FRAME
    GASKET, COVER ASSEMBLY TO FRAME
  • 20
    28860 FRAME, RETAINING-FUEL TANK COVER
    FRAME, RETAINING-FUEL TANK COVER
  • 21
    11-28903 FASTENER, RETAINING FRAME TO FUEL TANK
    FASTENER, RETAINING FRAME TO FUEL TANK
  • 22
    10-20411 SCREW, FUEL TANK COVER TO FUEL TANK
    SCREW, FUEL TANK COVER TO FUEL TANK
  • 23
    12-29070 WASHER, FUEL TANK COVER FASTENING SCREW
    WASHER, FUEL TANK COVER FASTENING SCREW
