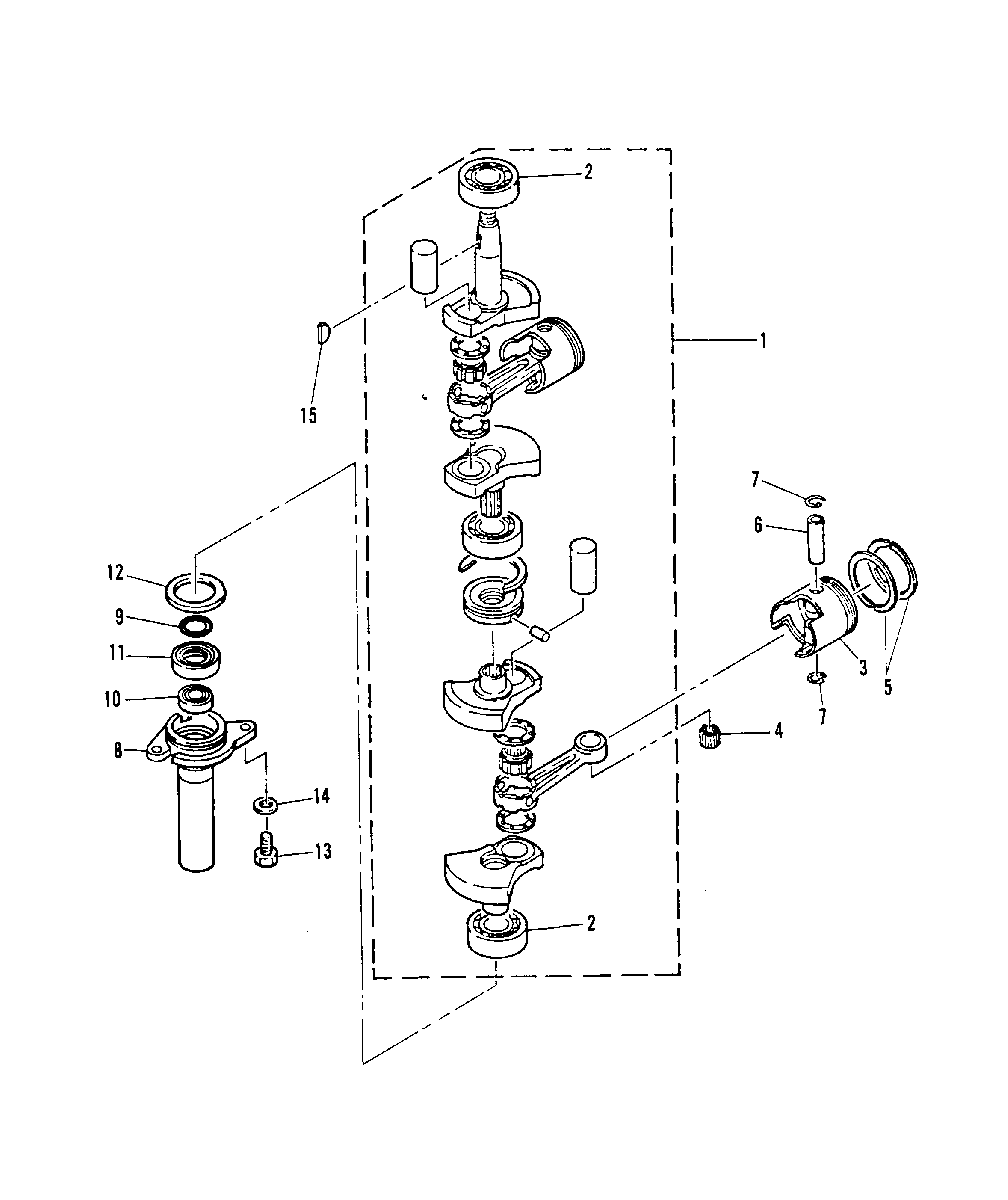

CRANKSHAFT AND PISTON для Mariner - 8C 6G1-305951 THRU 316711

  • №
    Артикул
    Название
  • 1
    463-9305M CRANKSHAFT ASS'Y
    CRANKSHAFT ASS'Y
  • 2
    30-18859T BEARING
    BEARING
  • 3
    761-9306M PISTON
    PISTON
  • 4
    31-91721M BEARING
    BEARING
  • 5
    39-11462T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 6
    41-80005M PIN, PISTON
    PIN, PISTON
  • 7
    53-82342M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 8
    11463M HOUSING, OIL SEAL LOWER
    HOUSING, OIL SEAL LOWER
  • 9
    25-82276M O-RING
    O-RING
  • 10
    26-14202M OIL SEAL
    SERIAL 00006037-09999999
    OIL SEAL
    SERIAL 00006037-09999999
  • 10
    26-11464M OIL SEAL
    SERIAL 00000000-00006036
    OIL SEAL
    SERIAL 00000000-00006036
  • 11
    26-18843M OIL SEAL, LOWER
    SERIAL 00006037-09999999
    OIL SEAL, LOWER
    SERIAL 00006037-09999999
  • 11
    26-14195M OIL SEAL, LOWER
    SERIAL 00000000-00006036
    OIL SEAL, LOWER
    SERIAL 00000000-00006036
  • 12
    23-81841M WASHER
    WASHER
  • 13
    10-826957M BOLT
    BOLT
  • 14
    12-82214M WASHER
    WASHER
  • 15
    28-893761 KEY, FLYWHEEL
    KEY, FLYWHEEL
