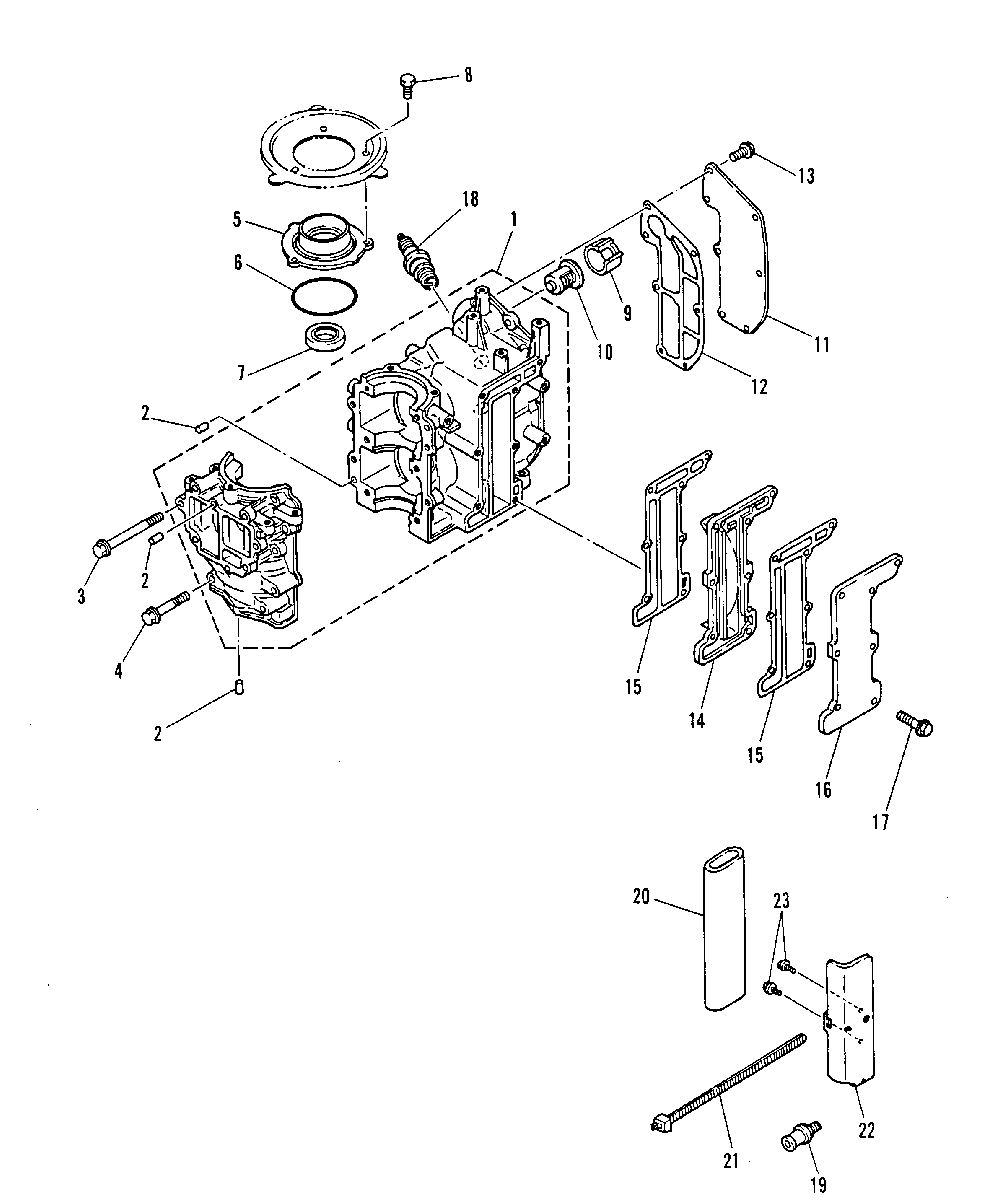

CRANKCASE AND CYLINDER HEAD для Mariner - 8C 6G1-305951 THRU 316711

  • №
    Артикул
    Название
  • 1
    968-9304M CRANKCASE ASS'Y
    CRANKCASE ASS'Y
  • 2
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 3
    10-11448M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 4
    10-11449M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 5
    14201M HOUSING, OIL SEAL
    SERIAL 00001938-09999999
    HOUSING, OIL SEAL
    SERIAL 00001938-09999999
  • 5
    14201M HOUSING, OIL SEAL
    AND BELOW SERIAL 00000000-00001938
    HOUSING, OIL SEAL
    AND BELOW SERIAL 00000000-00001938
  • 6
    25-11451M O-RING
    O-RING
  • 7
    26-14195M OIL SEAL
    SERIAL 00006037-09999999
    OIL SEAL
    SERIAL 00006037-09999999
  • 7
    26-14195M OIL SEAL
    SERIAL 00000000-00006036
    OIL SEAL
    SERIAL 00000000-00006036
  • 8
    10-826957M BOLT
    BOLT
  • 9
    11452M COLLAR
    COLLAR
  • 10
    11919001 THERMOSTAT
    (8MUL-6G1-700427 ) AND ABOVE SERIAL 00000557-09999999
    THERMOSTAT
    (8MUL-6G1-700427 ) AND ABOVE SERIAL 00000557-09999999
  • 10
    83282M THERMOSTAT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    THERMOSTAT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 11
    11453M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 12
    27-11454M GASKET, HEAD COVER
    GASKET, HEAD COVER
  • 13
    10-91686M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 14
    11455M INNER COVER, EXHAUST
    INNER COVER, EXHAUST
  • 15
    27-11456 GASKET, EXHAUST INNER COVER
    GASKET, EXHAUST INNER COVER
  • 16
    11457M OUTER COVER, EXHAUST
    OUTER COVER, EXHAUST
  • 17
    10-11945M BOLT, WITH WASHER
    BOLT, WITH WASHER
  • 18
    33-8M0114740 SPARK PLUG (B7HS10)NGK
    SPARK PLUG (B7HS10)NGK
  • 18
    33-8M0114738 SPARK PLUG (B6HS10)NGK
    SPARK PLUG (B6HS10)NGK
  • 19
    22-8M0121335 PLUG, WATER CHECK
    PLUG, WATER CHECK
  • 20
    91-803581 TOOL KIT
    TOOL KIT
  • 21
    61990 STRAP
    STRAP
  • 22
    11459M BRACKET, TOOL KIT
    BRACKET, TOOL KIT
  • 23
    10-95456M BOLT
    BOLT
  • 11948M POWERHEAD ASS'Y, COMPLETE (8M MODEL)
    SERIAL 00000557-09999999
    POWERHEAD ASS'Y, COMPLETE (8M MODEL)
    SERIAL 00000557-09999999
  • 11948M POWERHEAD ASS'Y, COMPLETE (8M MODEL)
    SERIAL 00000000-00000556
    POWERHEAD ASS'Y, COMPLETE (8M MODEL)
    SERIAL 00000000-00000556
  • 11948M POWERHEAD ASS'Y COMPLETE (6M MODEL)
    POWERHEAD ASS'Y COMPLETE (6M MODEL)
  • 27-11434M GASKET SET, POWERHEAD
    GASKET SET, POWERHEAD
