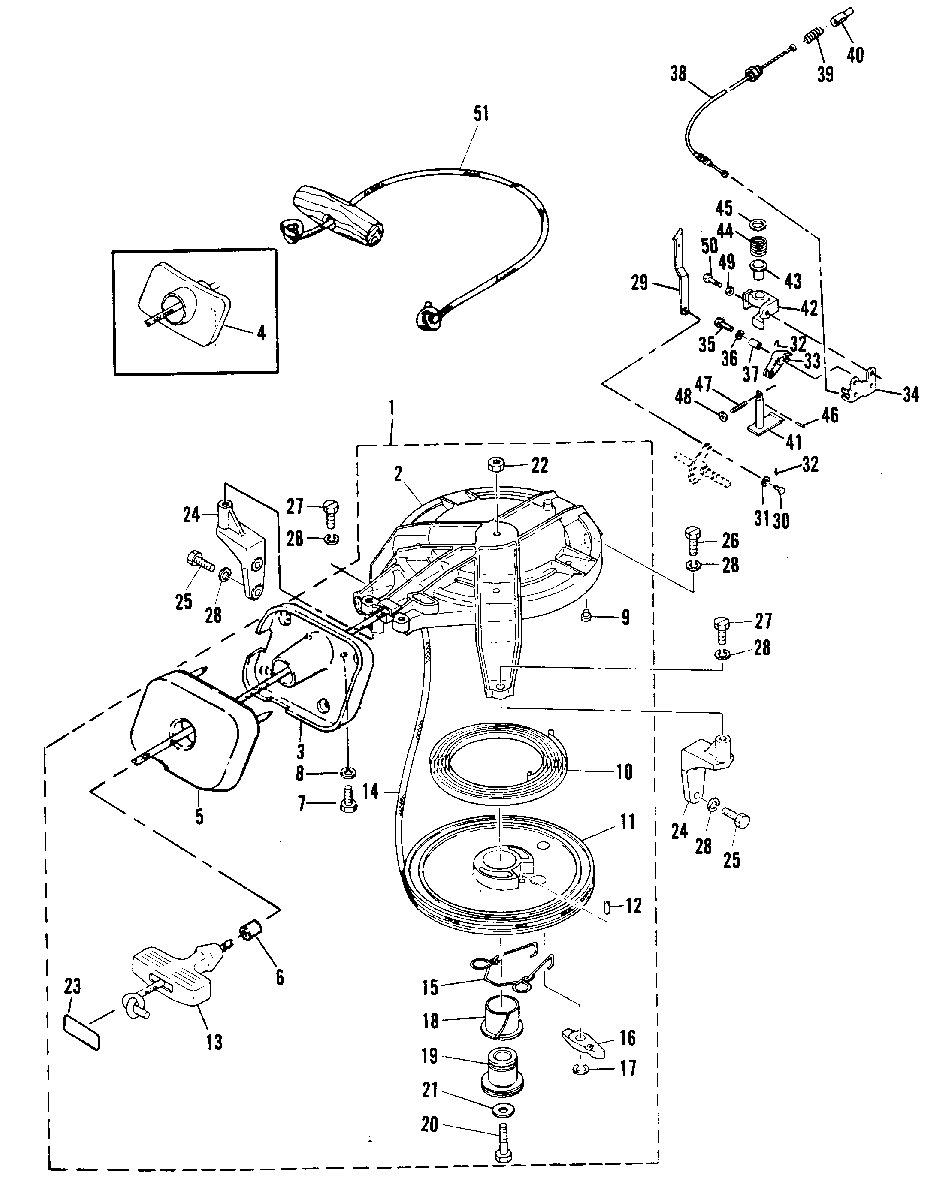

RECOIL STARTER для Mariner - 8B 677-300101 AND UP
-
№АртикулНазвание
-
12169-8397M STARTER ASS'Y
SERIAL 00030636-09999999STARTER ASS'Y
SERIAL 00030636-09999999 -
12169-6974M STARTER ASS'Y
SERIAL 00000000-00030635STARTER ASS'Y
SERIAL 00000000-00030635 -
22169-8398M CASE, STARTER
SERIAL 00030636-09999999CASE, STARTER
SERIAL 00030636-09999999 -
22169-6975M CASE, STARTER
SERIAL 00000000-00030635CASE, STARTER
SERIAL 00000000-00030635 -
396567M GUIDE, STARTER ROPE
SERIAL 00030636-09999999GUIDE, STARTER ROPE
SERIAL 00030636-09999999 -
483255M GUIDE, STARTER ROPE
SERIAL 00000000-00030635GUIDE, STARTER ROPE
SERIAL 00000000-00030635 -
598967M SEAL
SERIAL 00030636-09999999SEAL
SERIAL 00030636-09999999 -
625-98968M GROMMET
SERIAL 00030636-09999999GROMMET
SERIAL 00030636-09999999 -
710-826957M BOLTBOLT
-
813-82212M WASHER, LOCKWASHER, LOCK
-
919-80604M STAYSTAY
-
1024-82115M SPRINGSPRING
-
1150-83250M DRUM, SHEAVEDRUM, SHEAVE
-
1217-82157M PIN, ROLLPIN, ROLL
-
13814491A1 HANDLE, STARTERHANDLE, STARTER
-
1450-12066Q10 STARTER ROPESTARTER ROPE
-
1524-83947M SPRING, PAWL DRIVESPRING, PAWL DRIVE
-
1683252M PAWL, DRIVEPAWL, DRIVE
-
1753-84895M SNAP RINGSNAP RING
-
1823-82687M BUSHINGBUSHING
-
1983251M SHAFTSHAFT
-
2010-84058M BOLTBOLT
-
2112-81557M WASHERWASHER
-
2211-82389M NUTNUT
-
23814491A1 COVERCOVER
-
2483258M BRACKETBRACKET
-
2510-82423M BOLTBOLT
-
2610-83285M BOLTBOLT
-
2710-84058M BOLTBOLT
-
2813-82212M WASHER, LOCKWASHER, LOCK
-
2983254M LINKLINK
-
3017-80501M SET PIN, MAGNETO CONTROL LEVERSET PIN, MAGNETO CONTROL LEVER
-
3112-83768M WASHERWASHER
-
3218-82051M CLIPCLIP
-
3396578M ARMARM
-
3496571M BRACKETBRACKET
-
3510-84058M BOLTBOLT
-
3612-83769M WASHERWASHER
-
3723-81974M COLLARCOLLAR
-
3896568M WIRE COMPLETE, STARTER LOCKOUT
SERIAL 00030636-09999999WIRE COMPLETE, STARTER LOCKOUT
SERIAL 00030636-09999999 -
3896568M WIRE COMPLETE, STARTER LOCKOUT
SERIAL 00000000-00030635WIRE COMPLETE, STARTER LOCKOUT
SERIAL 00000000-00030635 -
3924-82079M SPRINGSPRING
-
4081106M PLUNGER, STARTER LOCKOUTPLUNGER, STARTER LOCKOUT
-
4196572M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
4296573M BRACKETBRACKET
-
4323-96574M BUSHINGBUSHING
-
4424-96575M SPRINGSPRING
-
4512-96576M WASHERWASHER
-
4617-96577M PINPIN
-
4716-41883M STUDSTUD
-
4811-83763M NUTNUT
-
4912-82214M WASHERWASHER
-
5010-84058M BOLTBOLT
-
5147341A11 EMERGENCY STARTER ROPEEMERGENCY STARTER ROPE
