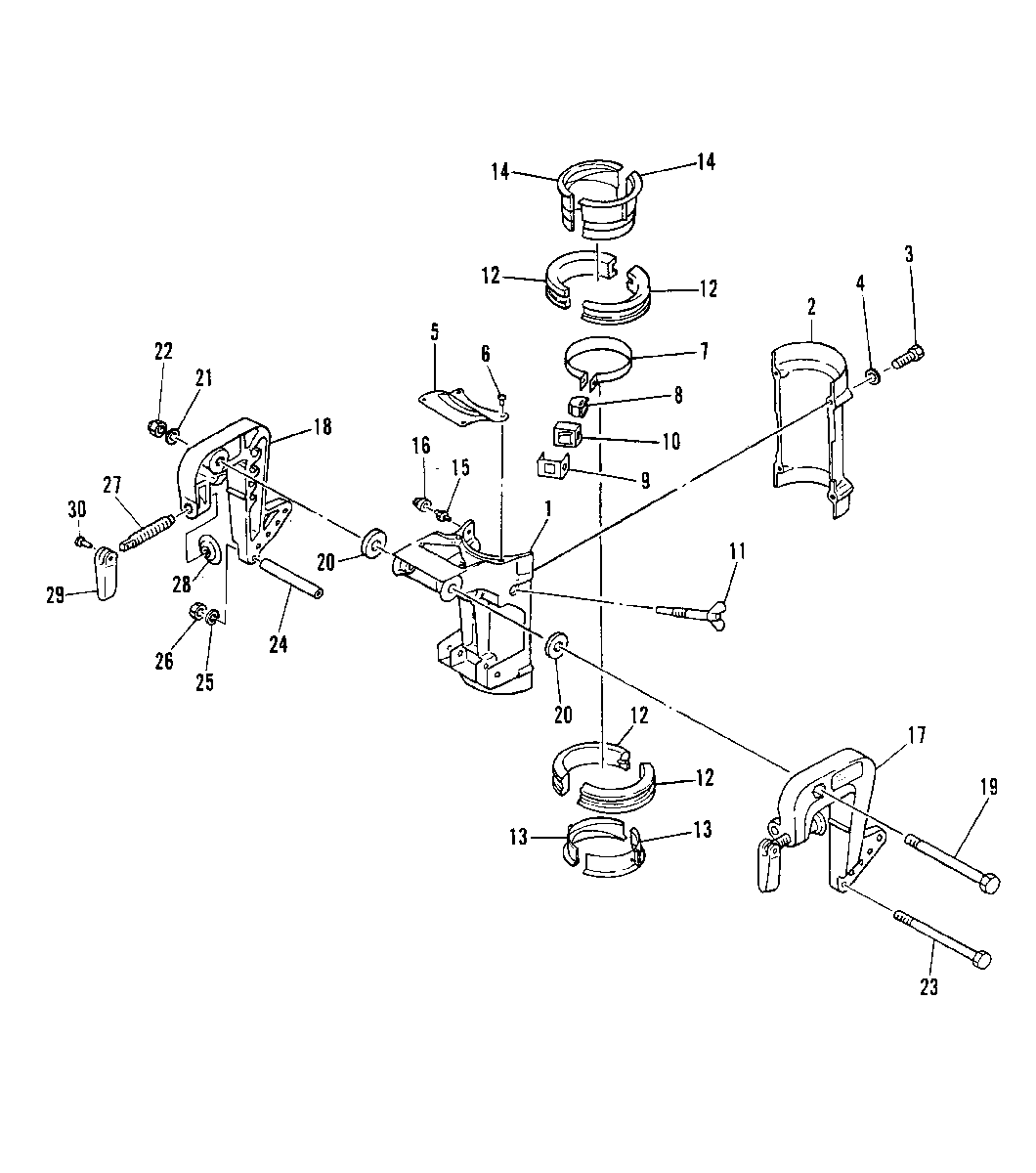

CLAMP AND SWIVEL BRACKET для Mariner - 8B 677-300101 AND UP

  • №
    Артикул
    Название
  • 1
    1485-7187M BRACKET, SWIVEL (FRONT)
    SERIAL 00012921-09999999
    BRACKET, SWIVEL (FRONT)
    SERIAL 00012921-09999999
  • 1
    1485-6916M BRACKET, SWIVEL (FRONT)
    SERIAL 00000000-00012920
    BRACKET, SWIVEL (FRONT)
    SERIAL 00000000-00012920
  • 2
    80520M BRACKET, SWIVEL (REAR)
    BRACKET, SWIVEL (REAR)
  • 3
    10-827043M BOLT
    BOLT
  • 4
    12-82214M WASHER
    WASHER
  • 5
    81065M COVER
    COVER
  • 6
    10-14265M RIVET
    RIVET
  • 7
    82889M PLATE, FRICTION
    PLATE, FRICTION
  • 8
    82890M PLATE, FRICTION
    PLATE, FRICTION
  • 9
    82891M PLATE, FRICTION
    PLATE, FRICTION
  • 10
    82892M COVER
    COVER
  • 11
    10-81055M SCREW, FRICTION PLATE
    SCREW, FRICTION PLATE
  • 12
    23-81056M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 13
    80514M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 14
    80513T BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 15
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 16
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 17
    1484-821596A1 BRACKET, CLAMP (PORT)
    BRACKET, CLAMP (PORT)
  • 18
    1484-6703M BRACKET, CLAMP (STARBOARD)
    BRACKET, CLAMP (STARBOARD)
  • 19
    10-98969M BOLT
    SERIAL 00039056-09999999
    BOLT
    SERIAL 00039056-09999999
  • 19
    10-98969M BOLT
    SERIAL 00000000-00039055
    BOLT
    SERIAL 00000000-00039055
  • 20
    12-98970M WASHER
    SERIAL 00039056-09999999
    WASHER
    SERIAL 00039056-09999999
  • 20
    12-98970M WASHER
    SERIAL 00000000-00039055
    WASHER
    SERIAL 00000000-00039055
  • 21
    12-81806M WASHER
    WASHER
  • 22
    11-81785M NUT
    NUT
  • 23
    10-82921M BOLT
    BOLT
  • 24
    23-82116M SPACER
    SPACER
  • 25
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 26
    11-82389M NUT
    NUT
  • 27
    10-81755M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 28
    12-80638M PAD, TRANSOM CLAMP
    PAD, TRANSOM CLAMP
  • 29
    809959M HANDL, TRANSOM CLAMP
    HANDL, TRANSOM CLAMP
  • 30
    17-81888M PIN
    PIN
