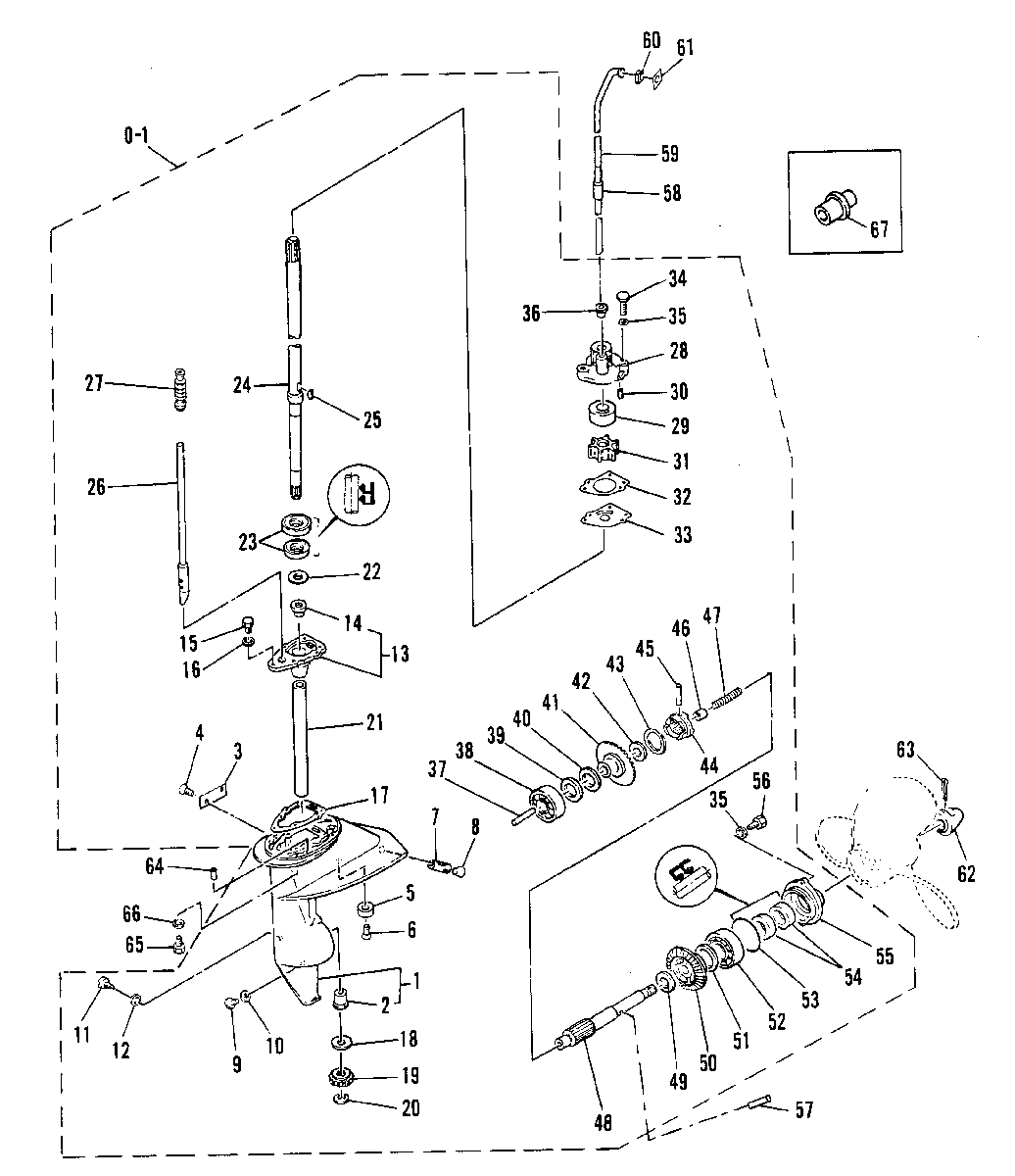

GEARHOUSING ASSEMBLY для Mariner - 8B 677-300101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-9835M GEARHOUSING ASS'Y (SHORT SHAFT)
    GEARHOUSING ASS'Y (SHORT SHAFT)
  • 0-1
    1651-9836M GEARHOUSING ASS'Y (LONG SHAFT)
    GEARHOUSING ASS'Y (LONG SHAFT)
  • 1
    1651-6942M GEARHOUSING
    GEARHOUSING
  • 2
    23-80536M BUSHING, DRIVE SHAFT
    BUSHING, DRIVE SHAFT
  • 3
    83091M COVER, WATER INLET
    COVER, WATER INLET
  • 4
    10-95467M SCREW
    SCREW
  • 5
    43107M ANODE
    ANODE
  • 6
    10-82791M SCREW
    SCREW
  • 7
    35-80246M COVER, WATER INLET
    COVER, WATER INLET
  • 8
    22-81920M PLUG
    PLUG
  • 9
    22-81924M SCREW
    SCREW
  • 10
    27-81987 GASKET
    GASKET
  • 11
    10-81752M SCREW, DETENT
    SCREW, DETENT
  • 12
    27-95610 GASKET
    GASKET
  • 13
    80537M HOUSING, BEARING
    HOUSING, BEARING
  • 14
    23-80536M BUSHING
    BUSHING
  • 15
    10-84058M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    27-80535M PACKING, LOWER CASING
    PACKING, LOWER CASING
  • 18
    12-80538M WASHER, THRUST (0.8MM)
    WASHER, THRUST (0.8MM)
  • 18
    12-80539M WASHER, THRUST (1.0MM)
    WASHER, THRUST (1.0MM)
  • 18
    12-80540M WASHER, THRUST (1.2MM)
    WASHER, THRUST (1.2MM)
  • 18
    12-80541M WASHER, THRUST (1.4MM)
    WASHER, THRUST (1.4MM)
  • 19
    43-82542M GEAR, PINION
    GEAR, PINION
  • 20
    53-82332M SNAP RING
    SNAP RING
  • 21
    23-81983M COLLAR
    COLLAR
  • 22
    12-81809M WASHER
    WASHER
  • 23
    26-82228M OIL SEAL
    OIL SEAL
  • 24
    45-81086M DRIVE SHAFT COMP. (SHORT 644MM)
    DRIVE SHAFT COMP. (SHORT 644MM)
  • 24
    45-81087M DRIVE SHAFT COMP. (LONG 784MM)
    DRIVE SHAFT COMP. (LONG 784MM)
  • 24
    45-83748M DRIVE SHAFT COMP. (ULTRA LONG 834MM)
    DRIVE SHAFT COMP. (ULTRA LONG 834MM)
  • 24
    45-83753M DRIVE SHAFT COMP. (SUPER ULTRA LONG 911MM)
    DRIVE SHAFT COMP. (SUPER ULTRA LONG 911MM)
  • 25
    28-81912M KEY, WATER PUMP
    KEY, WATER PUMP
  • 26
    81071M SHIFT CAM ASS'Y (SHORT 311MM)
    SHIFT CAM ASS'Y (SHORT 311MM)
  • 26
    81072M SHIFT CAM ASS'Y (LONG 451MM)
    SHIFT CAM ASS'Y (LONG 451MM)
  • 26
    83744M SHIFT CAM ASS'Y (ULTRA LONG 501MM)
    SHIFT CAM ASS'Y (ULTRA LONG 501MM)
  • 26
    83750M SHIFT CAM ASS'Y (SUPER ULTRA LONG 578MM)
    SHIFT CAM ASS'Y (SUPER ULTRA LONG 578MM)
  • 27
    15304M BOOT, SHIFT ROD
    BOOT, SHIFT ROD
  • 28
    46-81074T HOUSING, WATER PUMP
    HOUSING, WATER PUMP
  • 29
    80902M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 29
    81076M INSERT, CARTRIDGE (CHROME, OPT)
    INSERT, CARTRIDGE (CHROME, OPT)
  • 30
    17-82357M PIN, DOWEL
    PIN, DOWEL
  • 31
    47-95611M IMPELLER
    IMPELLER
  • 32
    27-81075 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 33
    81077M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 33
    81078M OUTER PLATE, CARTRIDGE (CHROME, OPT)
    OUTER PLATE, CARTRIDGE (CHROME, OPT)
  • 34
    10-827043M BOLT
    BOLT
  • 35
    12-82214M WASHER
    WASHER
  • 36
    26-80532M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 37
    81014M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 38
    30-82291T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 39
    15-80543M SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 40
    15-80174M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 40
    15-80175M SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 41
    43-80542M GEAR ASS'Y, FORWARD
    GEAR ASS'Y, FORWARD
  • 42
    12-82560M WASHER
    WASHER
  • 43
    53-82339M RING, CROSS PIN
    RING, CROSS PIN
  • 44
    52-81089M CLUTCH, DOG
    CLUTCH, DOG
  • 45
    17-82362M PIN, DOWEL
    PIN, DOWEL
  • 46
    80679M SLIDE, SHIFT
    SLIDE, SHIFT
  • 47
    24-82077M SPRING
    SPRING
  • 48
    44-81088M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 49
    12-81824M WASHER, THRUST
    WASHER, THRUST
  • 50
    43-80544M GEAR ASS'Y, REVERSE
    GEAR ASS'Y, REVERSE
  • 51
    15-19148005 SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 51
    15-80259M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 51
    15-879172251 SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 52
    30-8528001 BEARING, REVERSE GEAR
    BEARING, REVERSE GEAR
  • 53
    25-15377M O-RING
    O-RING
  • 54
    26-82226M OIL SEAL
    OIL SEAL
  • 55
    82548M CAP, LOWER CASING
    CAP, LOWER CASING
  • 56
    10-84058M BOLT
    BOLT
  • 57
    17-81901M PIN, DRIVE
    PIN, DRIVE
  • 58
    23-82021M HOSE (SHORT AND LONG)
    HOSE (SHORT AND LONG)
  • 59
    32-82547M TUBE, WATER (SHORT 373MM)
    TUBE, WATER (SHORT 373MM)
  • 59
    32-81079M TUBE, WATER (LONG 513MM)
    TUBE, WATER (LONG 513MM)
  • 59
    32-83745M TUBE, WATER (ULTRA LONG 563MM)
    TUBE, WATER (ULTRA LONG 563MM)
  • 59
    32-83752M TUBE, WATER (SUPER ULTRA LONG 640MM)
    TUBE, WATER (SUPER ULTRA LONG 640MM)
  • 60
    26-81080M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 61
    81081M SET PLATE, WATER TUBE
    SET PLATE, WATER TUBE
  • 62
    859931 NUT, PROPELLER
    NUT, PROPELLER
  • 63
    18-82132M PIN, COTTER
    PIN, COTTER
  • 64
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 65
    10-84058M BOLT
    BOLT
  • 66
    12-82214M WASHER
    WASHER
  • 67
    22-8M0121335 WATER FLUSH PLUG (OPT)
    WATER FLUSH PLUG (OPT)
  • 67
    27-84172M GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
    GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
  • 67
    84181T REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
    REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
