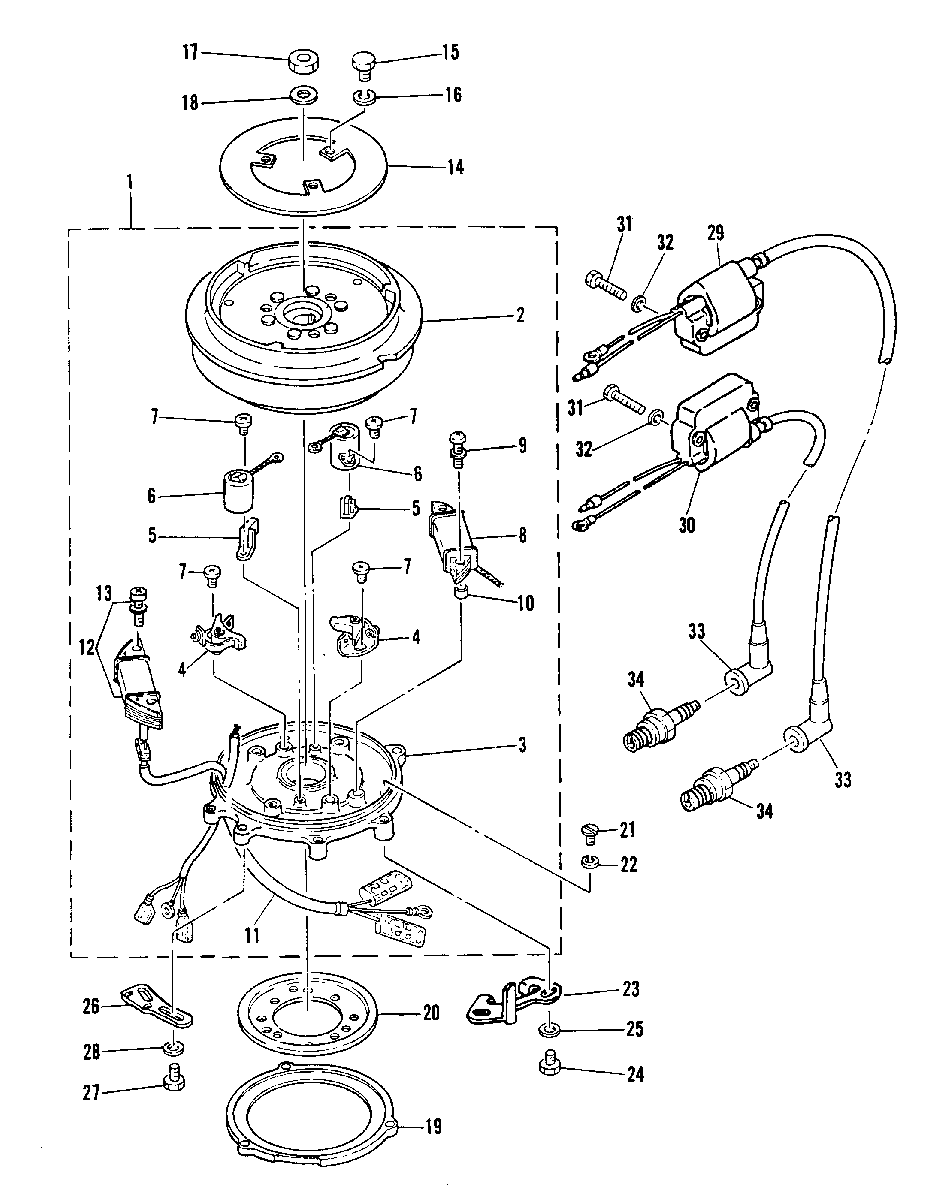

FLYWHEEL MAGNETO для Mariner - 8B 677-300101 AND UP

  • №
    Артикул
    Название
  • 1
    253-8051M FLYWHEEL MAGNETO ASS'Y W/LIGHTING COIL
    SERIAL 00020251-09999999
    FLYWHEEL MAGNETO ASS'Y W/LIGHTING COIL
    SERIAL 00020251-09999999
  • 1
    253-8034M FLYWHEEL MAGNETO ASS'Y W/O LIGHTING COIL
    SERIAL 00020251-09999999
    FLYWHEEL MAGNETO ASS'Y W/O LIGHTING COIL
    SERIAL 00020251-09999999
  • 1
    253-8034M FLYWHEEL MAGNETO ASS'Y
    SERIAL 00000000-00020250
    FLYWHEEL MAGNETO ASS'Y
    SERIAL 00000000-00020250
  • 2
    94659M FLYWHEEL ASS'Y
    FLYWHEEL ASS'Y
  • 3
    94658M BASE, MAGNETO
    SERIAL 00020251-09999999
    BASE, MAGNETO
    SERIAL 00020251-09999999
  • 3
    80928M BASE, MAGNETO
    SERIAL 00000000-00020250
    BASE, MAGNETO
    SERIAL 00000000-00020250
  • 4
    80930M BREAKER POINT ASS'Y
    BREAKER POINT ASS'Y
  • 5
    80025M LUBRICATOR
    LUBRICATOR
  • 6
    80558M CONDENSER
    CONDENSER
  • 7
    10-82500M SCREW W/WASHER
    SCREW W/WASHER
  • 8
    83281T COIL, PRIMARY IGNITION
    COIL, PRIMARY IGNITION
  • 9
    10-82522M SCREW W/WASHER
    SCREW W/WASHER
  • 10
    23-80555M SPACER
    SPACER
  • 11
    84-95591M LEAD WIRE ASS'Y
    SERIAL 00020251-09999999
    LEAD WIRE ASS'Y
    SERIAL 00020251-09999999
  • 11
    84-80929M LEAD WIRE ASS'Y
    SERIAL 00000000-00020250
    LEAD WIRE ASS'Y
    SERIAL 00000000-00020250
  • 12
    83315M LIGHTING COIL ASS'Y (80W) SEE NOTE
    LIGHTING COIL ASS'Y (80W) SEE NOTE
  • 13
    10-82522M SCREW W/WASHER
    SCREW W/WASHER
  • 14
    82877M COVER
    COVER
  • 15
    10-91772M BOLT
    BOLT
  • 16
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 17
    11-81769M NUT
    NUT
  • 18
    12-81805M WASHER
    WASHER
  • 19
    84667M RETAINER, MAGNETO BASE
    SERIAL 00012921-09999999
    RETAINER, MAGNETO BASE
    SERIAL 00012921-09999999
  • 19
    81047M RETAINER, MAGNETO BASE
    SERIAL 00000000-00012920
    RETAINER, MAGNETO BASE
    SERIAL 00000000-00012920
  • 20
    84668M RETAINER, MAGNETO BASE
    SERIAL 00012921-09999999
    RETAINER, MAGNETO BASE
    SERIAL 00012921-09999999
  • 20
    81048M RETAINER, MAGNETO BASE
    SERIAL 00000000-00012920
    RETAINER, MAGNETO BASE
    SERIAL 00000000-00012920
  • 21
    10-83523M SCREW
    SCREW
  • 22
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 23
    83266M STOPPER, MAGNETO BASE
    STOPPER, MAGNETO BASE
  • 24
    10-826957M BOLT
    BOLT
  • 25
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 26
    83264M CAM, ACCEL
    CAM, ACCEL
  • 27
    10-82879M BOLT
    BOLT
  • 28
    12-82211M WASHER
    WASHER
  • 29
    94777M IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00030636-09999999
    IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00030636-09999999
  • 29
    94777M IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00000000-00030635
    IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00000000-00030635
  • 30
    94778M IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00030636-09999999
    IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00030636-09999999
  • 30
    94778M IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00000000-00030635
    IGNITION COIL ASS'Y, SECONDARY
    SERIAL 00000000-00030635
  • 31
    10-83285M BOLT
    BOLT
  • 32
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 33
    85-815119M PLUG CAP ASS'Y (STD)
    PLUG CAP ASS'Y (STD)
  • 33
    85-63709A1 PLUG CAP ASS'Y (OPT)
    PLUG CAP ASS'Y (OPT)
  • 34
    33-8M0114739 SPARK PLUG (B-7HS, NGK)
    SPARK PLUG (B-7HS, NGK)
