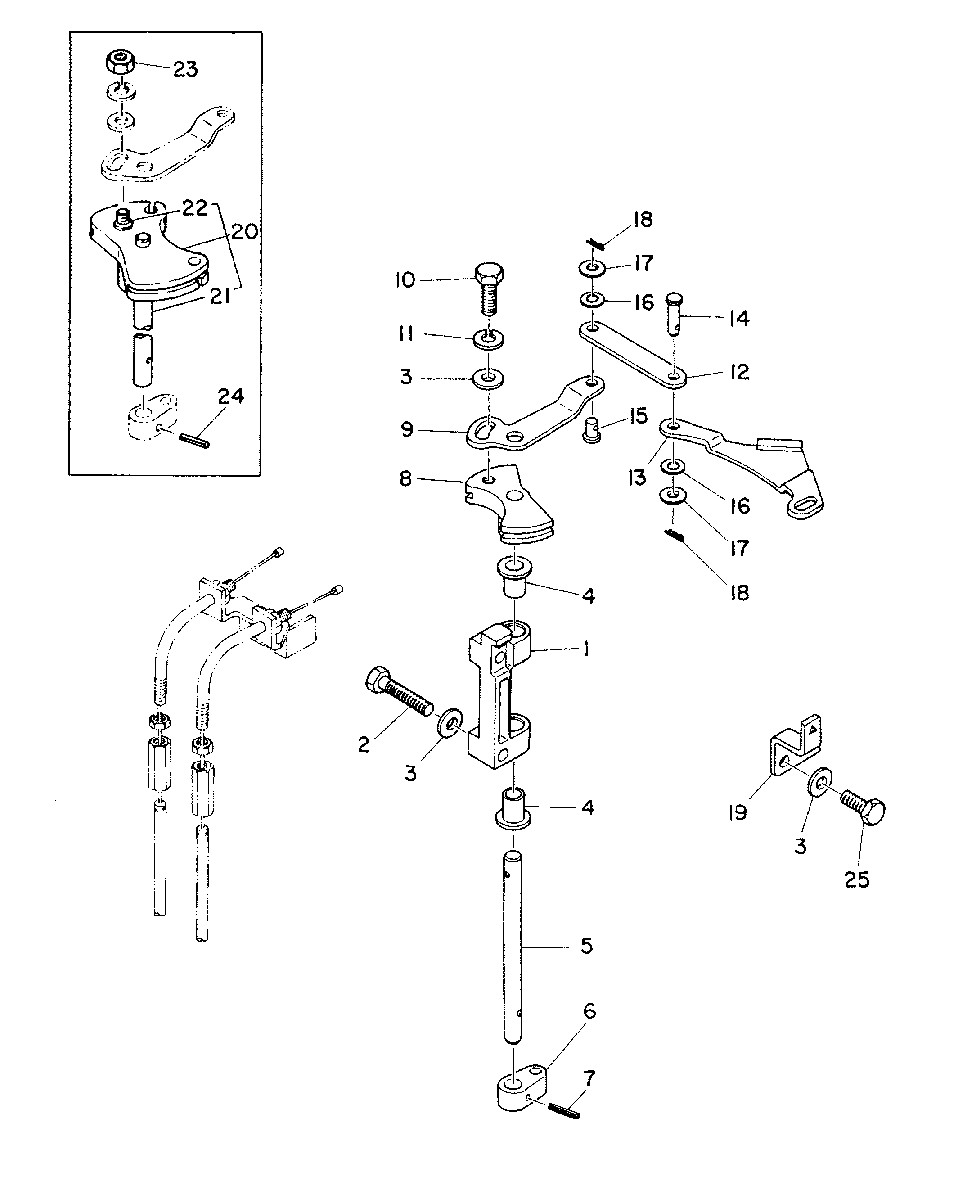

THROTTLE LINKAGE для Mariner - 8A 682-550141 THRU 551055 (EL)

  • №
    Артикул
    Название
  • 1
    81051M BRACKET, SHAFT...
    BRACKET, SHAFT...
  • 2
    10-83285M BOLT, BRACKET ATTACHING...
    BOLT, BRACKET ATTACHING...
  • 3
    12-82214M WASHER...
    WASHER...
  • 4
    23-81945M BUSHING, SHAFT...
    BUSHING, SHAFT...
  • 5
    80499M SHAFT, THROTTLE...
    SHAFT, THROTTLE...
  • 6
    81091M CAM, THROTTLE...
    CAM, THROTTLE...
  • 7
    17-82148M PIN, ROLL-CAM...
    SERIAL 00000000-00026575
    PIN, ROLL-CAM...
    SERIAL 00000000-00026575
  • 8
    83070M PULLEY, THROTTLE CABLE... .
    SERIAL 00000000-00026575
    PULLEY, THROTTLE CABLE... .
    SERIAL 00000000-00026575
  • 9
    81049M LEVER, MAGNETO CONTROL...
    LEVER, MAGNETO CONTROL...
  • 10
    10-826957M .. .
    SERIAL 00000000-00026575
    .. .
    SERIAL 00000000-00026575
  • 11
    13-82212M LOCKWASHER, LEVER BOLT...
    LOCKWASHER, LEVER BOLT...
  • 12
    80489M LINK, MAGNETO CONTROL...
    LINK, MAGNETO CONTROL...
  • 13
    80484M CAM, MAGNETO CONTROL...
    CAM, MAGNETO CONTROL...
  • 14
    17-80500M PIN, LINK...
    PIN, LINK...
  • 15
    17-80501M PIN, LINK...
    PIN, LINK...
  • 16
    13-81865M LOCKWASHER, LINK PIN...
    LOCKWASHER, LINK PIN...
  • 17
    12-82209M WASHER, LINK PIN...
    WASHER, LINK PIN...
  • 18
    18-82051M PIN,RETAINING...
    PIN,RETAINING...
  • 19
    80487M INDICATOR, MAGNETO TIMING...
    INDICATOR, MAGNETO TIMING...
  • 20
    83070M PULLEY... .
    SERIAL 00026576-09999999
    PULLEY... .
    SERIAL 00026576-09999999
  • 21
    83070M SHAFT, LINK CONNECTING...
    SERIAL 00026576-09999999
    SHAFT, LINK CONNECTING...
    SERIAL 00026576-09999999
  • 22
    10-82872M BOSS, LEVER... .
    SERIAL 00026576-09999999
    BOSS, LEVER... .
    SERIAL 00026576-09999999
  • 23
    11-82389M . .
    SERIAL 00026576-09999999
    . .
    SERIAL 00026576-09999999
  • 24
    17-82148M PIN, SPRING... .
    SERIAL 00026576-09999999
    PIN, SPRING... .
    SERIAL 00026576-09999999
  • 25
    10-826957M ..
    ..
