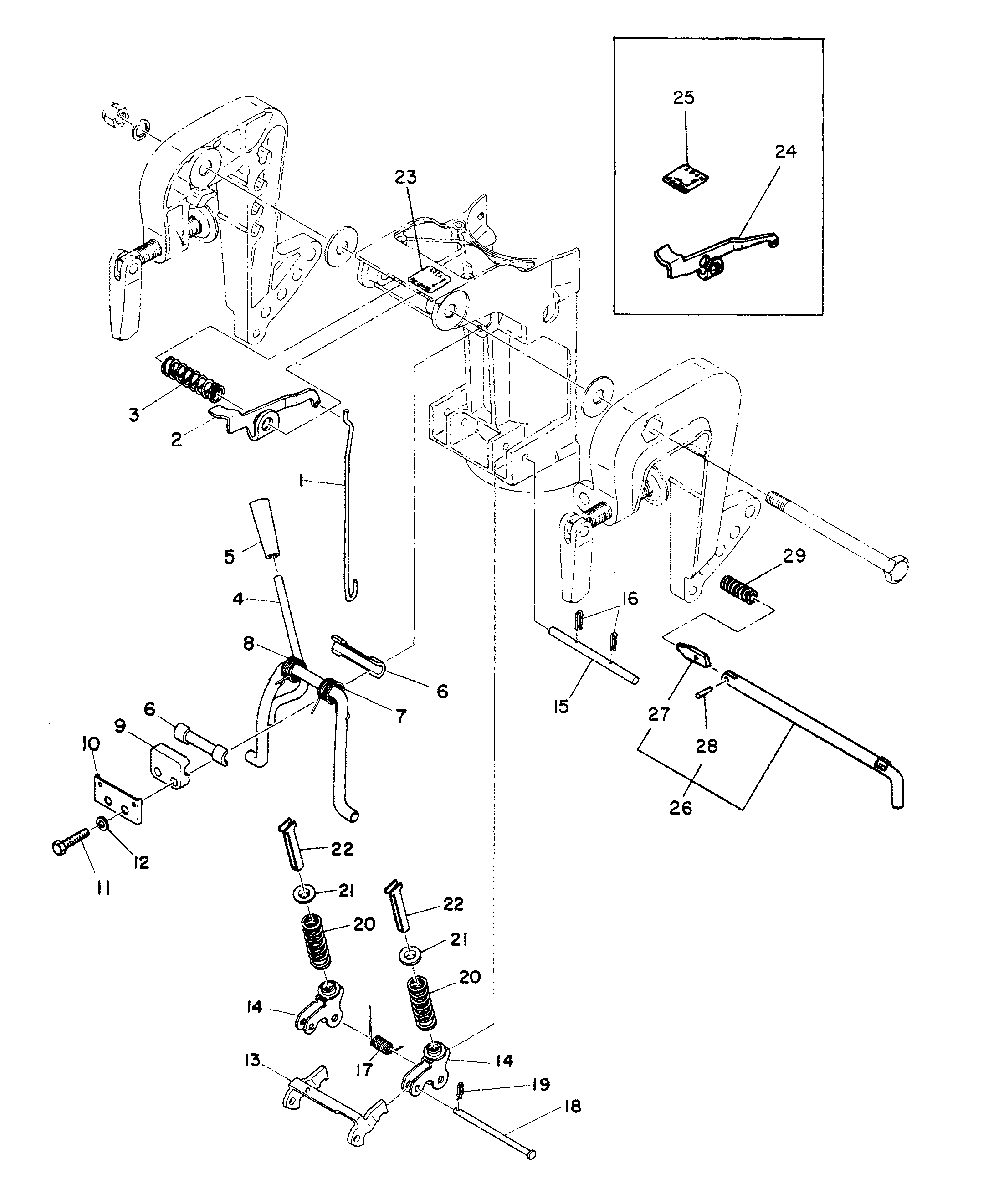

REVERSE LOCK для Mariner - 8A 682-550141 THRU 551055 (EL)

  • №
    Артикул
    Название
  • 1
    80524M ROD, REVERSE LOCK LEVER...
    ROD, REVERSE LOCK LEVER...
  • 2
    80526M LEVER, LOCK/RELEASE...
    SERIAL 00000000-00027075
    LEVER, LOCK/RELEASE...
    SERIAL 00000000-00027075
  • 3
    24-82090M SPRING, LEVER RETURN... .
    SERIAL 00027075-09999999
    SPRING, LEVER RETURN... .
    SERIAL 00027075-09999999
  • 4
    80519M TILT STOP LEVER ASS'Y...
    TILT STOP LEVER ASS'Y...
  • 5
    80100M KNOB, TILT STOP LEVER...
    KNOB, TILT STOP LEVER...
  • 6
    23-80097M BUSHING, TILT STOP LEVER...
    BUSHING, TILT STOP LEVER...
  • 7
    24-82111M SPRING, TILT STOP LEVER-PORT...
    SPRING, TILT STOP LEVER-PORT...
  • 8
    24-82110M SPRING, TILT STOP LEVER-STARBOARD...
    SPRING, TILT STOP LEVER-STARBOARD...
  • 9
    82598M BRACKET, BUSHING...
    SERIAL 00000000-00020160
    BRACKET, BUSHING...
    SERIAL 00000000-00020160
  • 9
    80976M BRACKET, BUSHING...
    SERIAL 00020161-09999999
    BRACKET, BUSHING...
    SERIAL 00020161-09999999
  • 10
    82580M PLATE, BUSHING BRACKET...
    SERIAL 00000000-00020160
    PLATE, BUSHING BRACKET...
    SERIAL 00000000-00020160
  • 11
    10-82405M BOLT, TILT STOP LEVER ATTACHING...
    BOLT, TILT STOP LEVER ATTACHING...
  • 12
    12-82214M WASHER, TILT STOP LEVER BOLT...
    WASHER, TILT STOP LEVER BOLT...
  • 13
    80522M HOOK, REVERSE LOCK...
    HOOK, REVERSE LOCK...
  • 14
    80523M HOOK, REVERSE LOCK...
    HOOK, REVERSE LOCK...
  • 15
    80527M SHAFT, HOOK LEVER...
    SHAFT, HOOK LEVER...
  • 16
    18-82049M PIN, HOOK LEVER SHAFT...
    PIN, HOOK LEVER SHAFT...
  • 17
    24-82112M SPRING, REVERSE LOCK RETURN...
    SPRING, REVERSE LOCK RETURN...
  • 18
    17-81883M SHAFT...
    SHAFT...
  • 19
    18-82051M PIN, HOOK SHAFT...
    PIN, HOOK SHAFT...
  • 20
    24-82097M SPRING, REVERSE LOCK...
    SPRING, REVERSE LOCK...
  • 21
    80525M STOP, REVERSE LOCK SPRING...
    STOP, REVERSE LOCK SPRING...
  • 22
    80521M ARM, REVERSE LOCK SPRING...
    ARM, REVERSE LOCK SPRING...
  • 23
    80891M INDICATOR, TILT... .
    SERIAL 00000000-00027075
    INDICATOR, TILT... .
    SERIAL 00000000-00027075
  • 24
    83049M LEVER, TILT...
    SERIAL 00027075-09999999
    LEVER, TILT...
    SERIAL 00027075-09999999
  • 25
    37-83059M DECAL, TILT INDICATOR...
    SERIAL 00027076-09999999
    DECAL, TILT INDICATOR...
    SERIAL 00027076-09999999
  • 26
    17-80266M TILT ROD ASS'Y...
    TILT ROD ASS'Y...
  • 27
    80640M STOPPER PLATE... .
    SERIAL 00026575-09999999
    STOPPER PLATE... .
    SERIAL 00026575-09999999
  • 27
    82857M STOPPER PLATE... .
    SERIAL 00026576-09999999
    STOPPER PLATE... .
    SERIAL 00026576-09999999
  • 28
    17-82141M PIN, SPRING...
    SERIAL 00000000-00026575
    PIN, SPRING...
    SERIAL 00000000-00026575
  • 28
    17-82144M PIN, SPRING... .
    SERIAL 00026576-09999999
    PIN, SPRING... .
    SERIAL 00026576-09999999
  • 29
    24-82099M SPRING...
    SPRING...
