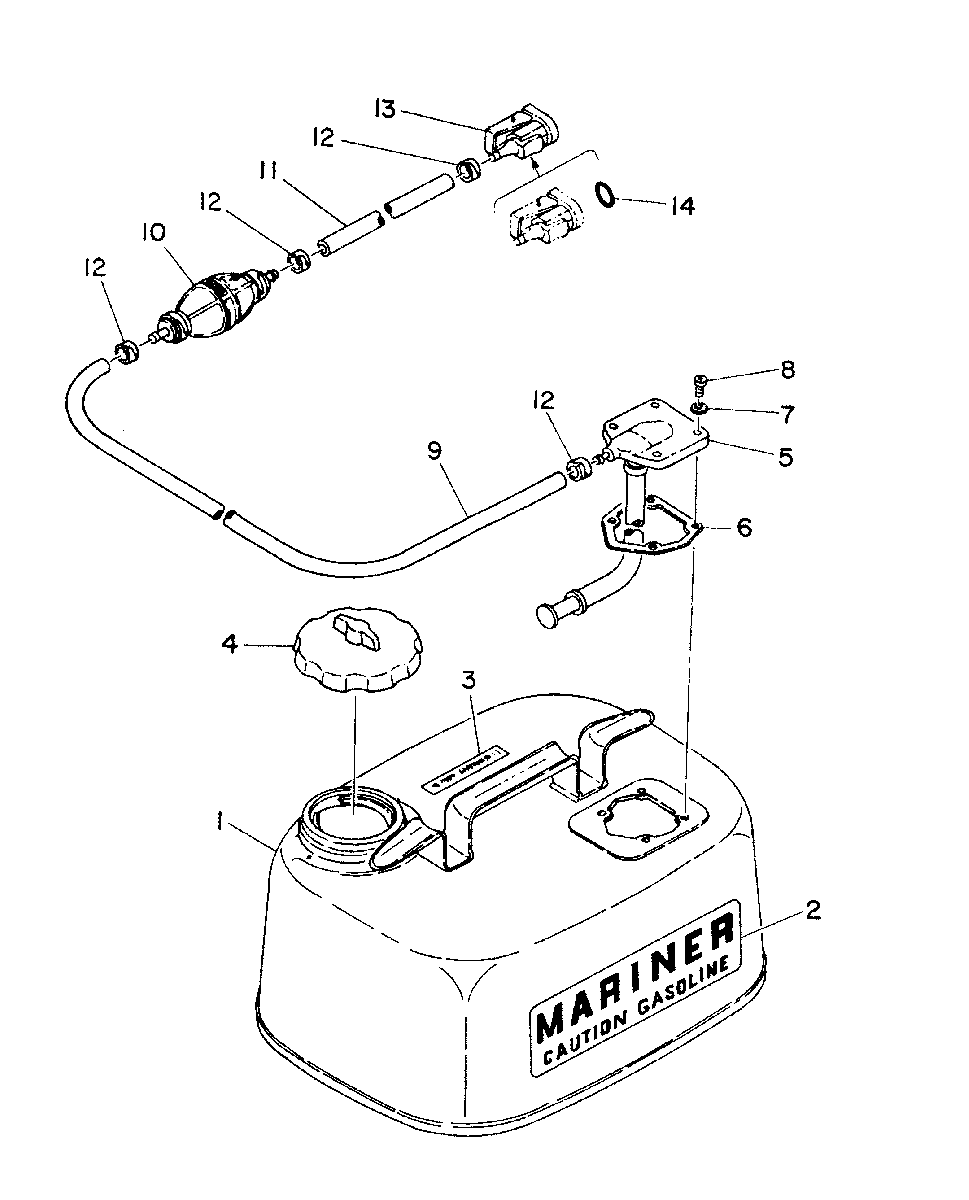

FUEL TANK (INTERNATIONAL) для Mariner - 8A 682-550141 THRU 551055 (EL)
-
№АртикулНазвание
-
11252-6778M FUEL TANK COMP (12 LITRE)...FUEL TANK COMP (12 LITRE)...
-
237-83057M DECAL, SIDE...DECAL, SIDE...
-
337-82962M DECAL...DECAL...
-
436-814497M FUEL CAP...FUEL CAP...
-
582662M HOUSING ASS'Y, FUEL CONNECTOR...HOUSING ASS'Y, FUEL CONNECTOR...
-
627-81320M GASKET, FUEL HOUSING...GASKET, FUEL HOUSING...
-
712-95501M GASKET, HOUSING SCREW...GASKET, HOUSING SCREW...
-
810-82496M SCREW, HOUSING ATTACHING...
SERIAL 00000000-00020160SCREW, HOUSING ATTACHING...
SERIAL 00000000-00020160 -
810-83356M SCREW, HOUSING ATTACHING...
SERIAL 00020161-09999999SCREW, HOUSING ATTACHING...
SERIAL 00020161-09999999 -
932-94727M HOSE, FUEL TANK TO PRIMER BULB...HOSE, FUEL TANK TO PRIMER BULB...
-
1089396Q01 PRIMER BULB, FUEL TANK...PRIMER BULB, FUEL TANK...
-
1132-94727M HOSE, PRIMER BULB TO FUEL CONNECTOR...HOSE, PRIMER BULB TO FUEL CONNECTOR...
-
1254-16725M CLAMP, HOSE...CLAMP, HOSE...
-
1322-14213Q HOUSING ASS'Y, FUEL CONNECTOR...HOUSING ASS'Y, FUEL CONNECTOR...
-
1425-82789M O-RING...O-RING...
