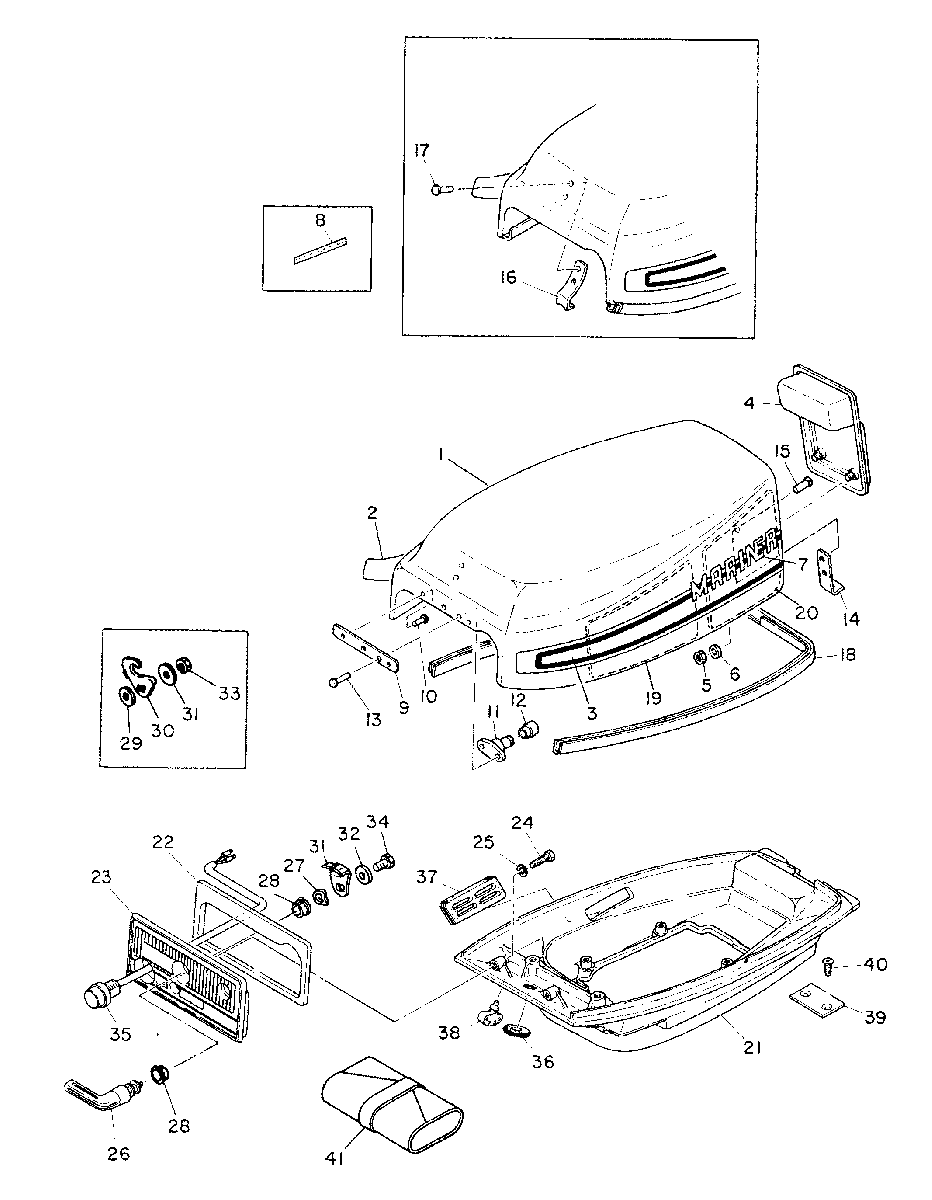

COWLING для Mariner - 8A 682-550141 THRU 551055 (EL)

  • №
    Артикул
    Название
  • 1
    2168-6871M TOP COWL ASS'Y...
    SERIAL 00000000-00026575
    TOP COWL ASS'Y...
    SERIAL 00000000-00026575
  • 1
    2168-6941M TOP COWL ASS'Y...
    SERIAL 00026576-09999999
    TOP COWL ASS'Y...
    SERIAL 00026576-09999999
  • 2
    37-83061M DECAL, TRIM-STARBOARD...
    SERIAL 00000000-00026575
    DECAL, TRIM-STARBOARD...
    SERIAL 00000000-00026575
  • 2
    37-83061M DECAL, TRIM-STARBOARD...
    SERIAL 00026576-09999999
    DECAL, TRIM-STARBOARD...
    SERIAL 00026576-09999999
  • 3
    37-83061M DECAL, TRIM-PORT...
    SERIAL 00000000-00026575
    DECAL, TRIM-PORT...
    SERIAL 00000000-00026575
  • 3
    37-83061M DECAL, TRIM-PORT...
    SERIAL 00026576-09999999
    DECAL, TRIM-PORT...
    SERIAL 00026576-09999999
  • 4
    82894M APPLIQUE, REAR...
    SERIAL 00026575-09999999
    APPLIQUE, REAR...
    SERIAL 00026575-09999999
  • 4
    82894M APPLIQUE, REAR...
    SERIAL 00026576-09999999
    APPLIQUE, REAR...
    SERIAL 00026576-09999999
  • 5
    11-82388M NUT, REAR APPLIQUE ATTACHING...
    NUT, REAR APPLIQUE ATTACHING...
  • 6
    12-82209M WASHER, REAR APPLIQUE NUT...
    WASHER, REAR APPLIQUE NUT...
  • 7
    37-80282M DECAL...
    SERIAL 00002675-09999999
    DECAL...
    SERIAL 00002675-09999999
  • 8
    37-81202M INDICATOR, SHIFT...
    INDICATOR, SHIFT...
  • 9
    83097M PLATE...
    SERIAL 00000000-00020160
    PLATE...
    SERIAL 00000000-00020160
  • 10
    17-81906M RIVET... .
    SERIAL 00000000-00020160
    RIVET... .
    SERIAL 00000000-00020160
  • 11
    83098M HOLDER... .
    SERIAL 00000000-00020160
    HOLDER... .
    SERIAL 00000000-00020160
  • 12
    23-80227M BUSHING, PANEL ATTACHING...
    SERIAL 00000000-00020160
    BUSHING, PANEL ATTACHING...
    SERIAL 00000000-00020160
  • 13
    17-814489M RIVET...
    SERIAL 00000000-00020160
    RIVET...
    SERIAL 00000000-00020160
  • 14
    83100M HOOK...
    HOOK...
  • 15
    17-81905M RIVET...
    RIVET...
  • 16
    83101M HOOK...
    SERIAL 00020161-09999999
    HOOK...
    SERIAL 00020161-09999999
  • 17
    17-81905M RIVET... .
    SERIAL 00020161-09999999
    RIVET... .
    SERIAL 00020161-09999999
  • 18
    81062M SEAL, TOP COWL...
    SEAL, TOP COWL...
  • 19
    84323M DAMPER...
    DAMPER...
  • 20
    84323M DAMPER...
    DAMPER...
  • 21
    2168-6872M BOTTOM COWL... .
    SERIAL 00000000-00020160
    BOTTOM COWL... .
    SERIAL 00000000-00020160
  • 21
    2168-6780M BOTTOM COWL...
    SERIAL 00020161-09999999
    BOTTOM COWL...
    SERIAL 00020161-09999999
  • 22
    27-80516M GASKET, PANEL...
    GASKET, PANEL...
  • 23
    81057M PANEL, FRONT...
    PANEL, FRONT...
  • 24
    10-82405M BOLT, PANEL ATTACHING...
    BOLT, PANEL ATTACHING...
  • 25
    12-82214M WASHER, PANEL BOLT...
    WASHER, PANEL BOLT...
  • 26
    82611M LEVER, COWL CLAMP... .
    SERIAL 00000000-00020160
    LEVER, COWL CLAMP... .
    SERIAL 00000000-00020160
  • 26
    81063M LEVER, COWL CLAMP... .( )-
    SERIAL 00020161-09999999
    LEVER, COWL CLAMP... .( )-
    SERIAL 00020161-09999999
  • 27
    13-81871M WAVE WASHER...
    WAVE WASHER...
  • 28
    23-41823M BUSHING, COWL CLAMP LEVER...
    BUSHING, COWL CLAMP LEVER...
  • 29
    12-82710M WASHER, COWL CLAMP LEVER...
    SERIAL 00000000-00020160
    WASHER, COWL CLAMP LEVER...
    SERIAL 00000000-00020160
  • 30
    82612M CLAMP, COWL...
    SERIAL 00000000-00020160
    CLAMP, COWL...
    SERIAL 00000000-00020160
  • 31
    81064M CLAMP, COWL...
    SERIAL 00020161-09999999
    CLAMP, COWL...
    SERIAL 00020161-09999999
  • 32
    12-81794M WASHER, COWL CLAMP...
    WASHER, COWL CLAMP...
  • 33
    11-82390M NUT, COWL CLAMP AND LEVER... .
    SERIAL 00000000-00020160
    NUT, COWL CLAMP AND LEVER... .
    SERIAL 00000000-00020160
  • 34
    10-91772M ..
    SERIAL 00020161-09999999
    ..
    SERIAL 00020161-09999999
  • 35
    87-91622M STOP SWITCH ASS'Y...
    STOP SWITCH ASS'Y...
  • 36
    25-82054M GROMMET, COWL-FRONT...
    GROMMET, COWL-FRONT...
  • 37
    25-80517M GROMMET, COWL-CONTROL CABLE...
    GROMMET, COWL-CONTROL CABLE...
  • 38
    80033M HOLDER, SHEAR PIN...
    HOLDER, SHEAR PIN...
  • 39
    82664M PLATE, BOTTOM COWL...
    SERIAL 00000000-00020160
    PLATE, BOTTOM COWL...
    SERIAL 00000000-00020160
  • 40
    10-84367M SCREW, PLATE ATTACHING...
    SERIAL 00000000-00020160
    SCREW, PLATE ATTACHING...
    SERIAL 00000000-00020160
  • 41
    91-803581 TOOL KIT...
    TOOL KIT...
