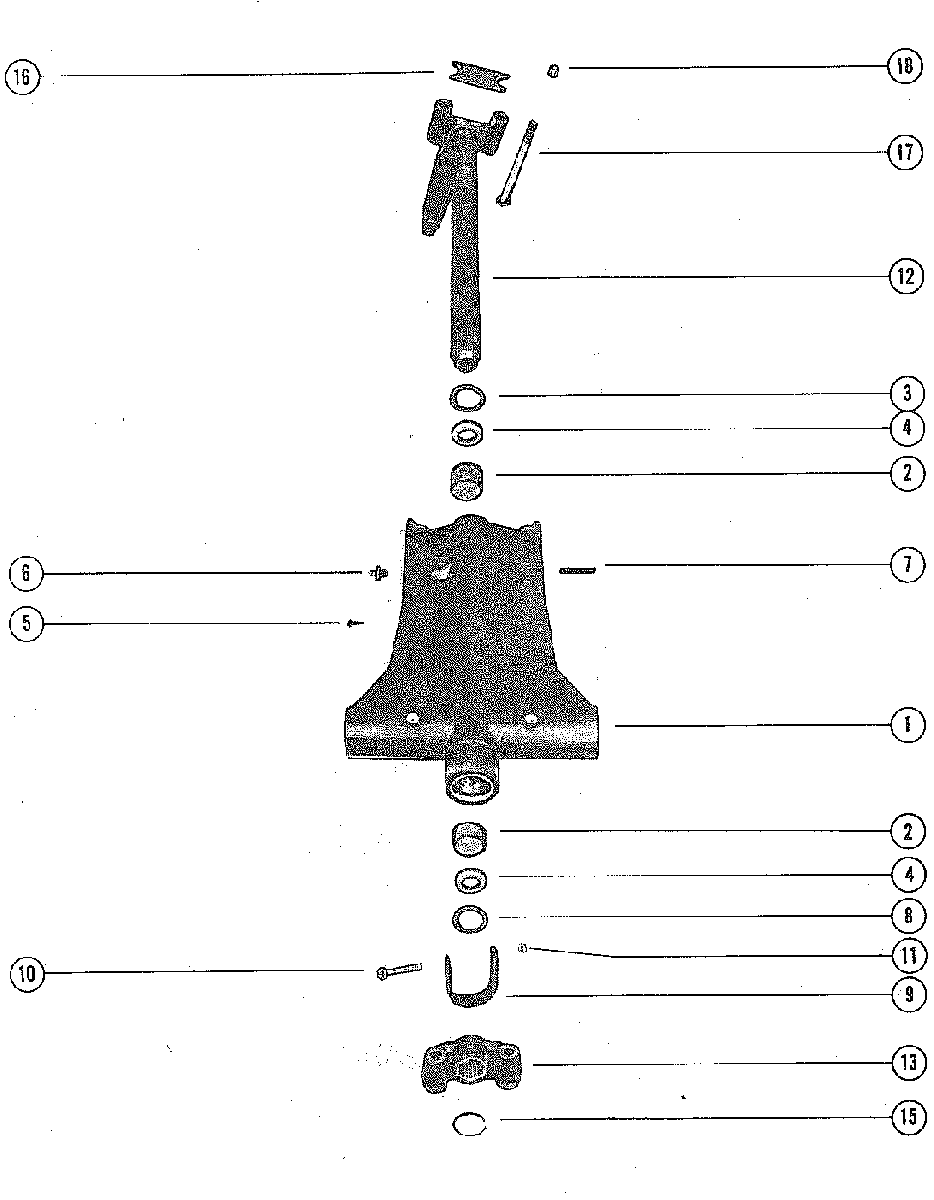

SWIVEL BRACKET ASSEMBLY для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
11490-7256A2 SWIVEL BRACKET ASS'Y(SHORT SHAFT)SWIVEL BRACKET ASS'Y(SHORT SHAFT)
-
11482-6386A4 SWIVEL BRACKET ASS'Y(LONG SHAFT)SWIVEL BRACKET ASS'Y(LONG SHAFT)
-
223-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
312-69342 WASHER, SWIVEL PIN-UPPERWASHER, SWIVEL PIN-UPPER
-
426-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
510-47828 SCREW, DRIVE-SWIVEL BRACKETSCREW, DRIVE-SWIVEL BRACKET
-
622-74036 FITTING,GREASEFITTING,GREASE
-
717-25598 PIN, REVERSE LOCK SPRING ATACHINGPIN, REVERSE LOCK SPRING ATACHING
-
812-37429 WASHER, SWIVEL PIN-LOWERWASHER, SWIVEL PIN-LOWER
-
928205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
1010-56743 SCREW, STRAP STOP TO HOUSING (3 1/8")-SHORT SHAFTSCREW, STRAP STOP TO HOUSING (3 1/8")-SHORT SHAFT
-
1010-28200 SCREW, STRAP STOP TO HOUSING(3 7/8")-LONG SHAFTSCREW, STRAP STOP TO HOUSING(3 7/8")-LONG SHAFT
-
1111-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1217-73594A2 SWIVEL PIN ASS'Y(SHORT SHAFT)SWIVEL PIN ASS'Y(SHORT SHAFT)
-
1217-73593A2 SWIVEL PIN ASS'Y(LONG SHAFT)SWIVEL PIN ASS'Y(LONG SHAFT)
-
1373984T YOKE, BOTTOMYOKE, BOTTOM
-
1553-73591 SNAP RING, YOKE ATTACHINGSNAP RING, YOKE ATTACHING
-
1628203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1710-49554 BOLT, STEERING ARM TO UPPER MOUNT(5 7/8")BOLT, STEERING ARM TO UPPER MOUNT(5 7/8")
-
1811-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- FUEL TANK ASSEMBLY (6 GALLON)
- GEAR HOUSING ASSEMBLY,COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY,COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- REMOTE CONTROL ASSEMBLY (ELECTRIC)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY, COMPLETE
- • SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
