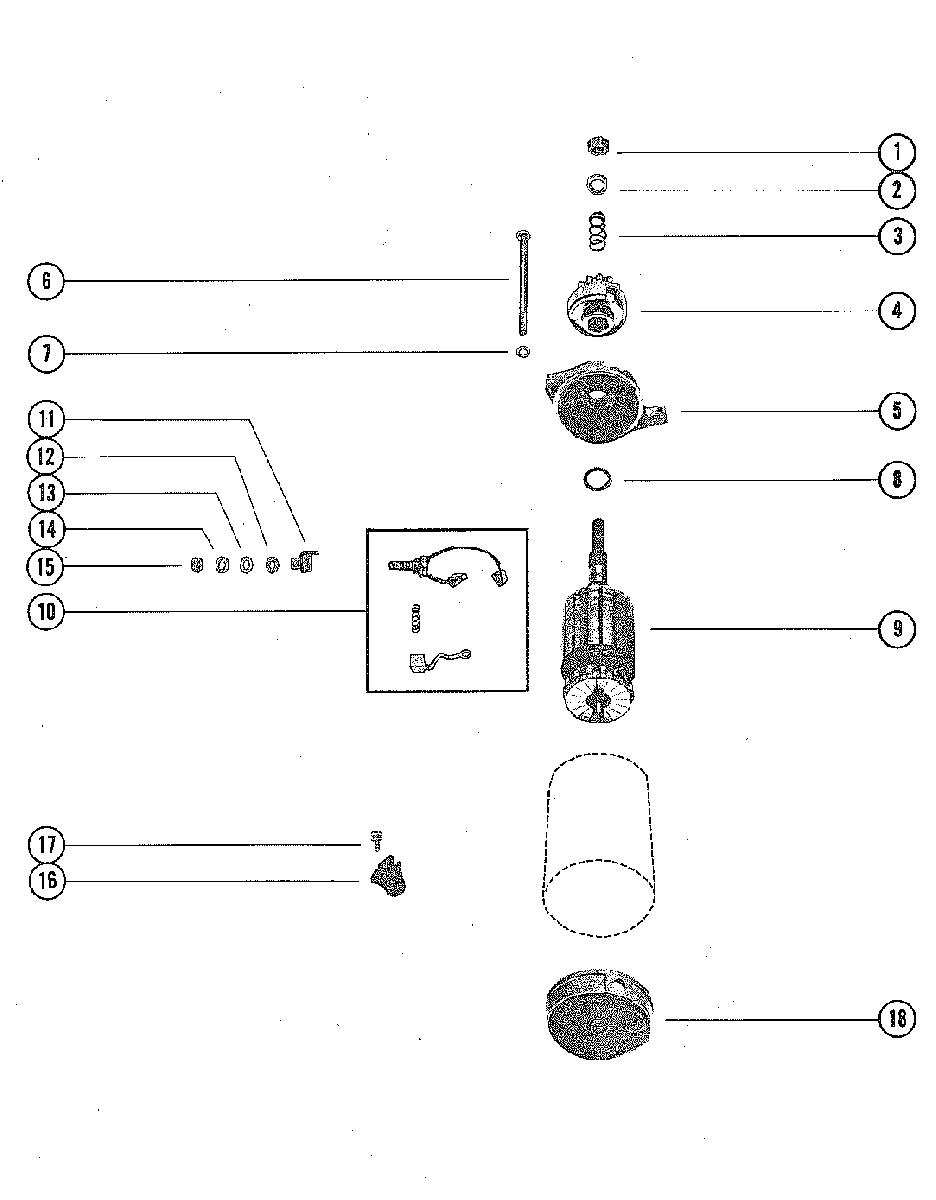

STARTER MOTOR ASSEMBLY, COMPLETE для Mariner - 80 4842729 THRU 5763340

  • №
    Артикул
    Название
  • -
    50-893891T STARTER MOTOR ASSEMBLY, COMPLETE
    STARTER MOTOR ASSEMBLY, COMPLETE
  • 1
    11-68580 NUT, RETAINING-DRIVE ASSEMBLY
    NUT, RETAINING-DRIVE ASSEMBLY
  • 2
    23-61788 SPACER, DRIVE ASSEMBLY
    SPACER, DRIVE ASSEMBLY
  • 3
    24-75378 SPRING, ANTI DRIFT
    SPRING, ANTI DRIFT
  • 4
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 5
    75660 PLATE ASSEMBLY, DRIVE END
    PLATE ASSEMBLY, DRIVE END
  • 6
    10-75385 BOLT, THRU-PLATE TO END CAP
    BOLT, THRU-PLATE TO END CAP
  • 7
    13-61789 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
  • 8
    12-57383 WASHER, THRUST-ARMATURE
    WASHER, THRUST-ARMATURE
  • 9
    75386 ARMATURE
    ARMATURE
  • 10
    898265016 BRUSH SET
    BRUSH SET
  • 11
    23-57387 BUSHING, INSULATING-INPUT STUD
    BUSHING, INSULATING-INPUT STUD
  • 12
    12-57388 WASHER, INSULATING-INPUT STUD
    WASHER, INSULATING-INPUT STUD
  • 13
    12-38013 WASHER, INPUT STUD
    WASHER, INPUT STUD
  • 14
    13-26992 LOCKWASHER, INPUT STUD
    LOCKWASHER, INPUT STUD
  • 15
    11-20890 NUT, INPUT STUD
    NUT, INPUT STUD
  • 16
    898265014 HOLDER, BRUSH
    HOLDER, BRUSH
  • 17
    10-68586 SCREW, BRUSH AND HOLDER TO CAP
    SCREW, BRUSH AND HOLDER TO CAP
  • 18
    15386001 END CAP ASSEMBLY, COMMUTATOR
    END CAP ASSEMBLY, COMMUTATOR
