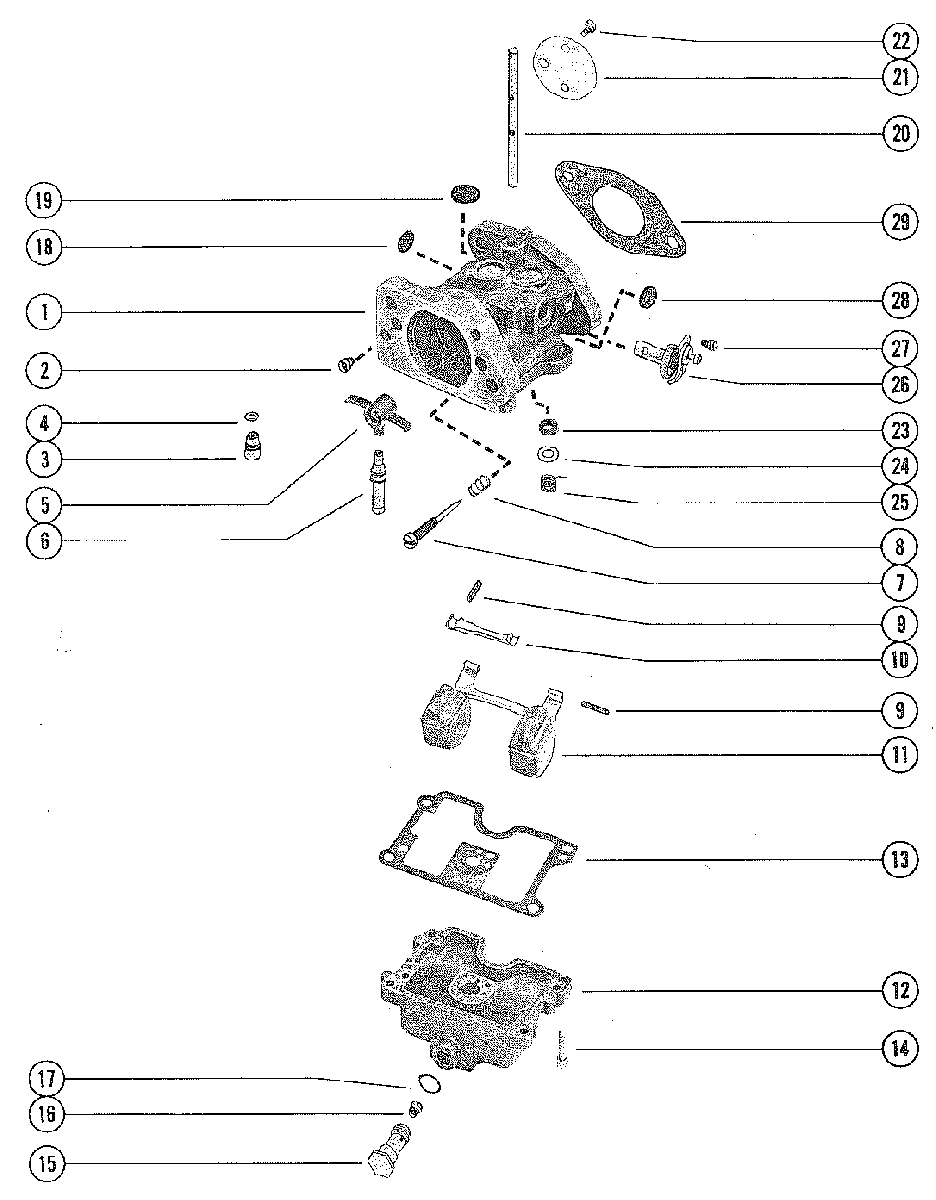

CARBURETOR ASSEMBLY для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
11379-6071A57 CARVURETOR ASSEMBLY, COMPLETE (TOP)CARVURETOR ASSEMBLY, COMPLETE (TOP)
-
11379-6071A58 CARBURETOR ASSEMBLY, COMPLETE (BOTTOM)CARBURETOR ASSEMBLY, COMPLETE (BOTTOM)
-
21395-6207 JET, VENT BOWL (.072)JET, VENT BOWL (.072)
-
31395-83181 INLET NEEDLE AND SEATINLET NEEDLE AND SEAT
-
490-8M0143356 GASEKT, INLET NEEDLE AND SEATGASEKT, INLET NEEDLE AND SEAT
-
51395-6685 VENTURIVENTURI
-
690-8M0143356 NOZZLENOZZLE
-
790-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
890-8M0143356 SPRING, IDLE MIXTURESPRING, IDLE MIXTURE
-
990-8M0143356 PIN, FLOATPIN, FLOAT
-
1090-8M0143356 LEVER, FLOATLEVER, FLOAT
-
1119273 FLOATFLOAT
-
121395-6488 FUEL BOWLFUEL BOWL
-
1390-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
1490-8M0143356 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
151395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
161395-6247 JET, MIAN (.090)JET, MIAN (.090)
-
1790-8M0143356 GASKET, MAIN JET PLUGGASKET, MAIN JET PLUG
-
1890-8M0143356 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
1990-8M0143356 WELCH PLUG (9/16")WELCH PLUG (9/16")
-
201395-4807 SHAFT, THROTTLESHAFT, THROTTLE
-
211395-6196 VALVE, THROTTLEVALVE, THROTTLE
-
2290-8M0143356 SCREW, VALVE TO THROTTLE SHAFTSCREW, VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
2590-8M0143356 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
2790-8M0143356 SCREW, ENRICHMENT BRACKETSCREW, ENRICHMENT BRACKET
-
2890-8M0143356 WELCH PLUG (7/16")WELCH PLUG (7/16")
-
2927-733771 GASKET, CARBURETORGASKET, CARBURETOR
-
--1395-6200 GASKET KITGASKET KIT
-
--812953 REPAIR PARTS KITREPAIR PARTS KIT
