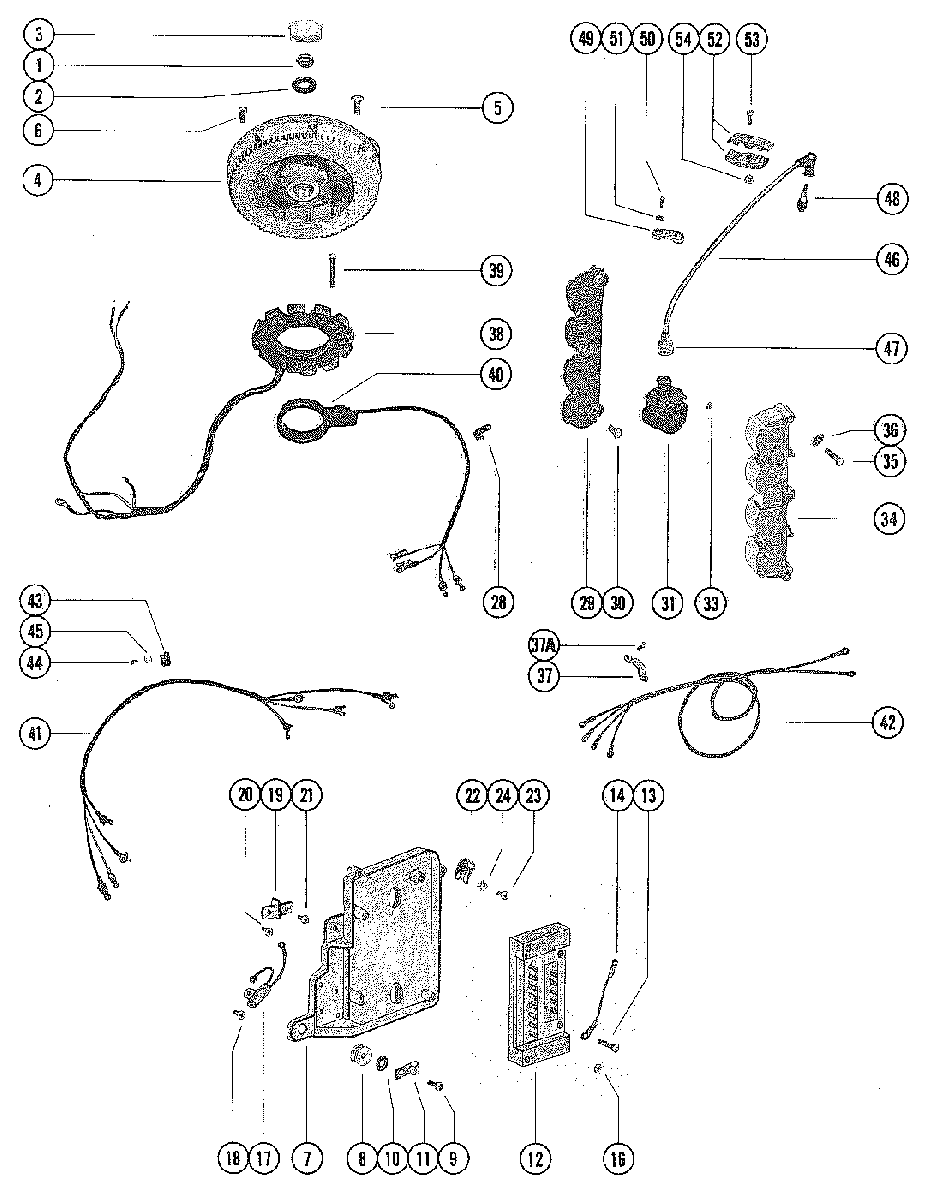

FLYWHEEL, STATOR AND IGNITION COIL для Mariner - 80 4842729 THRU 5763340

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 5144546 AND BELOW
    FLYWHEEL ASSEMBLY
    UNITED STATES 5144546 AND BELOW
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 5144547 AND UP
    FLYWHEEL ASSEMBLY
    UNITED STATES 5144547 AND UP
  • 5
    10-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
    SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 7
    90332 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 9
    10-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
    SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
  • 10
    12-56720 WASHER, SWITCH BOX PLATE SCREW
    WASHER, SWITCH BOX PLATE SCREW
  • 11
    54-47483 "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
    "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
  • 12
    332-5772A7 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 13
    10-20619 SCREW, SWITCH BOX TO PLATE (1 3/8")
    SCREW, SWITCH BOX TO PLATE (1 3/8")
  • 14
    84-65999A5 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 16
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 17
    58124A19 MERCURY SWITCH ASSEMBLY
    MERCURY SWITCH ASSEMBLY
  • 18
    10-37571 SCREW, MERCURY SWITCH TO PLATE (1/2")
    SCREW, MERCURY SWITCH TO PLATE (1/2")
  • 19
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 20
    10-38055 SCREW, TERMINAL BLOCK TO PLATE (5/8")
    SCREW, TERMINAL BLOCK TO PLATE (5/8")
  • 21
    10-37655 SCREW, WIRE TO TERMINAL BLOCK (1/2")
    SCREW, WIRE TO TERMINAL BLOCK (1/2")
  • 22
    54-23567 CLIP, WIRES AND HARNESS
    CLIP, WIRES AND HARNESS
  • 23
    10-48408 SCREW, CLIP TO PLATE (3/8")
    SCREW, CLIP TO PLATE (3/8")
  • 24
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 28
    54-47483 "J" CLAMP, TRIGGER PLATE HARNESS
    "J" CLAMP, TRIGGER PLATE HARNESS
  • 29
    73395 PLATE, MOUNTING - IGNITION COIL
    PLATE, MOUNTING - IGNITION COIL
  • 30
    10-28668 SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
    SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
  • 31
    339-5288T2 IGNITION COIL ASSEMBLY
    UNITED STATES 5144546 AND BELOW
    IGNITION COIL ASSEMBLY
    UNITED STATES 5144546 AND BELOW
  • 31
    339-832757A4 IGNITION COIL ASSEMBLY
    UNITED STATES 5144547 AND UP
    IGNITION COIL ASSEMBLY
    UNITED STATES 5144547 AND UP
  • 33
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 34
    87554 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 35
    10-88856 SCREW, COVER TO MOUNTING PLATE (2")
    SCREW, COVER TO MOUNTING PLATE (2")
  • 36
    12-30164 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 37
    77672 STRAP, PRIMARY HARNESS
    STRAP, PRIMARY HARNESS
  • 37A
    10-48408 SCREW, STRAP ATTACHING
    SCREW, STRAP ATTACHING
  • 38
    398-5454A26 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 39
    10-75840 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 40
    96453A2 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 41
    84-77617 HARNESS, PRIMARY (CYLINDERS 1 AND 2)
    HARNESS, PRIMARY (CYLINDERS 1 AND 2)
  • 42
    84-77618 HARNESS, PRIMARY (CYLINDERS 3 AND 4)
    HARNESS, PRIMARY (CYLINDERS 3 AND 4)
  • 43
    54-45806 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 44
    10-48408 SCREW, CLAMP TO CRANKCASE (1/2")
    SCREW, CLAMP TO CRANKCASE (1/2")
  • 45
    8M0084613 "D" WASHER, HARNESS CLAMP SCREW
    "D" WASHER, HARNESS CLAMP SCREW
  • 46
    84-813715A1 WIRE ASSEMBLY, SPARK PLUG
    WIRE ASSEMBLY, SPARK PLUG
  • 47
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 48
    33-97182Q SPARK PLUG (AC#V40FFK)
    FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V)
    SPARK PLUG (AC#V40FFK)
    FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V)
  • 49
    78278 RETAINER, WIRE
    RETAINER, WIRE
  • 50
    10-48408 SCREW, WIRE RETAINER
    SCREW, WIRE RETAINER
  • 51
    12-21273 WASHER, WIRE RETAINER SCREW
    WASHER, WIRE RETAINER SCREW
  • 52
    63319 RETAINER, SPARK PLUG WIRE
    RETAINER, SPARK PLUG WIRE
  • 53
    10-46378 SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
    SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
  • 54
    11-20013 NUT, RETAINER SCREW
    NUT, RETAINER SCREW
