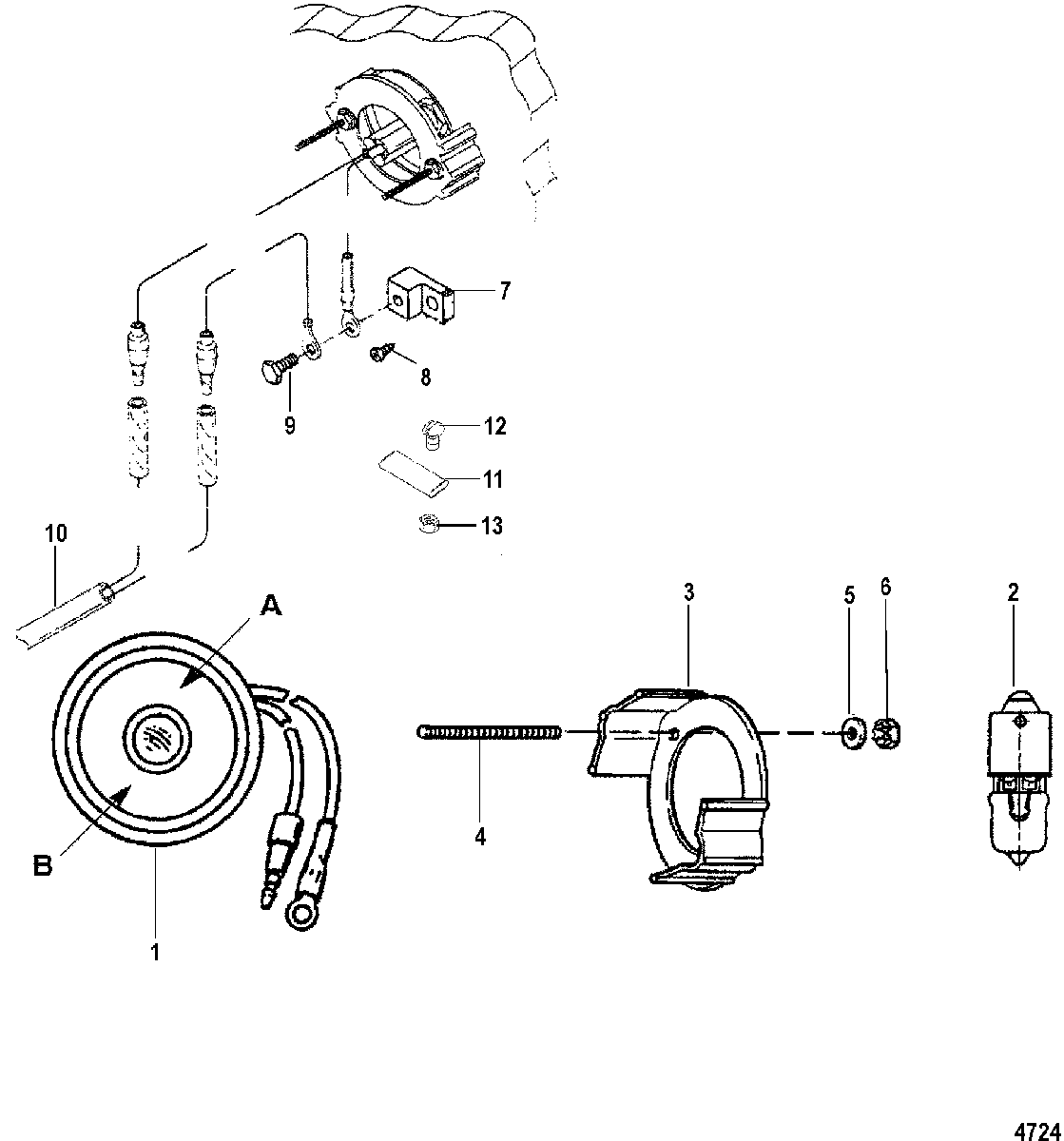

Visual Warning для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    17334A4 PLATE ASSEMBLY, Lamp Mounting
    PLATE ASSEMBLY, Lamp Mounting
  • 2
    88-17429 LAMP
    LAMP
  • 3
    76424 BRACKET
    BRACKET
  • 4
    16-55422 STUD, (#10-32 x 2.00)
    STUD, (#10-32 x 2.00)
  • 5
    12-24676 WASHER, (.200 x .440 x .032)
    WASHER, (.200 x .440 x .032)
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 8
    10-16324 SCREW, (#8 x .625)
    SCREW, (#8 x .625)
  • 9
    10-878607 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 10
    84-11149A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 11
    85-623594 INSULATOR, (2.00 Inch)
    INSULATOR, (2.00 Inch)
  • 12
    10-24231 SCREW, (#10-32 x .250)
    SCREW, (#10-32 x .250)
  • 13
    11-27164 NUT AND LOCKWASHER, (#10-32)
    NUT AND LOCKWASHER, (#10-32)
