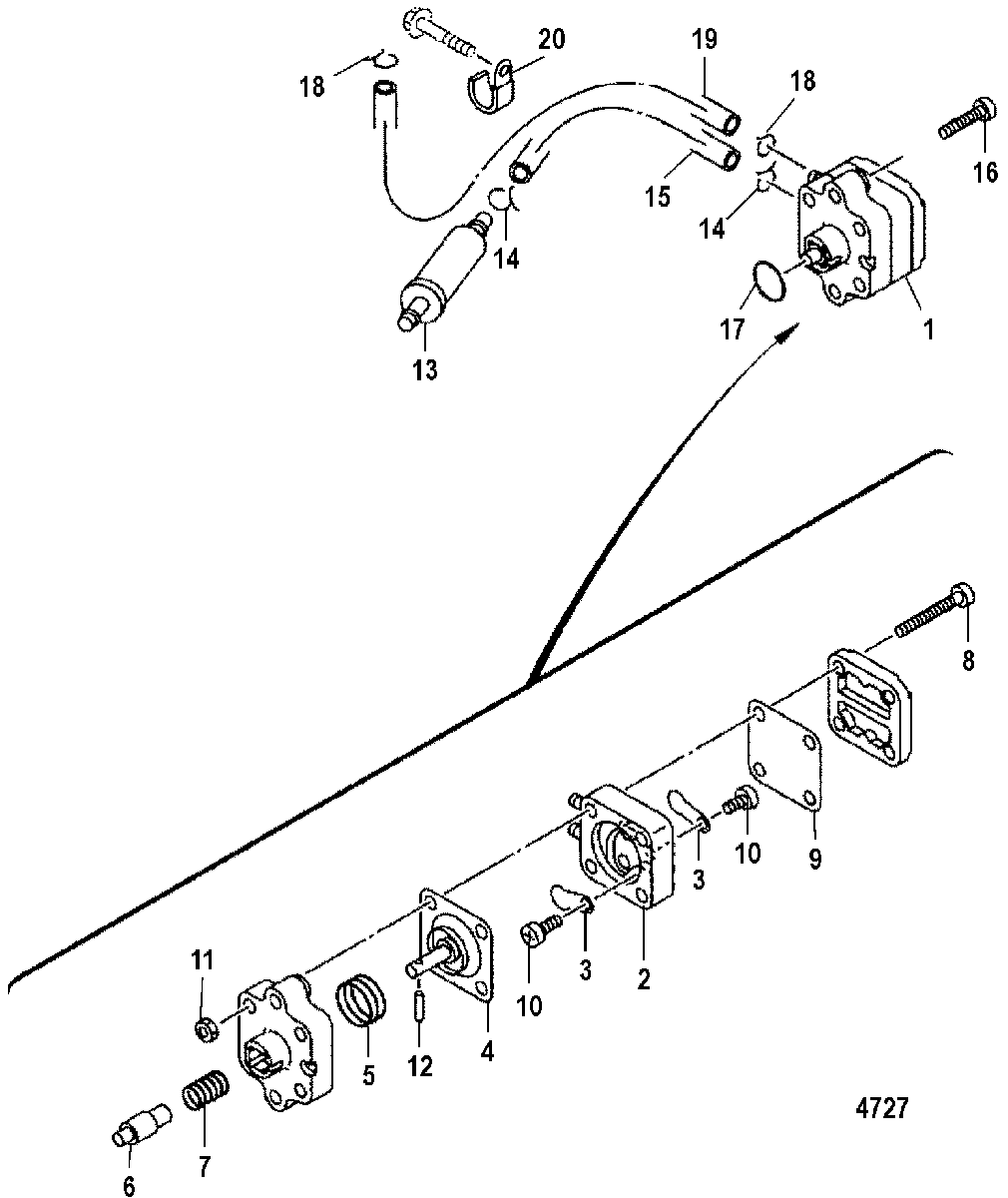

Fuel Pump для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    835389T02 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 3
    21-41888M CHECK VALVE
    CHECK VALVE
  • 4
    809561A01 DIAPHRAGM
    DIAPHRAGM
  • 5
    24-8095622 SPRING
    SPRING
  • 6
    8095632 PLUNGER
    PLUNGER
  • 7
    24-8095623 SPRING
    SPRING
  • 8
    10-8095641 SCREW, (M4 x 30)
    SCREW, (M4 x 30)
  • 9
    809561A01 DIAPHRAGM
    DIAPHRAGM
  • 10
    10-41889M SCREW, (M3 x 5)
    SCREW, (M3 x 5)
  • 11
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 12
    17-8095662 PIN
    PIN
  • 13
    35-816296A3 FILTER, Fuel, To Fuel Connector
    SN# 0T003862 & Up
    FILTER, Fuel, To Fuel Connector
    SN# 0T003862 & Up
  • 13
    35-80365M FILTER, To Fuel Connector
    SN# 0T003861 & Below
    FILTER, To Fuel Connector
    SN# 0T003861 & Below
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    SN# 0T003862 & Up
    TIE STRAP, (8.00 Inches)
    SN# 0T003862 & Up
  • 14
    54-82047M CLAMP
    SN# 0T003861 & Below
    CLAMP
    SN# 0T003861 & Below
  • 15
    32-896273 HOSE, Molded
    SN# 0T003862 & Up
    HOSE, Molded
    SN# 0T003862 & Up
  • 15
    32-8M0060021 HOSE (2.44 Inches)
    SN# 0T003861 & Below
    HOSE (2.44 Inches)
    SN# 0T003861 & Below
  • 16
    10-855683 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 17
    25-825478 O-RING
    O-RING
  • 18
    54-82047M CLAMP
    CLAMP
  • 19
    32-8M0053527 HOSE, To Carb
    HOSE, To Carb
  • 20
    54-83577M CLAMP
    CLAMP
  • -
    27-835427A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
