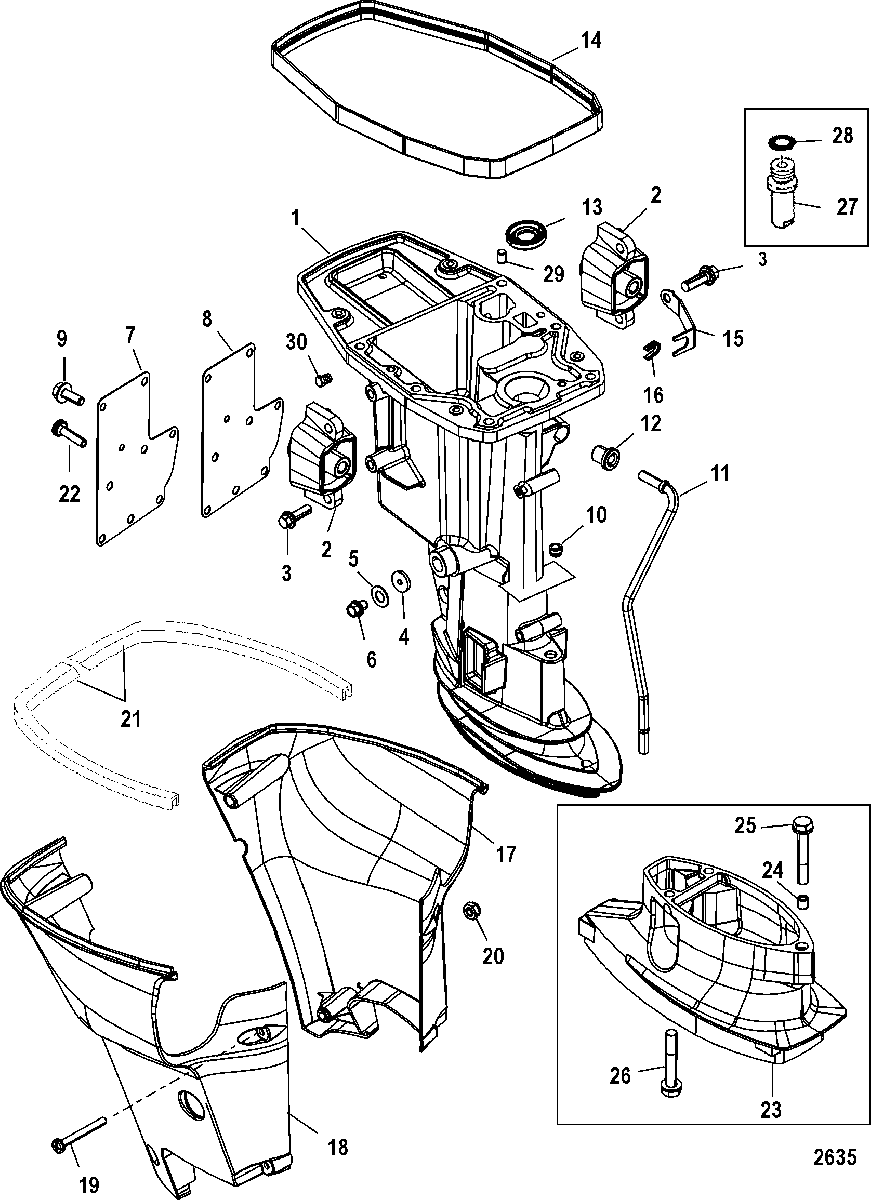

Driveshaft Housing для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    1505-852995F1 HOUSING, Driveshaft
    (Short Non-Bigfoot) (Long Bigfoot)
    HOUSING, Driveshaft
    (Short Non-Bigfoot) (Long Bigfoot)
  • 1
    1506-835409T1 HOUSING, Driveshaft
    (Long Non-Bigfoot)(X-Long BigfootI)
    HOUSING, Driveshaft
    (Long Non-Bigfoot)(X-Long BigfootI)
  • 2
    835410T2 MOUNT, Upper
    SN# USA-0T800999/BEL-0P267999 & Below
    MOUNT, Upper
    SN# USA-0T800999/BEL-0P267999 & Below
  • 2
    835410T2 MOUNT, Upper
    SN# USA-0T801000/BEL-0P268000 & Up
    MOUNT, Upper
    SN# USA-0T801000/BEL-0P268000 & Up
  • 2
    856157T MOUNT, Upper
    (Bigfoot)
    MOUNT, Upper
    (Bigfoot)
  • 3
    10-8136911 SCREW, (M8 x .98)
    SCREW, (M8 x .98)
  • 4
    826276 BUMPER
    BUMPER
  • 5
    27-828816 GASKET
    GASKET
  • 6
    8288181 PLUG, Drain
    PLUG, Drain
  • 7
    853577T COVER
    COVER
  • 8
    27-854617 GASKET
    GASKET
  • 9
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 10
    26-827947 SEAL
    SEAL
  • 11
    32-852993 TUBE, Water
    (Short)
    TUBE, Water
    (Short)
  • 11
    32-855260 TUBE, Water
    (Long)
    TUBE, Water
    (Long)
  • 11
    32-855252 TUBE, Water
    (Long Bigfoot)
    TUBE, Water
    (Long Bigfoot)
  • 11
    32-855253 TUBE, Water
    (X-Long Bigfoot)
    TUBE, Water
    (X-Long Bigfoot)
  • 12
    26-8272411 SEAL
    SEAL
  • 13
    26-413651 SEAL, Oil
    SEAL, Oil
  • 14
    852432 SEAL
    SEAL
  • 15
    856179 BRACKET
    BRACKET
  • 16
    856196 SLEEVE
    SLEEVE
  • 17
    850862F2 COVER
    (Port) (Black)
    COVER
    (Port) (Black)
  • 18
    850863F2 COVER
    (Starboard) (Black)
    COVER
    (Starboard) (Black)
  • 19
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 20
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 21
    8224211 BUMPER
    BUMPER
  • 22
    25-855299 GROMMET
    GROMMET
  • 23
    853963F1 ADAPTOR
    (Black) (Bigfoot)
    ADAPTOR
    (Black) (Bigfoot)
  • 24
    23-12009 BUSHING, (.31 x .45 x .50)
    (Bigfoot)
    BUSHING, (.31 x .45 x .50)
    (Bigfoot)
  • 25
    10-82407110 SCREW, (M8 x 50)
    (Bigfoot)
    SCREW, (M8 x 50)
    (Bigfoot)
  • 26
    10-8240717 SCREW, (M8 x 30)
    (Bigfoot)
    SCREW, (M8 x 30)
    (Bigfoot)
  • 27
    825578A1 RELIEF VALVE ASSEMBLY
    RELIEF VALVE ASSEMBLY
  • 28
    25-825579 O-RING
    O-RING
  • 29
    17-82364M PIN, Dowel
    PIN, Dowel
  • 30
    22-68307 PLUG
    PLUG
