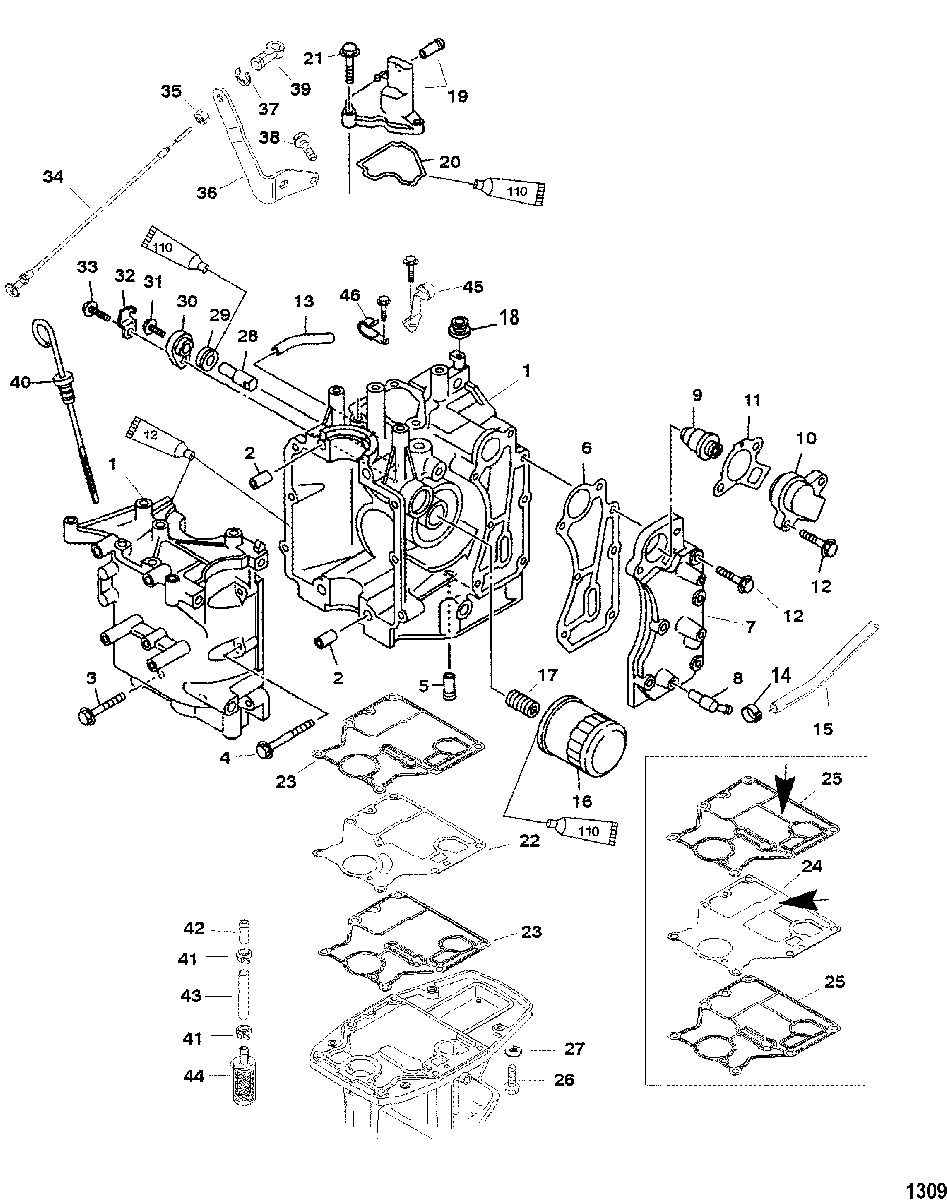

Cylinder Block and Covers для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    900-8M0055024 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    17-825689 PIN, Dowel
    PIN, Dowel
  • 3
    10-8M0101617 BOLT, (M8 x 55)
    BOLT, (M8 x 55)
  • 4
    10-43092M BOLT, (M6 x 14)
    BOLT, (M6 x 14)
  • 5
    22-822644 PIPE PLUG
    PIPE PLUG
  • 6
    27-834952002 GASKET
    GASKET
  • 7
    834953T02 COVER, Exhaust
    COVER, Exhaust
  • 8
    22-83326M FITTING
    FITTING
  • 9
    825212A1 THERMOSTAT, (60C/140F)
    SN# USA-0T979999/BEL-0P325499 & Below
    THERMOSTAT, (60C/140F)
    SN# USA-0T979999/BEL-0P325499 & Below
  • 9
    825212A1 THERMOSTAT, (60C/140F)
    SN# USA-0T980000/BEL-0P325500 & Up
    THERMOSTAT, (60C/140F)
    SN# USA-0T980000/BEL-0P325500 & Up
  • 10
    8M0008243 COVER, Thermostat
    COVER, Thermostat
  • 11
    27-824853 GASKET
    GASKET
  • 12
    10-82500930 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 13
    8M0060022 HOSE
    HOSE
  • 14
    54-888441 CLAMP
    SN# USA-0T800999/BEL-0P267999 & Below
    CLAMP
    SN# USA-0T800999/BEL-0P267999 & Below
  • 14
    54-888441 CLAMP, Oetiker (12.8 mm)
    SN# USA-0T801000/BEL-0P268000 & Up
    CLAMP, Oetiker (12.8 mm)
    SN# USA-0T801000/BEL-0P268000 & Up
  • 15
    32-8M0108355 HOSE, (57.00 Inches Bulk), To Telltale
    (Cut to 14 Inch Length) SN# USA-0T003862 & Up
    HOSE, (57.00 Inches Bulk), To Telltale
    (Cut to 14 Inch Length) SN# USA-0T003862 & Up
  • 15
    32-8M0108355 HOSE, (57.00 Inches Bulk), To Telltale
    (Cut to 16 Inch Length) SN# USA-0T003861 & Below
    HOSE, (57.00 Inches Bulk), To Telltale
    (Cut to 16 Inch Length) SN# USA-0T003861 & Below
  • 16
    35-822626Q03 FILTER, Oil
    SN# USA-0T800999/BEL-0P267999 & Below
    FILTER, Oil
    SN# USA-0T800999/BEL-0P267999 & Below
  • 16
    35-822626Q03 FILTER ASSEMBLY, Oil
    SN# USA-0T801000/BEL-0P268000 & Up
    FILTER ASSEMBLY, Oil
    SN# USA-0T801000/BEL-0P268000 & Up
  • 17
    822625 NIPPLE, (M20)
    NIPPLE, (M20)
  • 18
    25-855690 GROMMET
    GROMMET
  • 19
    834974 BREATHER COVER
    BREATHER COVER
  • 20
    26-850850 SEAL
    SEAL
  • 21
    10-8257021 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 22
    855922A2 PLATE, Oil Deflection
    SN# USA-0G960500 & Up
    PLATE, Oil Deflection
    SN# USA-0G960500 & Up
  • 23
    27-8354272 GASKET
    SN# USA-0G960500 & Up
    GASKET
    SN# USA-0G960500 & Up
  • 24
    855922A2 PLATE, Oil Deflection
    SN# USA-0G960499 & Below
    PLATE, Oil Deflection
    SN# USA-0G960499 & Below
  • 25
    855922A2 GASKET
    SN# USA-0G960500 & Below
    GASKET
    SN# USA-0G960500 & Below
  • 26
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 27
    12-4002317 WASHER
    WASHER
  • 28
    97-8M0099896 ANODE
    ANODE
  • 29
    25-825040 GROMMET
    GROMMET
  • 30
    855776 COVER
    COVER
  • 31
    10-855778 BOLT, (M5 x 12)
    BOLT, (M5 x 12)
  • 32
    855779 PLATE
    PLATE
  • 33
    10-8257021 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 34
    8533442 CABLE, Choke
    (Handle)
    CABLE, Choke
    (Handle)
  • 35
    11-46335 NUT, (.375-24)
    (Handle)
    NUT, (.375-24)
    (Handle)
  • 36
    855732 BRACKET
    (Handle)
    BRACKET
    (Handle)
  • 37
    53-27290 RING, Retaining
    (Handle)
    RING, Retaining
    (Handle)
  • 38
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    (Handle)
    SCREW, (M6 x 13) Stainless Steel
    (Handle)
  • 39
    817428 SOCKET
    (Handle)
    SOCKET
    (Handle)
  • 40
    19-8354262 DIPSTICK
    DIPSTICK
  • 41
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 42
    22-8830591 PIPE JOINT
    PIPE JOINT
  • 43
    32-896122 HOSE
    SN# USA-0T979999/BEL-0P325499 & Below
    HOSE
    SN# USA-0T979999/BEL-0P325499 & Below
  • 43
    32-896122 HOSE
    SN# USA-0T980000/BEL-0P325500 & Up
    HOSE
    SN# USA-0T980000/BEL-0P325500 & Up
  • 44
    852484 SCREEN, Oil
    SCREEN, Oil
  • 45
    54-8556951 CLAMP
    CLAMP
  • 46
    54-8556961 CLAMP
    CLAMP
  • -
    802733A98 POWERHEAD ASSEMBLY
    (Electric)
    POWERHEAD ASSEMBLY
    (Electric)
  • -
    802733A98 POWERHEAD ASSEMBLY
    (Manual) SN# USA-0T178499 & Below
    POWERHEAD ASSEMBLY
    (Manual) SN# USA-0T178499 & Below
  • -
    879783A01 POWERHEAD ASSEMBLY
    (Manual) SN# USA-0T178500/BEL-0P094500 & Up
    POWERHEAD ASSEMBLY
    (Manual) SN# USA-0T178500/BEL-0P094500 & Up
  • -
    27-835427A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
