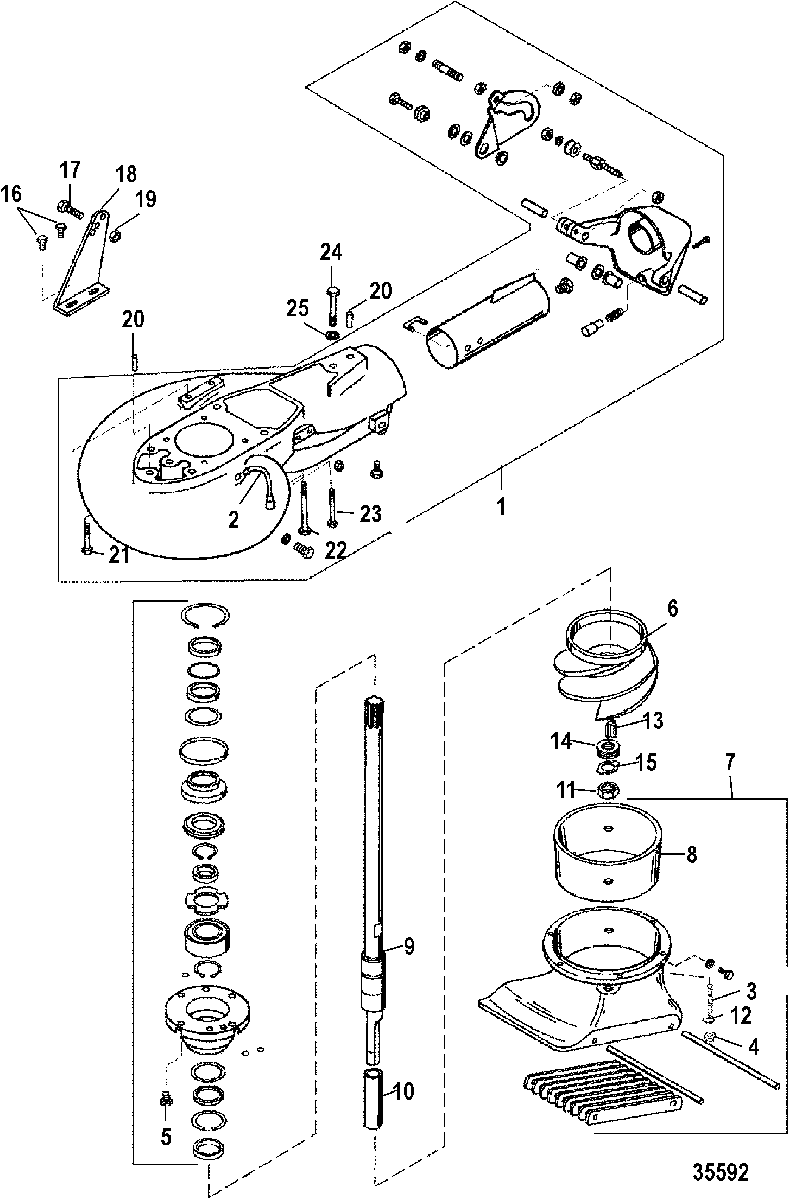

Jet Pump Assembly для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • -
    856143A6 JET PUMP ASSEMBLY
    JET PUMP ASSEMBLY
  • 1
    855767T60 HOUSING, Pump
    HOUSING, Pump
  • 2
    32-827490 HOSE, Lube
    HOSE, Lube
  • 3
    16-855840 STUD, (.312-18 x 1.81)
    STUD, (.312-18 x 1.81)
  • 4
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 5
    10-848497 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 6
    47-855708T60 IMPELLER
    IMPELLER
  • 7
    80141260 HOUSING, Intake
    HOUSING, Intake
  • 8
    8271882 LINER
    LINER
  • 9
    45-85576960 DRIVESHAFT
    DRIVESHAFT
  • 10
    23-8271891 SLEEVE
    SLEEVE
  • 11
    11-8271901 NUT
    NUT
  • 12
    12-36001 WASHER
    WASHER
  • 13
    28-801405875 KEY
    KEY
  • 14
    15-801404875 SHIM, Impeller
    SHIM, Impeller
  • 15
    14-801403875 TAB WASHER
    TAB WASHER
  • 16
    10-19923062 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 17
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 18
    801410 BRACKET, Cable Support
    BRACKET, Cable Support
  • 19
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 20
    17-801407 PIN, Dowel
    PIN, Dowel
  • 21
    10-4010860 SCREW, (M10 x 60) Hex Flange - Stainless Steel
    SCREW, (M10 x 60) Hex Flange - Stainless Steel
  • 22
    10-4010890 SCREW, (M10 x 90) Hex Flange - Stainless Steel
    SCREW, (M10 x 90) Hex Flange - Stainless Steel
  • 23
    10-4010870 SCREW, (M10 x 70) Hex Flange - Stainless Steel
    SCREW, (M10 x 70) Hex Flange - Stainless Steel
  • 24
    10-95802 SCREW, (.375-16 x 2.750) Stainless Steel
    SCREW, (.375-16 x 2.750) Stainless Steel
  • 25
    12-856774 WASHER, (.406 x .750 x .104)
    WASHER, (.406 x .750 x .104)
