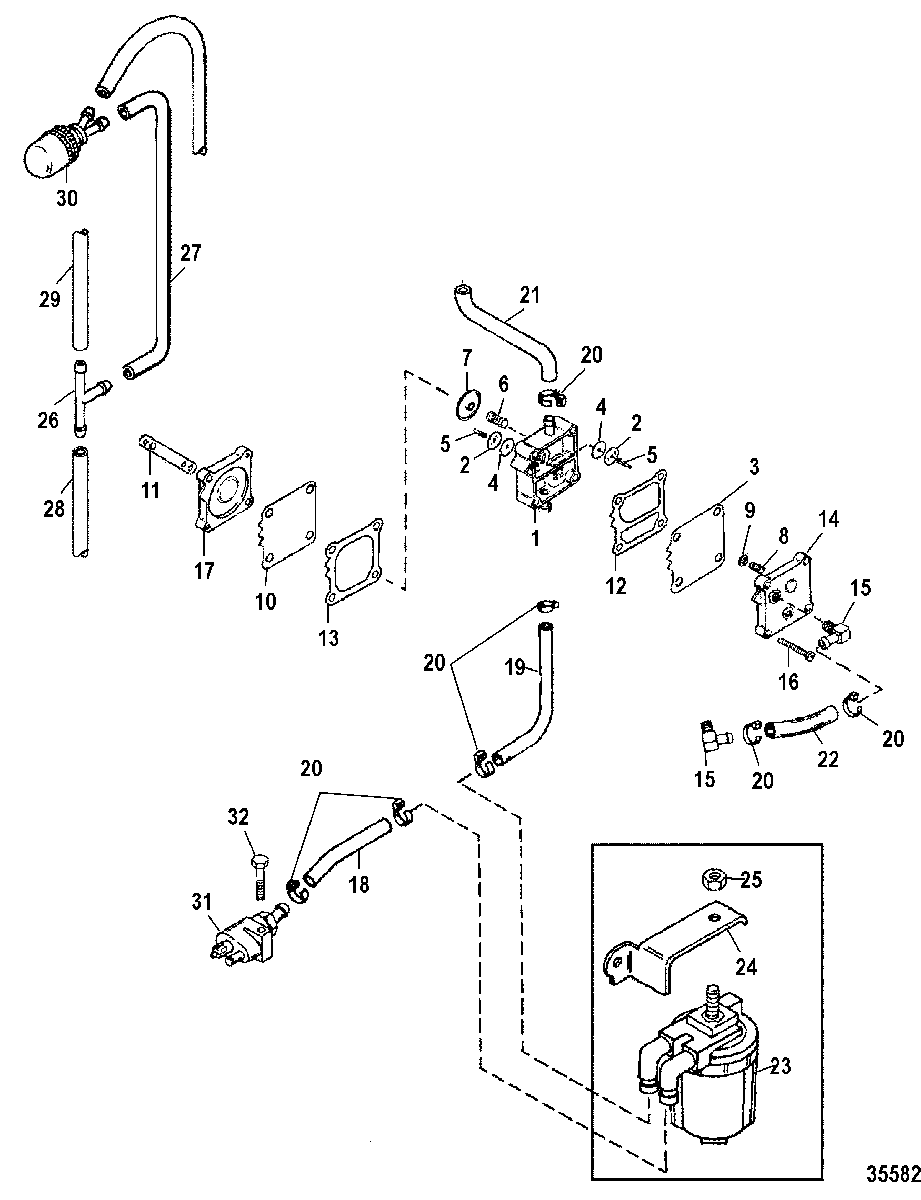

Fuel Pump, Manual для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHAGM KIT
    DIAPHAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 5
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 9
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 10
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 11
    27-987691 GASKET
    GASKET
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 13
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 14
    987752 PLATE
    PLATE
  • 15
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 16
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 16
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 17
    144303 BASE
    BASE
  • 18
    32-8M0108349 TUBING, (28.00 Inches Bulk) (10 IN.)
    TUBING, (28.00 Inches Bulk) (10 IN.)
  • 19
    32-8M0108349 TUBING, (28.00 Inches Bulk) (14-1/4 IN.)
    TUBING, (28.00 Inches Bulk) (14-1/4 IN.)
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    32-830768 HOSE
    HOSE
  • 22
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (4-1/4 IN.)
    HOSE, (.187) (26.00 Inches Bulk) (4-1/4 IN.)
  • 23
    35-8M0063726 FILTER ASSEMBLY, Fuel
    FILTER ASSEMBLY, Fuel
  • 24
    8170281 BRACKET
    BRACKET
  • 25
    11-401196 NUT, (M6)
    NUT, (M6)
  • 26
    22-59169003 FITTING
    FITTING
  • 27
    32-892024122 TUBING, (20.00 Feet Bulk) (9-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (9-1/2 IN.)
  • 28
    32-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
  • 29
    32-892024122 TUBING, (20.00 Feet Bulk) (1-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (1-1/2 IN.)
  • 30
    858763 PRIMER BULB
    PRIMER BULB
  • 31
    22-816856T01 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • 32
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    852071T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
