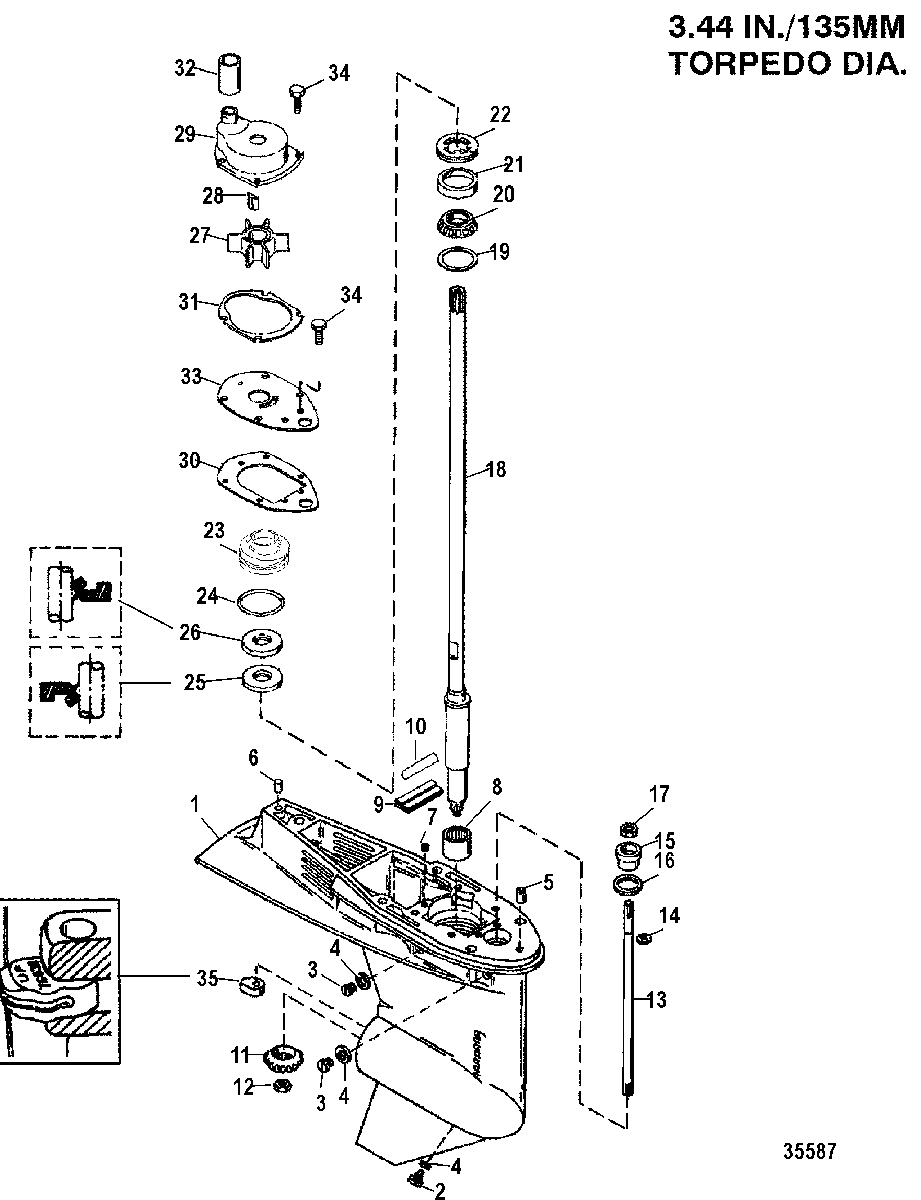

Gear Housing, Driveshaft - 1.64:1 Gear Ratio для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • -
    1671-9760T23 GEAR HOUSING ASSEMBLY
    (BLACK) SHORT
    GEAR HOUSING ASSEMBLY
    (BLACK) SHORT
  • -
    1671-9760A24 GEAR HOUSING ASSEMBLY
    (GRAY) SHORT
    GEAR HOUSING ASSEMBLY
    (GRAY) SHORT
  • -
    1671-9760T25 GEAR HOUSING ASSEMBLY
    (BLACK) LONG
    GEAR HOUSING ASSEMBLY
    (BLACK) LONG
  • -
    1671-9760T25 GEAR HOUSING ASSEMBLY
    (GRAY) LONG
    GEAR HOUSING ASSEMBLY
    (GRAY) LONG
  • -
    1671-9760T28 GEAR HOUSING ASSEMBLY
    (BLACK) X-LONG
    GEAR HOUSING ASSEMBLY
    (BLACK) X-LONG
  • -
    1671-9760T29 GEAR HOUSING ASSEMBLY
    (GRAY) X-LONG
    GEAR HOUSING ASSEMBLY
    (GRAY) X-LONG
  • 1
    1671-9760T42 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1671-9760T42 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 2
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 3
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 4
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 5
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 6
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 7
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 8
    31-812768 BEARING, Roller
    BEARING, Roller
  • 9
    818226A1 SEAL/PLATE KIT
    SEAL/PLATE KIT
  • 10
    NSS NOT SOLD SEPARATE, Filler Plate
    NOT SOLD SEPARATE, Filler Plate
  • 11
    43-813694T GEAR, Pinion (14 TEETH)
    GEAR, Pinion (14 TEETH)
  • 12
    11-55910 NUT, (.437-20)
    NUT, (.437-20)
  • 13
    812732A1 SHIFT SHAFT ASSEMBLY
    (SHORT/LONG)
    SHIFT SHAFT ASSEMBLY
    (SHORT/LONG)
  • 13
    815420 SHIFT SHAFT
    (X-LONG)
    SHIFT SHAFT
    (X-LONG)
  • 14
    53-29641 E RING
    E RING
  • 15
    23-813696A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 16
    25-45258 O-RING, (.987 x .103)
    O-RING, (.987 x .103)
  • 17
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 18
    45-815422 DRIVESHAFT
    (SHORT) 60 ELECTRIC
    DRIVESHAFT
    (SHORT) 60 ELECTRIC
  • 18
    45-812731 DRIVESHAFT
    (LONG) 60 ELECTRIC
    DRIVESHAFT
    (LONG) 60 ELECTRIC
  • 18
    45-815421 DRIVESHAFT
    (X-LONG) 60 ELECTRIC
    DRIVESHAFT
    (X-LONG) 60 ELECTRIC
  • 18
    45-812731 DRIVESHAFT
    (55 MANUAL)
    DRIVESHAFT
    (55 MANUAL)
  • 19
    15-8M0063262 SHIM SET
    SHIM SET
  • 20
    31-77420A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 21
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 22
    11-8128201 NUT
    NUT
  • 23
    46-812966A7 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 24
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 25
    26-814669 SEAL, Oil
    SEAL, Oil
  • 26
    26-814670 SEAL, Oil
    SEAL, Oil
  • 27
    47-19453T IMPELLER
    IMPELLER
  • 28
    28-8M0032831 KEY
    KEY
  • 29
    46-812966A12 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 30
    27-8M4502052 GASKET
    (LOWER)
    GASKET
    (LOWER)
  • 30
    27-8M4502052 GASKET
    (EXPORT - HIGH SULFUR LEADED FUELS/ WARM WATER)
    GASKET
    (EXPORT - HIGH SULFUR LEADED FUELS/ WARM WATER)
  • 31
    27-822189 GASKET, Upper Water Pump
    GASKET, Upper Water Pump
  • 32
    43023 SEAL
    (SHORT/LONG)
    SEAL
    (SHORT/LONG)
  • 33
    19700A2 FACE PLATE
    FACE PLATE
  • 34
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 35
    760394 CAM, Shift Control
    CAM, Shift Control
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    46-812966A12 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-814669A2 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
