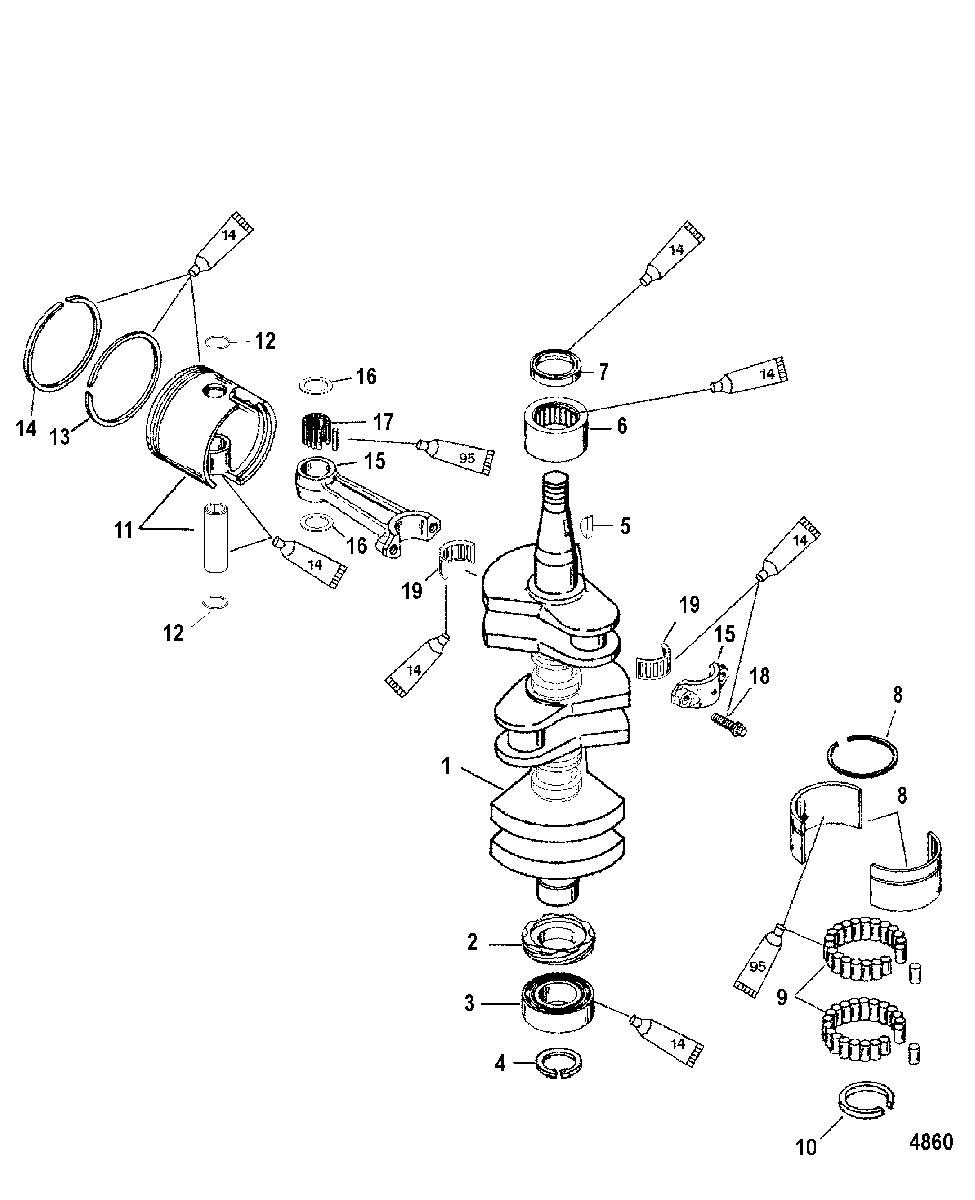

Crankshaft, Pistons and Connecting Rods для Mariner - 60 (3 CYL.) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    2411-827954T2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    43-43019A2 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 3
    30-63742T BEARING, Ball
    BEARING, Ball
  • 4
    53-812877 RING, Retaining
    RING, Retaining
  • 5
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 6
    31-818889A1 BEARING ASSEMBLY, Roller
    (TOP)
    BEARING ASSEMBLY, Roller
    (TOP)
  • 7
    26-8173971 SEAL, Oil
    SEAL, Oil
  • 8
    827955A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Roller
    NOT SOLD SEPARATE, Roller
  • 10
    NSS NOT SOLD SEPARATE, Ring-Seal
    NOT SOLD SEPARATE, Ring-Seal
  • 11
    705-850026T1 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 11
    705-850026T2 PISTON ASSEMBLY
    (.015 O.S.)
    PISTON ASSEMBLY
    (.015 O.S.)
  • 12
    53-857196 RING, Lock
    RING, Lock
  • 13
    39-831255A6 RING SET, Piston
    (STANDARD)
    RING SET, Piston
    (STANDARD)
  • 13
    39-821695A6 RING SET, Piston
    (.015 O.S.)
    RING SET, Piston
    (.015 O.S.)
  • 14
    NSS NOT SOLD SEPARATE, Piston Ring
    (CHROME FACE)
    NOT SOLD SEPARATE, Piston Ring
    (CHROME FACE)
  • 15
    640-9612A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    12-8M0012298 WASHER
    WASHER
  • 17
    29-47270 BEARING
    BEARING
  • 18
    10-91012 SCREW, (.250-28 Special)
    SCREW, (.250-28 Special)
  • 19
    31-8M0045428 BEARING KIT
    BEARING KIT
  • -
    852071T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
