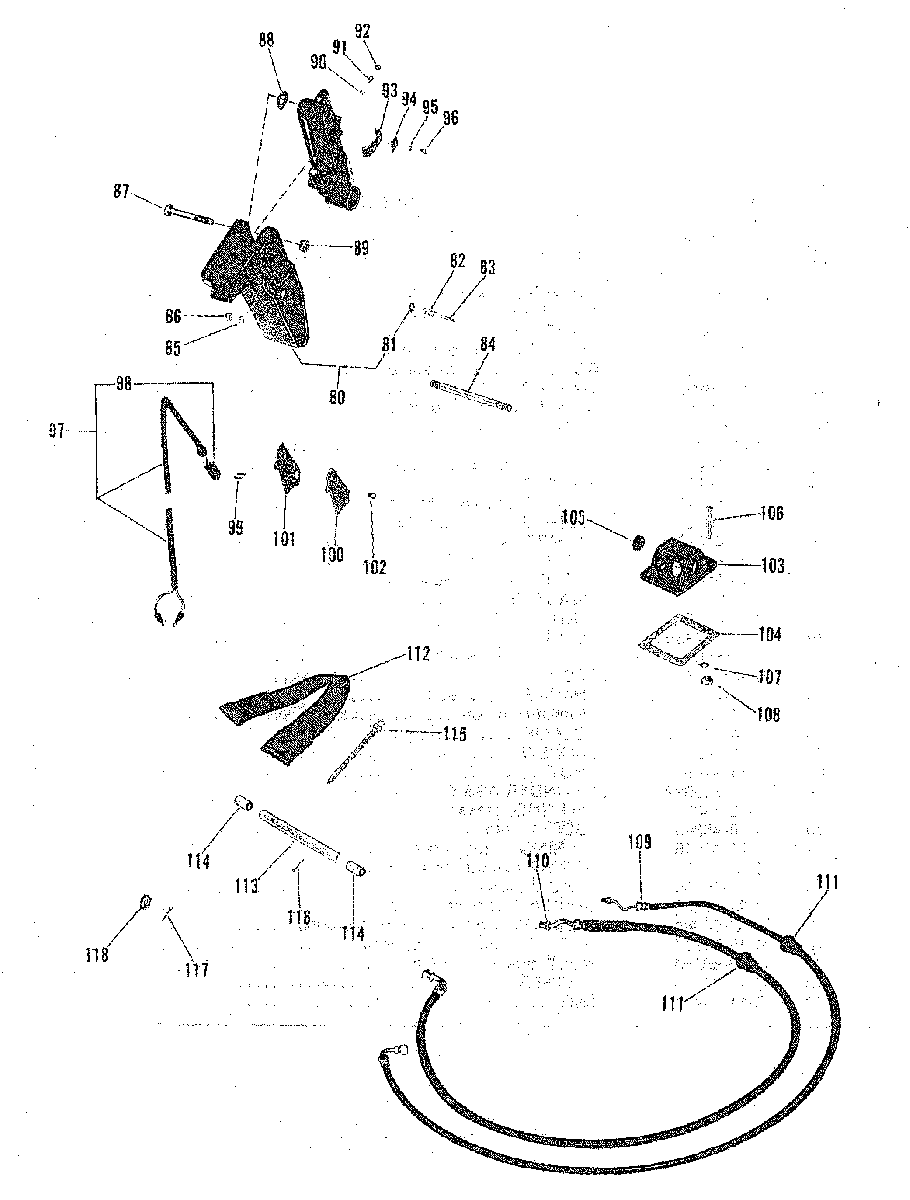

POWER TRIM (OPTIONAL) (PAGE 3) для Mariner - 60 (2 CYL.) 675-304181 AND UP

  • №
    Артикул
    Название
  • 80
    89807A1 BRACKET ASS'Y, MOUNTING (STARBOARD)
    BRACKET ASS'Y, MOUNTING (STARBOARD)
  • 81
    26-70608 OIL SEAL
    OIL SEAL
  • 82
    89290 PLUNGER, LIMIT SWITCH
    PLUNGER, LIMIT SWITCH
  • 83
    24-95881 SPRING, TENSION
    SPRING, TENSION
  • 84
    16-71794 STUD
    STUD
  • 85
    13-26993 WASHER, LOCK
    WASHER, LOCK
  • 86
    11-22053 NUT
    NUT
  • 87
    10-45328 SCREW, CYLINDER TO BRACKET
    SCREW, CYLINDER TO BRACKET
  • 88
    12-37807 WASHER (STARBOARD ONLY)
    WASHER (STARBOARD ONLY)
  • 89
    11-20696 NUT
    NUT
  • 90
    24-24390 SPRING, TENSION
    SPRING, TENSION
  • 91
    16-8M0034461 STUD, ADJUSTING
    STUD, ADJUSTING
  • 92
    11-859124 NUT, JAM
    NUT, JAM
  • 93
    71855 CAM
    CAM
  • 94
    86967 PLATE, CAM RETAINING
    PLATE, CAM RETAINING
  • 95
    10-68513 SCREW
    SCREW
  • 96
    13-26996 WAHSER, LOCK
    WAHSER, LOCK
  • 97
    45326A2 LIMIT SWITCH ASS'Y
    LIMIT SWITCH ASS'Y
  • 98
    23-45354 BUSHING, RUBBER
    BUSHING, RUBBER
  • 99
    10-47255 SCREW, SWITCH TO BRACKET
    SCREW, SWITCH TO BRACKET
  • 100
    45287 COVER
    COVER
  • 101
    27-45275 GASKET
    GASKET
  • 102
    10-24942 SCREW, COVER TO BRACKET
    SCREW, COVER TO BRACKET
  • 103
    87774A1 COVER, TRANSOM INLET
    COVER, TRANSOM INLET
  • 104
    27-45274 GASKET
    GASKET
  • 105
    25-45507 GROMMET, RUBBER
    GROMMET, RUBBER
  • 106
    10-32866 SCREW, INLET COVER TO BOAT
    SCREW, INLET COVER TO BOAT
  • 107
    12-20878 WASHER
    WASHER
  • 108
    11-826709106 NUT
    NUT
  • 109
    32-88005 HOSE, TRIM
    12/32 INCH OD
    HOSE, TRIM
    12/32 INCH OD
  • 110
    32-88006 HOSE, LIFT (17/32 INCH OD)
    HOSE, LIFT (17/32 INCH OD)
  • 111
    23-35977 GROMMET, RUBBER
    GROMMET, RUBBER
  • 112
    73519A1 TILT STOP
    TILT STOP
  • 113
    77295 TUBE, STOP MOUNTING
    TUBE, STOP MOUNTING
  • 114
    23-71795 SPACER
    SPACER
  • 115
    66368 STA-STRAP
    STA-STRAP
  • 116
    18-36002 PIN, COTTER
    PIN, COTTER
  • 117
    18-45882 PIN, COTTER
    PIN, COTTER
  • 118
    12-39304 WASHER
    WASHER
  • 118
    64507A1 TRIM CYLINDER REPAIR KIT
    TRIM CYLINDER REPAIR KIT (A-64507A1) INCLUDES THE PISTON, PISTON SLIPPER SEAL, AND ALL O-RINGS NECESSARY TO REBUILD ON CYLINDER REPLACEMENT PARTS
    TRIM CYLINDER REPAIR KIT
    TRIM CYLINDER REPAIR KIT (A-64507A1) INCLUDES THE PISTON, PISTON SLIPPER SEAL, AND ALL O-RINGS NECESSARY TO REBUILD ON CYLINDER REPLACEMENT PARTS
  • 118
    64505A1 CYLINDER PISTON RETAINER KIT
    CYLINDER PISTON RETAINER KIT
