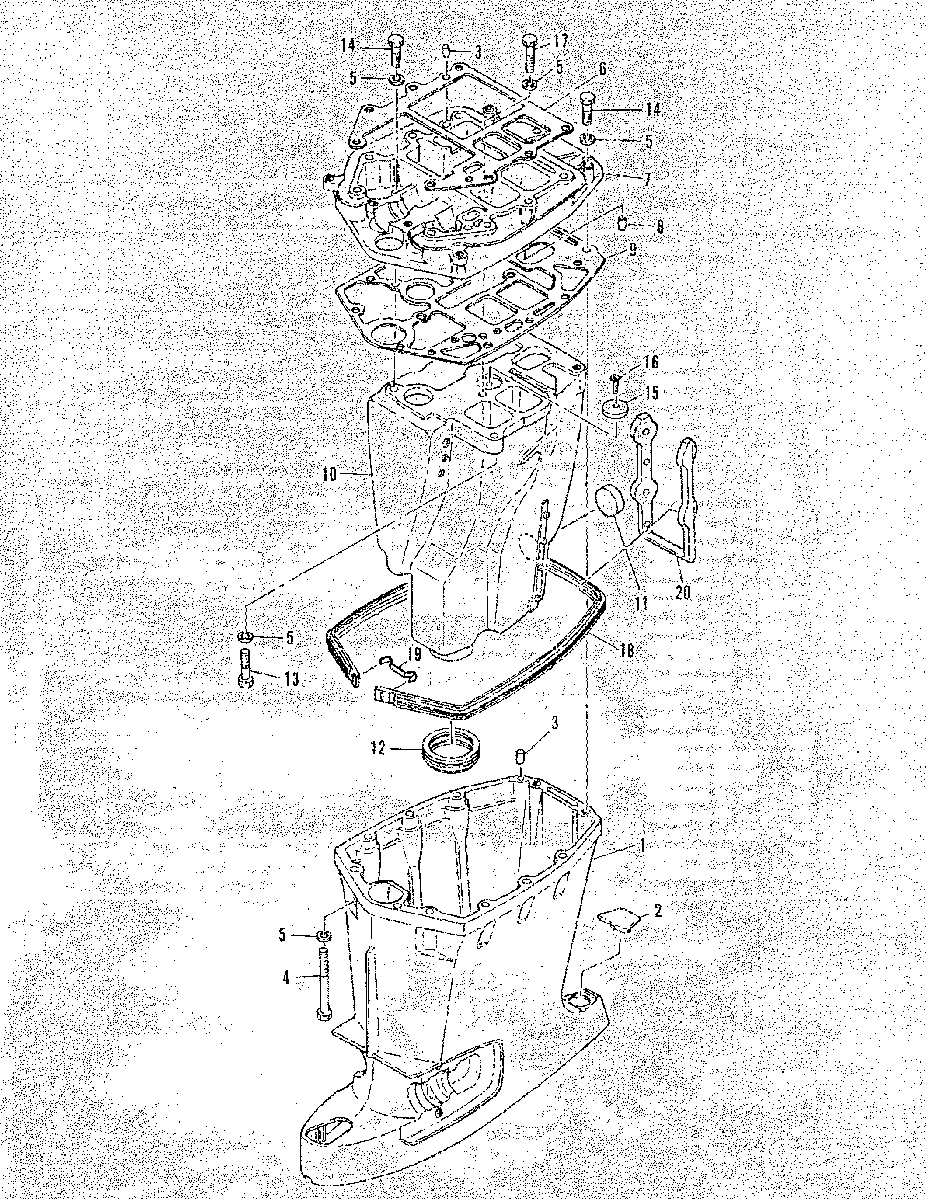

DRIVESHAFT HOUSING для Mariner - 60 (2 CYL.) 675-304181 AND UP

  • №
    Артикул
    Название
  • 1
    1587-9284M DRIVESHAFT HOUSING (E)
    DRIVESHAFT HOUSING (E)
  • 1
    1587-9285M DRIVESHAFT (EL)
    DRIVESHAFT (EL)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (E)
    CAP, DRIVESHAFT HOUSING (E)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (EL)
    CAP, DRIVESHAFT HOUSING (EL)
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-84427M BOLT
    BOLT
  • 5
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 6
    27-16717 GASKET, EXHAUST GUIDE-UPPER
    GASKET, EXHAUST GUIDE-UPPER
  • 7
    41849M GUIDE, EXHAUST
    GUIDE, EXHAUST
  • 8
    23-84426M BUSHING
    BUSHING
  • 9
    27-98952M GASKET, EXHAUST GUIDE-LOWER
    GASKET, EXHAUST GUIDE-LOWER
  • 10
    84420M EXHAUST TUBE HOUSING (E)
    EXHAUST TUBE HOUSING (E)
  • 10
    92641M EXHAUST TUBE HOUSING (EL)
    EXHAUST TUBE HOUSING (EL)
  • 11
    19-81922M PLUG
    PLUG
  • 12
    27-92642M SEAL, INNER TO OUTER HOUSING (E)
    SEAL, INNER TO OUTER HOUSING (E)
  • 12
    27-81440M GASKET, INNER TO OUTER HOUSING (EL)
    GASKET, INNER TO OUTER HOUSING (EL)
  • 13
    10-82442M BOLT
    BOLT
  • 14
    10-95416M BOLT
    BOLT
  • 15
    84422M ANODE
    ANODE
  • 16
    10-92679M SCREW
    SCREW
  • 17
    10-97749M BOLT
    BOLT
  • 18
    27-83033M SEAL, RUBBER
    SEAL, RUBBER
  • 19
    83034M HOOK, RUBBER SEAL
    HOOK, RUBBER SEAL
  • 20
    84424M DAMPER (E)
    DAMPER (E)
  • 20
    84425M DAMPER (EL)
    DAMPER (EL)
