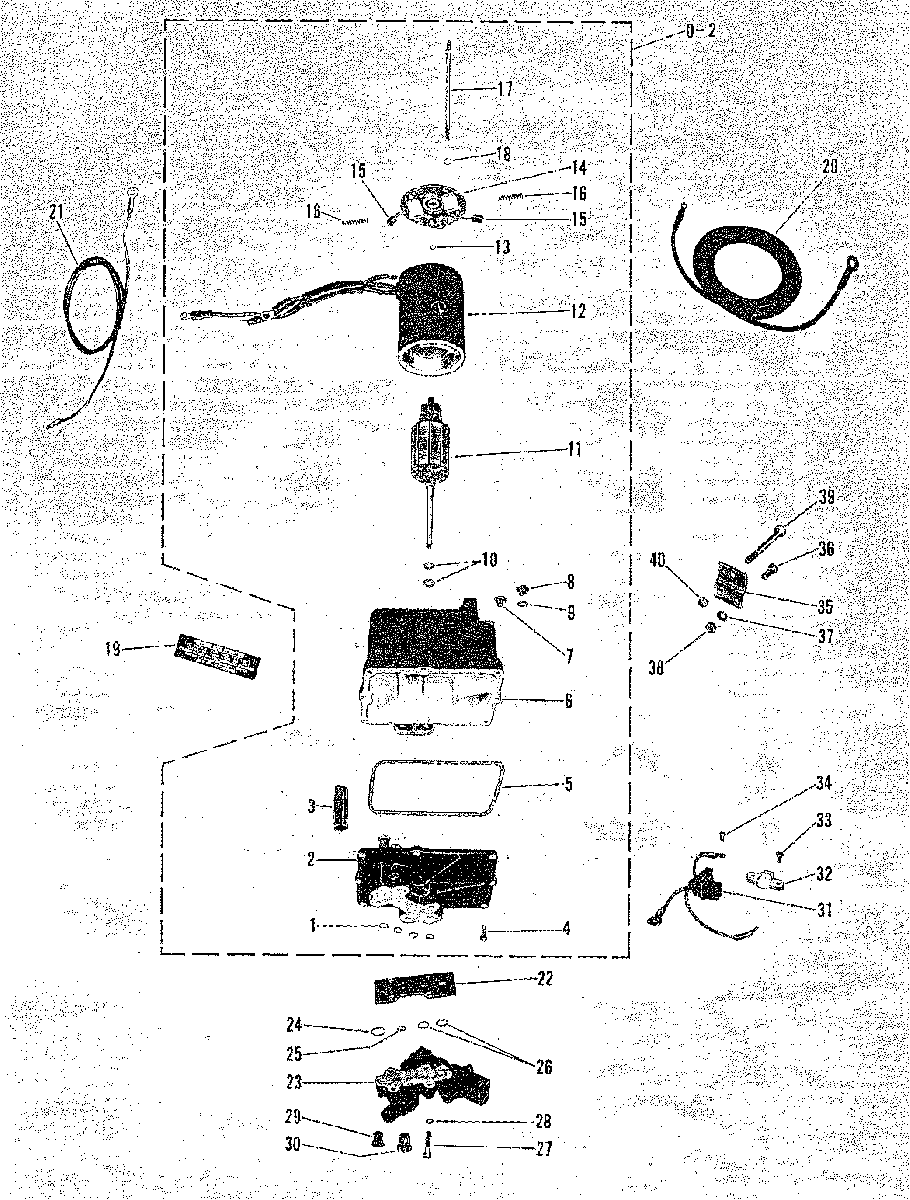

POWER TRIM (OPTIONAL) (PAGE 1) для Mariner - 60 (2 CYL.) 675-304181 AND UP

  • №
    Артикул
    Название
  • 0-1
    76509A24 POWER TRIM KIT
    POWER TRIM KIT
  • 0-2
    92975A32 HYDRAULIC PUMP ASS'Y
    HYDRAULIC PUMP ASS'Y
  • 1
    25-48171 O-RING, PUMP BASE
    O-RING, PUMP BASE
  • 2
    392-7734 VALVE BODY AND GEAR ASS'Y
    VALVE BODY AND GEAR ASS'Y
  • 3
    392-2618 CAN, VALVE BODY
    CAN, VALVE BODY
  • 4
    10-20411 SCREW, VALVE TO RESERVOIR
    SCREW, VALVE TO RESERVOIR
  • 5
    392-7735 GASKET, VALVE TO RESERVOIR
    GASKET, VALVE TO RESERVOIR
  • 6
    392-2939 RESERVOIR ASS'Y
    RESERVOIR ASS'Y
  • 7
    10-62269 SCREW, VENT
    SCREW, VENT
  • 8
    10-79953Q04 SCREW, FILL
    SCREW, FILL
  • 9
    12-191833 WASHER, FILL SCREW
    WASHER, FILL SCREW
  • 10
    392-2623 THRUST WASHER, ARMATURE
    THRUST WASHER, ARMATURE
  • 11
    392-2943 ARMATURE
    ARMATURE
  • 12
    392-2942 FIELD AND FRAME ASS'Y
    FIELD AND FRAME ASS'Y
  • 13
    392-2944 BALL, END PLATE
    BALL, END PLATE
  • 14
    392-2940 END PLAT ASS'Y
    END PLAT ASS'Y
  • 15
    392-8989 BRUSH SET
    BRUSH SET
  • 16
    392-2529 SPRING SET
    SPRING SET
  • 17
    392-2938 THRU-BOLT SET
    THRU-BOLT SET
  • 18
    13-26996 WAHSER, LOCK
    WAHSER, LOCK
  • 19
    37-5590 DECAL, INSTRUCTION
    DECAL, INSTRUCTION
  • 20
    32979 BATTERY LEAD (+)
    BATTERY LEAD (+)
  • 21
    32988 BATTERY LEAD (-)
    BATTERY LEAD (-)
  • 22
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 23
    45197A2 CONTROL ASS'Y
    CONTROL ASS'Y
  • 23
    25-48171 O-RING, PUMP BASE (SEE ITEM 1)
    O-RING, PUMP BASE (SEE ITEM 1)
  • 24
    25-45254 O-RING, VALVE TO MANIFOLD
    O-RING, VALVE TO MANIFOLD
  • 25
    25-48171 O-RING, VALVE TO MANIFOLD
    O-RING, VALVE TO MANIFOLD
  • 26
    25-45253 O-RING, VALVE TO MANIFOLD
    O-RING, VALVE TO MANIFOLD
  • 27
    10-56500 SCREW, VALVE ATTACHING
    SCREW, VALVE ATTACHING
  • 28
    13-26992 WASHER, LOCK
    WASHER, LOCK
  • 29
    22-38609 PLUG, VALVE (3/8INCH)
    PLUG, VALVE (3/8INCH)
  • 30
    22-46008 PLUG VALVE (1/2INCH)
    PLUG VALVE (1/2INCH)
  • 31
    84-74023A1 CONNECTOR AND HARNESS
    CONNECTOR AND HARNESS
  • 32
    45559 TERMINAL BLOCK, PUMP
    TERMINAL BLOCK, PUMP
  • 33
    10-35519 SCRW, BLOCK TO PUMP
    SCRW, BLOCK TO PUMP
  • 34
    10-62568 SCREW, HARNESS TO BLOCK
    SCREW, HARNESS TO BLOCK
  • 35
    45377T BRACKET, PUMP MOUNTING
    BRACKET, PUMP MOUNTING
  • 36
    10-35386 SCREW, BRACKET TO PUMP
    SCREW, BRACKET TO PUMP
  • 37
    13-39107 WASHER, LOCK
    WASHER, LOCK
  • 38
    11-21908 NUT
    NUT
  • 39
    10-68298 BOLT, PUMP TO BOAT
    BOLT, PUMP TO BOAT
  • 40
    11-82670912 NUT
    NUT
