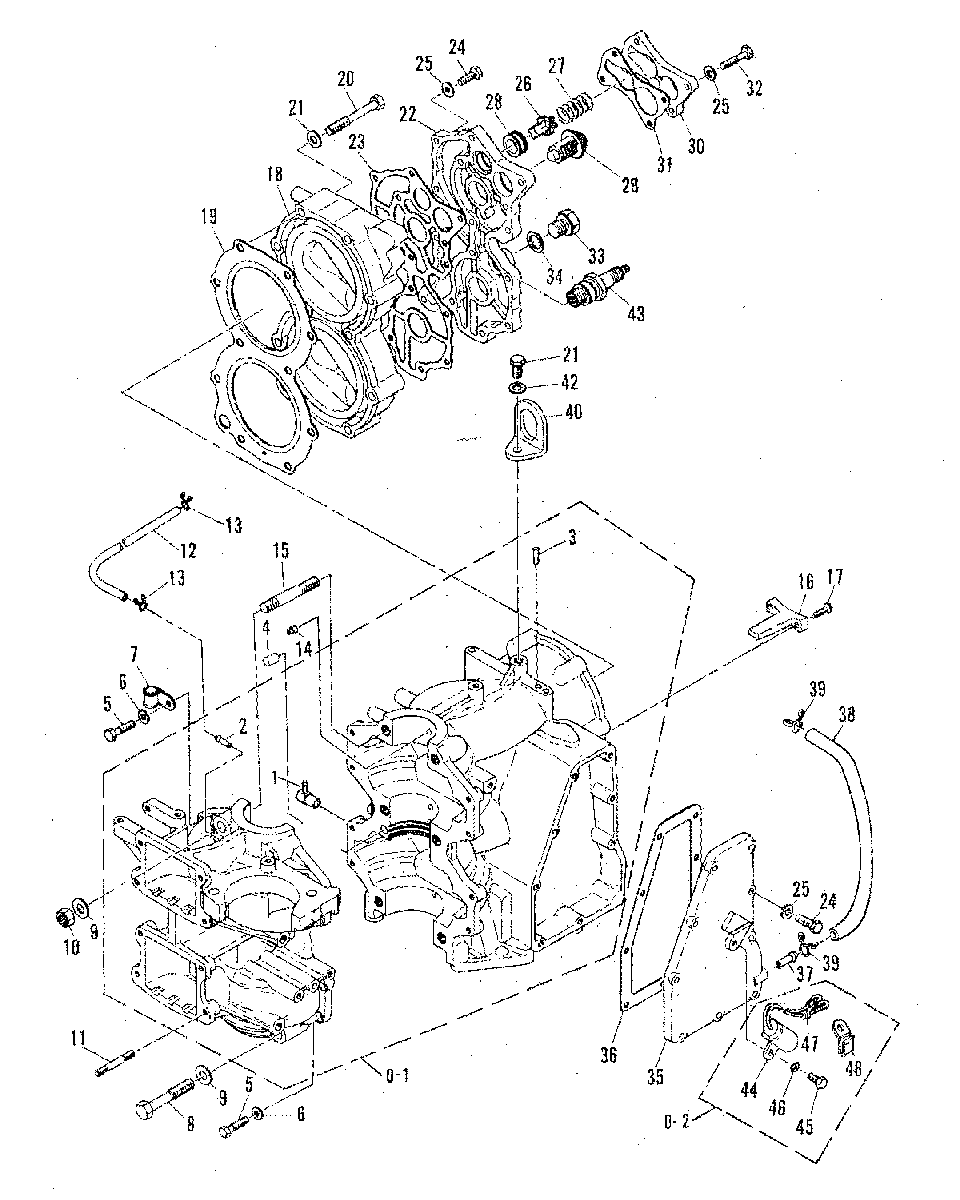

CRANKCASE AND CYLINDER HEAD для Mariner - 60 (2 CYL.) 675-304181 AND UP
-
№АртикулНазвание
-
0-1870-7958M CRANKSHAFT ASS'YCRANKSHAFT ASS'Y
-
121-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
222-80122M FITTING, CRANKSHAFT DRAINFITTING, CRANKSHAFT DRAIN
-
317-82354M PIN, DOWELPIN, DOWEL
-
417-82368M PIN, DOWELPIN, DOWEL
-
510-82405M BOLTBOLT
-
612-81792M WASHERWASHER
-
754-82033M CLAMP, WIRECLAMP, WIRE
-
810-82410M BOLTBOLT
-
912-81807M WASHERWASHER
-
1011-82387M NUTNUT
-
1116-81735M STUD, INTAKE MANIFOLD ATTACHINGSTUD, INTAKE MANIFOLD ATTACHING
-
1232-811045M HOSE, DRAINHOSE, DRAIN
-
1354-82046M CLAMP, HOSECLAMP, HOSE
-
1417-81258M LOCK, BEARINGLOCK, BEARING
-
1516-81743M STUD, CRANKCASE ATTACHINGSTUD, CRANKCASE ATTACHING
-
1681255M ANODEANODE
-
1710-82532M SCREWSCREW
-
18968-6927M HEAD, CYLINDERHEAD, CYLINDER
-
1927-19140 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2010-82409M BOLTBOLT
-
2112-80564M WASHERWASHER
-
2281253M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2327-81254M GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
2410-84058M BOLTBOLT
-
2512-82214M WASHER, LOCKWASHER, LOCK
-
2681267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
2724-82086M SPRING, COMPRESSIONSPRING, COMPRESSION
-
2825-82067M GROMMETGROMMET
-
2999080M THERMOSTATTHERMOSTAT
-
3081265M COVER, THERMOSTATCOVER, THERMOSTAT
-
3127-81266M GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
3210-83285M BOLTBOLT
-
3322-81926M PLUGPLUG
-
3427-81990M GASKET, PLUGGASKET, PLUG
-
3581330M COVER, EXHAST - OUTERCOVER, EXHAST - OUTER
-
3627-81331M GASKET, EXHAST COVERGASKET, EXHAST COVER
-
3722-94716M FITTING, EXHAST COVERFITTING, EXHAST COVER
-
3832-81324M HOSE, EXHAST COVERHOSE, EXHAST COVER
-
4154-82047M CLAMP, HOSECLAMP, HOSE
-
4041827M BRACKET, LIFTBRACKET, LIFT
-
4110-84342M BOLTBOLT
-
4213-82215M WASHER, LOCKWASHER, LOCK
-
4333-8244068 PLUG, SPARKB-8HS10(NGK)(1.0 MM GAP)PLUG, SPARKB-8HS10(NGK)(1.0 MM GAP)
-
0-287-82985M TILT STOP SWITCH ASS'YTILT STOP SWITCH ASS'Y
-
4487-81526M STOP SWITCHSTOP SWITCH
Производитель Mercury-Mercruiser -
4510-82417M BOLTBOLT
-
4613-82210M WASHERWASHER
-
4725-82057M GROMMETGROMMET
-
4854-82042M CLAMPCLAMP
-
92624M POWER HEAD ASS'Y
REPLACEMENT PARTS FOR REPLACEMENT OF POWER HEAD ASSEMBLY COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC. - ORDER POWER HEAD ASSEMBLY (M-92624M).POWER HEAD ASS'Y
REPLACEMENT PARTS FOR REPLACEMENT OF POWER HEAD ASSEMBLY COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER PISTONS, CONNECTING RODS, CRANKSHAFT, BEARINGS, ETC. - ORDER POWER HEAD ASSEMBLY (M-92624M). -
27-84168M GASKET SET, POWERHEAD
REPLACEMENT PARTSGASKET SET, POWERHEAD
REPLACEMENT PARTS
