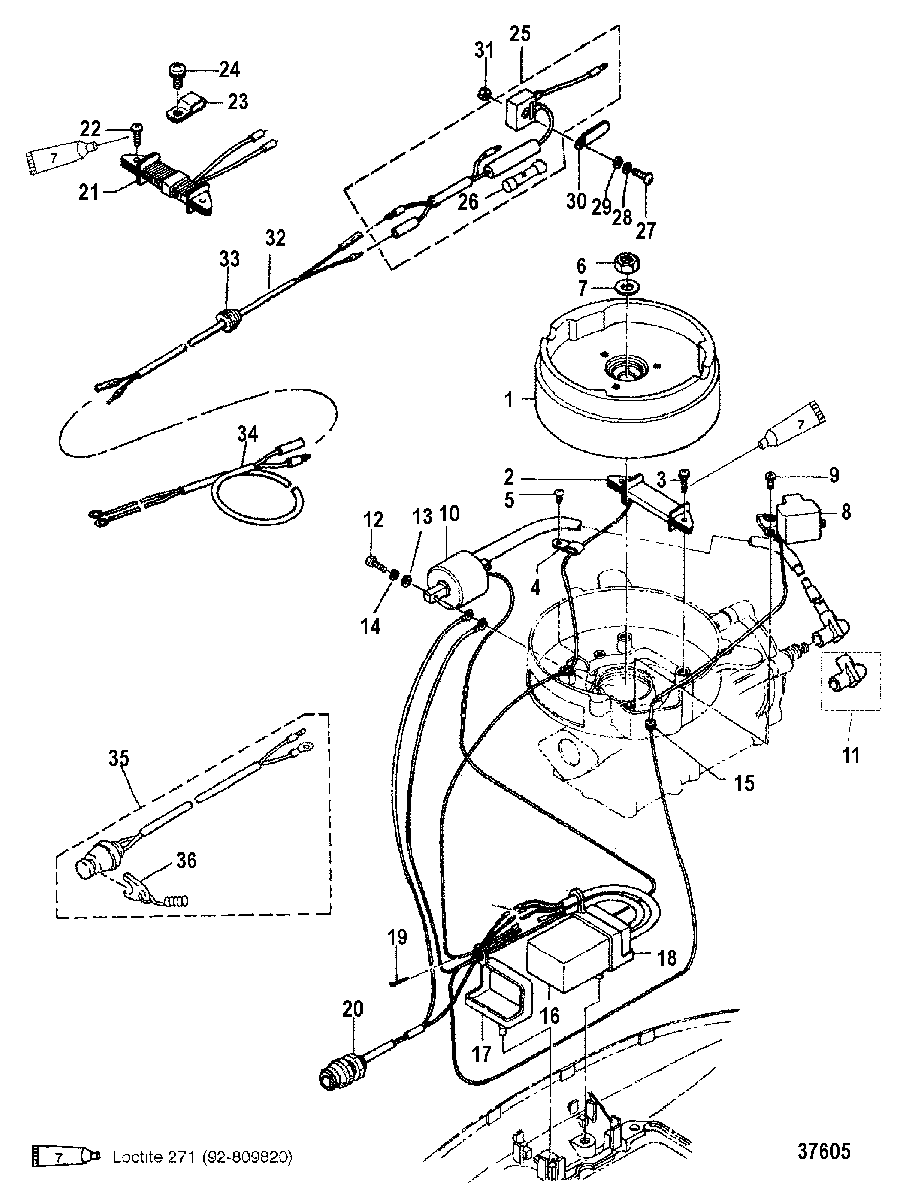

MAGNETO AND IGNITION COMPONENTS для Mariner - 4/5 9589154 THRU 0P016999
-
№АртикулНазвание
-
1200-8M0110989 FLYWHEELFLYWHEEL
-
216058T COIL, ExciterCOIL, Exciter
-
310-16059 SCREWSCREW
-
454-16060 CLAMPCLAMP
-
510-16821 SCREWSCREW
-
611-16071 NUTNUT
-
712-16072 WASHERWASHER
-
8160661 COIL, PulserCOIL, Pulser
-
910-16067 SCREWSCREW
-
10815113T02 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1185-855543 BOOT, With ResistanceBOOT, With Resistance
-
1210-16065 BOLTBOLT
-
1313-16818 LOCKWASHERLOCKWASHER
-
1412-809931044 WASHERWASHER
-
1525-16068 GROMMETGROMMET
-
1616061T04 CD UNITCD UNIT
-
17878061 DAMPER (FRONT)DAMPER (FRONT)
-
18878062 DAMPER (REAR)DAMPER (REAR)
-
1918-815026 COTTER PINCOTTER PIN
-
2087-823037A04 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
2116074T ALTERNATOR
SAILPOWERALTERNATOR
SAILPOWER -
2210-16059 SCREW
SAILPOWERSCREW
SAILPOWER -
2354-16060 CLAMP
SAILPOWERCLAMP
SAILPOWER -
2410-16821 SCREW
SAILPOWERSCREW
SAILPOWER -
2516076A1 RECTIFIER
SAILPOWERRECTIFIER
SAILPOWER -
2689-16077 FUSE
SAILPOWERFUSE
SAILPOWER -
2710-16078 SCREW
SAILPOWERSCREW
SAILPOWER -
2813-16079 LOCKWASHER
SAILPOWERLOCKWASHER
SAILPOWER -
2912-8M0108373 WASHER, Stainless Steel
SAILPOWERWASHER, Stainless Steel
SAILPOWER -
3054-813275 CLAMP
SAILPOWERCLAMP
SAILPOWER -
3111-16081 NUT, Stainless Steel
SAILPOWERNUT, Stainless Steel
SAILPOWER -
3284-16822 HARNESS, Extension
SAILPOWERHARNESS, Extension
SAILPOWER -
3325-16823 GROMMET
SAILPOWERGROMMET
SAILPOWER -
3484-16082 CABLE, Battery
SAILPOWERCABLE, Battery
SAILPOWER -
3587-823037A04 SWITCH ASSEMBLY, Emergency StopSWITCH ASSEMBLY, Emergency Stop
-
36823054 LANYARDLANYARD
