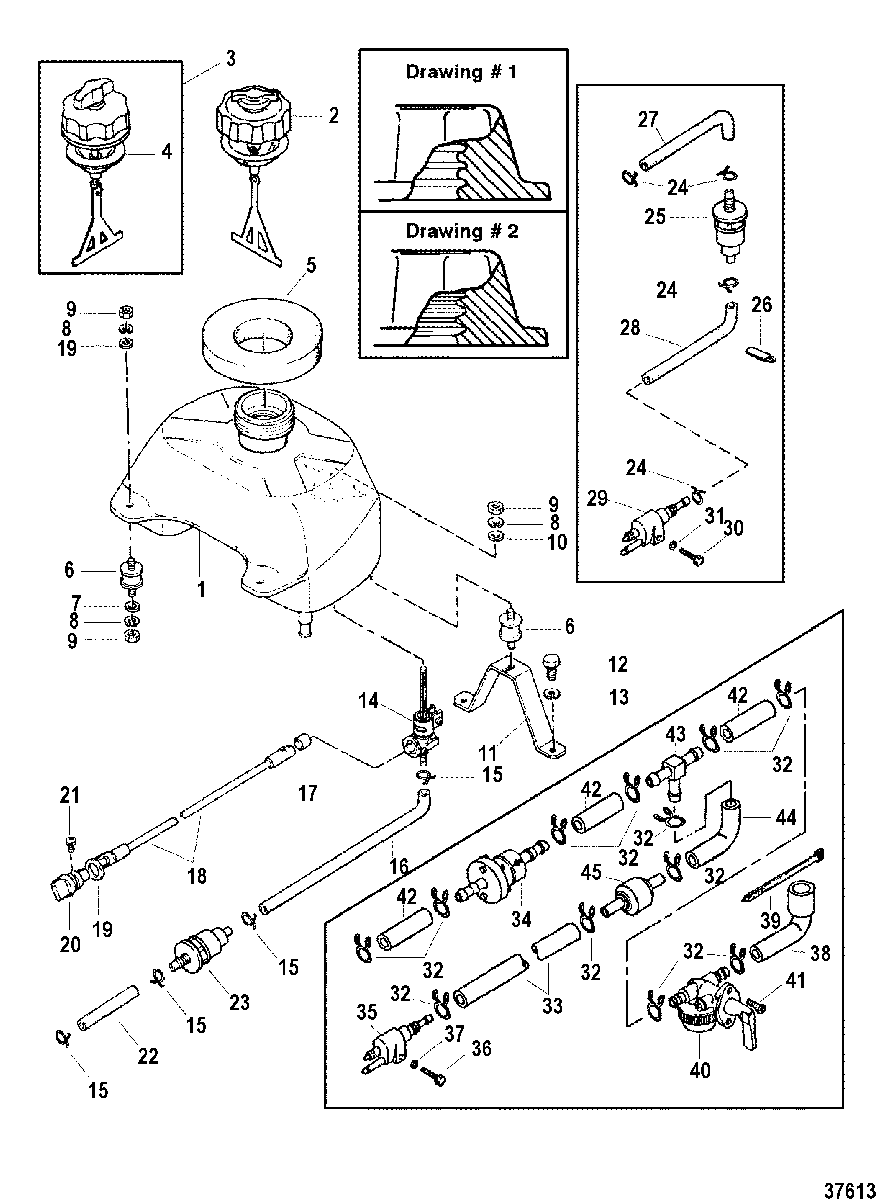

FUEL TANK(SERIAL GROUP #1) для Mariner - 4/5 9589154 THRU 0P016999

№

Артикул

Название
1

1258-824964A03 TANK ASSEMBLY, Fuel

TANK ASSEMBLY, Fuel

0 ₽
2

36-8M0060029 CAP

CAP

1 960 ₽
3

36-8129523 CAP
(REFER TO DRAWING #2)

CAP
(REFER TO DRAWING #2)

1 410 ₽
3

36-812952 CAP
(REFER TO DRAWING #1)

CAP
(REFER TO DRAWING #1)

2 110 ₽
4

27-8M0065762 GASKET (USE WHERE APPLICABLE)

GASKET (USE WHERE APPLICABLE)

280 ₽
5

26-8M0099393 SEAL

SEAL

730 ₽
6

16236 MOUNT

MOUNT

490 ₽
7

12-953921 WASHER, Stainless Steel

WASHER, Stainless Steel

230 ₽
8

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
9

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

170 ₽
10

12-898101937 WASHER

WASHER

330 ₽
11

8M0046049 BRACKET

BRACKET

980 ₽
12

10-16832 BOLT, (M6 x 16)

BOLT, (M6 x 16)

190 ₽
13

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
14

22-16240 FUEL COCK ASSEMBLY
4 H.P. 22-815045A1 REPLACEMENT KIT

FUEL COCK ASSEMBLY
4 H.P. 22-815045A1 REPLACEMENT KIT

2 530 ₽
15

54-95395 CLIP, Stainless Steel
4 H.P. 22-815045A1 REPLACEMENT KIT

CLIP, Stainless Steel
4 H.P. 22-815045A1 REPLACEMENT KIT

200 ₽
16

32-16246 HOSE
4 H.P. 22-815045A1 REPLACEMENT KIT

HOSE
4 H.P. 22-815045A1 REPLACEMENT KIT

130 ₽
17

32-16242001 TUBE
4 H.P. 22-815045A1 REPLACEMENT KIT

TUBE
4 H.P. 22-815045A1 REPLACEMENT KIT

380 ₽
18

16241 ROD
4 H.P. 22-815045A1 REPLACEMENT KIT

ROD
4 H.P. 22-815045A1 REPLACEMENT KIT

0 ₽
19

16244 RUBBER
4 H.P. 22-815045A1 REPLACEMENT KIT

RUBBER
4 H.P. 22-815045A1 REPLACEMENT KIT

170 ₽
20

16243 KNOB
4 H.P. 22-815045A1 REPLACEMENT KIT

KNOB
4 H.P. 22-815045A1 REPLACEMENT KIT

460 ₽
21

10-16245 SCREW
4 H.P. 22-815045A1 REPLACEMENT KIT

SCREW
4 H.P. 22-815045A1 REPLACEMENT KIT

120 ₽
22

32-16247 HOSE, (117 mm)
4 H.P. 22-815045A1 REPLACEMENT KIT

HOSE, (117 mm)
4 H.P. 22-815045A1 REPLACEMENT KIT

90 ₽
23

35-16248 FILTER, Fuel
4 H.P. 22-815045A1 REPLACEMENT KIT

FILTER, Fuel
4 H.P. 22-815045A1 REPLACEMENT KIT

640 ₽
24

54-95395 CLIP, Stainless Steel
5 H.P. GRAY

CLIP, Stainless Steel
5 H.P. GRAY

200 ₽
25

35-16248 FILTER, Fuel
5 H.P. GRAY

FILTER, Fuel
5 H.P. GRAY

640 ₽
26

54-8M0130961 CLAMP
5 H.P. GRAY

CLAMP
5 H.P. GRAY

0 ₽
27

32-17669 HOSE
5 H.P. GRAY

HOSE
5 H.P. GRAY

490 ₽
28

32-17668 HOSE
5 H.P. GRAY

HOSE
5 H.P. GRAY

520 ₽
29

22-15781A5 CONNECTOR, Fuel - Brass
5 H.P. GRAY

CONNECTOR, Fuel - Brass
5 H.P. GRAY

2 100 ₽
30

10-4000333 SCREW, (M6 x 40)
5 H.P. GRAY

SCREW, (M6 x 40)
5 H.P. GRAY

290 ₽
31

12-16826 WASHER, Stainless Steel
5 H.P. GRAY

WASHER, Stainless Steel
5 H.P. GRAY

110 ₽
32

54-95395 CLIP, Stainless Steel
5 H.P. BLACK

CLIP, Stainless Steel
5 H.P. BLACK

200 ₽
33

32-8M0057113 HOSE, Rubber (110 mm)
5 H.P. BLACK

HOSE, Rubber (110 mm)
5 H.P. BLACK

1 980 ₽
34

35-16248 FILTER, Fuel
5 H.P. BLACK

FILTER, Fuel
5 H.P. BLACK

640 ₽
35

22-15781A5 CONNECTOR, Fuel - Brass
5 H.P. BLACK

CONNECTOR, Fuel - Brass
5 H.P. BLACK

2 100 ₽
36

10-4000333 SCREW, (M6 x 40)
5 H.P. BLACK

SCREW, (M6 x 40)
5 H.P. BLACK

290 ₽
37

12-16826 WASHER, Stainless Steel
5 H.P. BLACK

WASHER, Stainless Steel
5 H.P. BLACK

110 ₽
38

22-815043 REDUCER ELBOW
5 H.P. BLACK

REDUCER ELBOW
5 H.P. BLACK

890 ₽
39

56762 CLAMP, Plastic
5 H.P. BLACK

CLAMP, Plastic
5 H.P. BLACK

30 ₽
40

22-815045 FUEL COCK ASSEMBLY
5 H.P. BLACK

FUEL COCK ASSEMBLY
5 H.P. BLACK

2 690 ₽
41

10-815046 SCREW, Stainless Steel
5 H.P. BLACK

SCREW, Stainless Steel
5 H.P. BLACK

100 ₽
42

32-8M0057113 HOSE, Rubber (30 mm)
5 H.P. BLACK

HOSE, Rubber (30 mm)
5 H.P. BLACK

1 980 ₽
43

22-73318 TEE, Plastic
5 H.P. BLACK

TEE, Plastic
5 H.P. BLACK

330 ₽
44

32-815049 HOSE, Rubber
5 H.P. BLACK

HOSE, Rubber
5 H.P. BLACK

360 ₽
45

22-815048 CONNECTOR, Plastic
5 H.P. BLACK

CONNECTOR, Plastic
5 H.P. BLACK

1 960 ₽
-

815596A2 FUEL TANK ADAPTOR KIT
5 H.P. BLACK

FUEL TANK ADAPTOR KIT
5 H.P. BLACK

12 850 ₽
