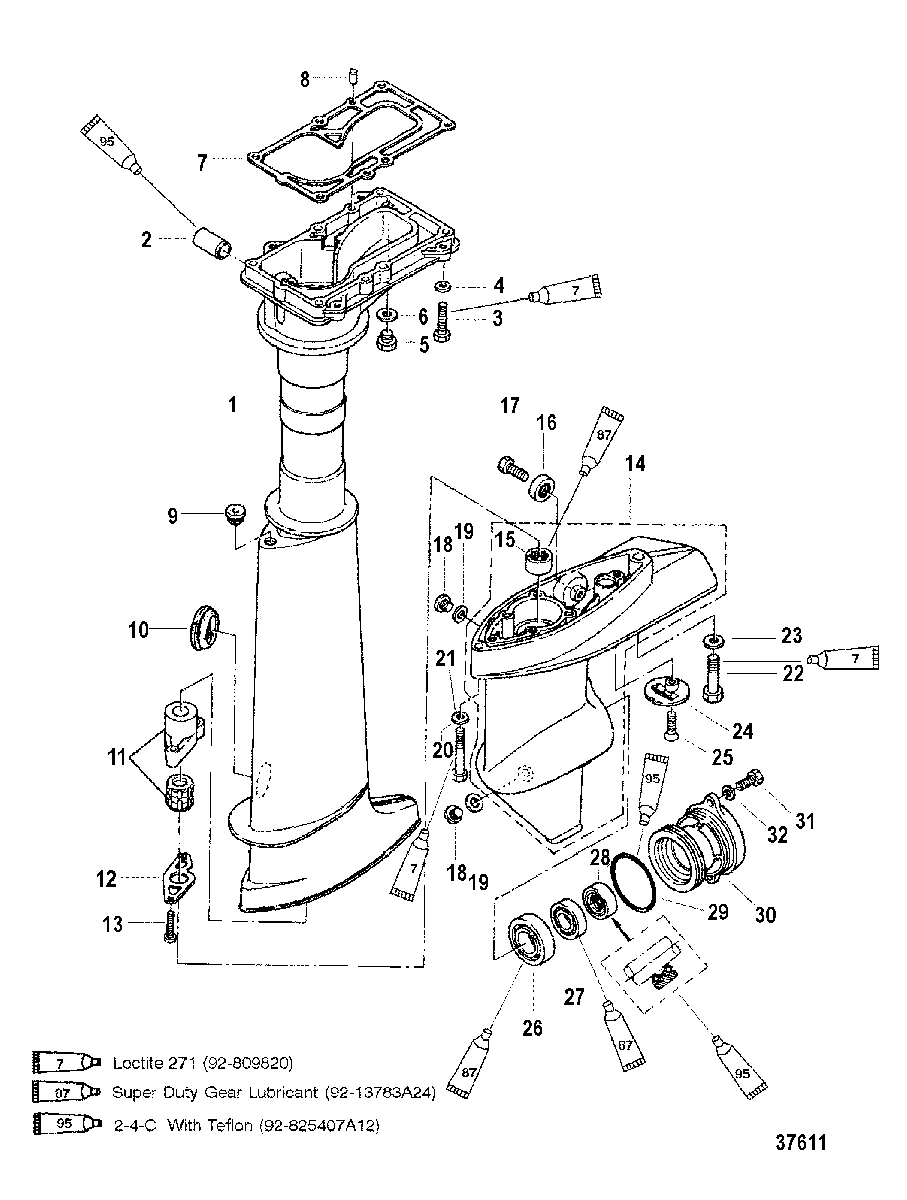

DRIVESHAFT HOUSING/GEAR HOUSING для Mariner - 4/5 9589154 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    1599-825134A1 HOUSING ASSEMBLY, Driveshaft
    (SHORT) - BLACK
    HOUSING ASSEMBLY, Driveshaft
    (SHORT) - BLACK
  • 1
    1500-8M0089106 HOUSING ASSEMBLY, Driveshaft
    (LONG) - BLACK
    HOUSING ASSEMBLY, Driveshaft
    (LONG) - BLACK
  • 1
    1599-825135A1 HOUSING ASSEMBLY, Driveshaft
    (SHORT) - GRAY
    HOUSING ASSEMBLY, Driveshaft
    (SHORT) - GRAY
  • 1
    1599-825137A1 HOUSING ASSEMBLY, Driveshaft
    (LONG) - GRAY
    HOUSING ASSEMBLY, Driveshaft
    (LONG) - GRAY
  • 2
    23-16114 BUSHING
    BUSHING
  • 3
    10-8M0124428 BOLT
    BOLT
  • 4
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 5
    19-879194296 PLUG, Water
    PLUG, Water
  • 6
    8M0082880 GASKET
    GASKET
  • 7
    27-812947001 GASKET
    GASKET
  • 8
    17-16119 PIN, Dowel
    PIN, Dowel
  • 9
    25-161181 GROMMET
    GROMMET
  • 10
    25-16117 GROMMET
    GROMMET
  • 11
    827663A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 12
    16121 RETAINER
    RETAINER
  • 13
    10-823042067 SCREW
    (SHORT)
    SCREW
    (SHORT)
  • 13
    10-16123 SCREW, (25 mm)
    (LONG)
    SCREW, (25 mm)
    (LONG)
  • 14
    1668-825132T30 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 14
    1668-825133A1 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 14
    1668-9621T6 GEAR HOUSING ASSEMBLY
    (SAILPOWER)
    GEAR HOUSING ASSEMBLY
    (SAILPOWER)
  • 14
    1668-9621A4 GEAR HOUSING ASSEMBLY
    (SAILMATE)
    GEAR HOUSING ASSEMBLY
    (SAILMATE)
  • 15
    23-16124 BUSHING
    BUSHING
  • 16
    97-823912 ANODE
    ANODE
  • 17
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 18
    22-953683 SCREW, Drain
    SN# USA-0G574242/BEL-9973100 & Up
    SCREW, Drain
    SN# USA-0G574242/BEL-9973100 & Up
  • 18
    22-953683 PLUG
    SN# USA-0G574241/BEL-9973099 & Below
    PLUG
    SN# USA-0G574241/BEL-9973099 & Below
  • 19
    8M0082880 GASKET
    GASKET
  • 20
    10-8M0063198 BOLT (FRONT)
    BOLT (FRONT)
  • 21
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 22
    10-16126 BOLT (REAR)
    BOLT (REAR)
  • 23
    12-16192 WASHER
    WASHER
  • 24
    16133 STRAINER, Water
    STRAINER, Water
  • 25
    10-16134 SCREW
    SCREW
  • 26
    30-16128 BEARING, Ball
    BEARING, Ball
  • 27
    30-16132 BEARING, Ball
    BEARING, Ball
  • 28
    26-16130 SEAL, Oil
    SEAL, Oil
  • 29
    25-16131 O-RING
    O-RING
  • 30
    825118T HOUSING
    (BLACK)
    HOUSING
    (BLACK)
  • 30
    825119T HOUSING
    (GRAY
    HOUSING
    (GRAY
  • 31
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 32
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • -
    1600-8M0122306 GEAR HOUSING ASSEMBLY
    (BLACK SHORT)
    GEAR HOUSING ASSEMBLY
    (BLACK SHORT)
  • -
    1600-8M0122307 GEAR HOUSING ASSEMBLY
    (BLACK LONG)
    GEAR HOUSING ASSEMBLY
    (BLACK LONG)
  • -
    1668-825133T2 GEAR HOUSING ASSEMBLY
    (GRAY SHORT)
    GEAR HOUSING ASSEMBLY
    (GRAY SHORT)
  • -
    1668-825133A3 GEAR HOUSING ASSEMBLY
    (GRAY LONG)
    GEAR HOUSING ASSEMBLY
    (GRAY LONG)
  • -
    1600-8M0122308 GEAR HOUSING ASSEMBLY
    (SAILPOWER)
    GEAR HOUSING ASSEMBLY
    (SAILPOWER)
  • -
    1668-9621T3 GEAR HOUSING ASSEMBLY
    (SAILMATE)
    GEAR HOUSING ASSEMBLY
    (SAILMATE)
  • -
    16115A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    27-8M0134073 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
