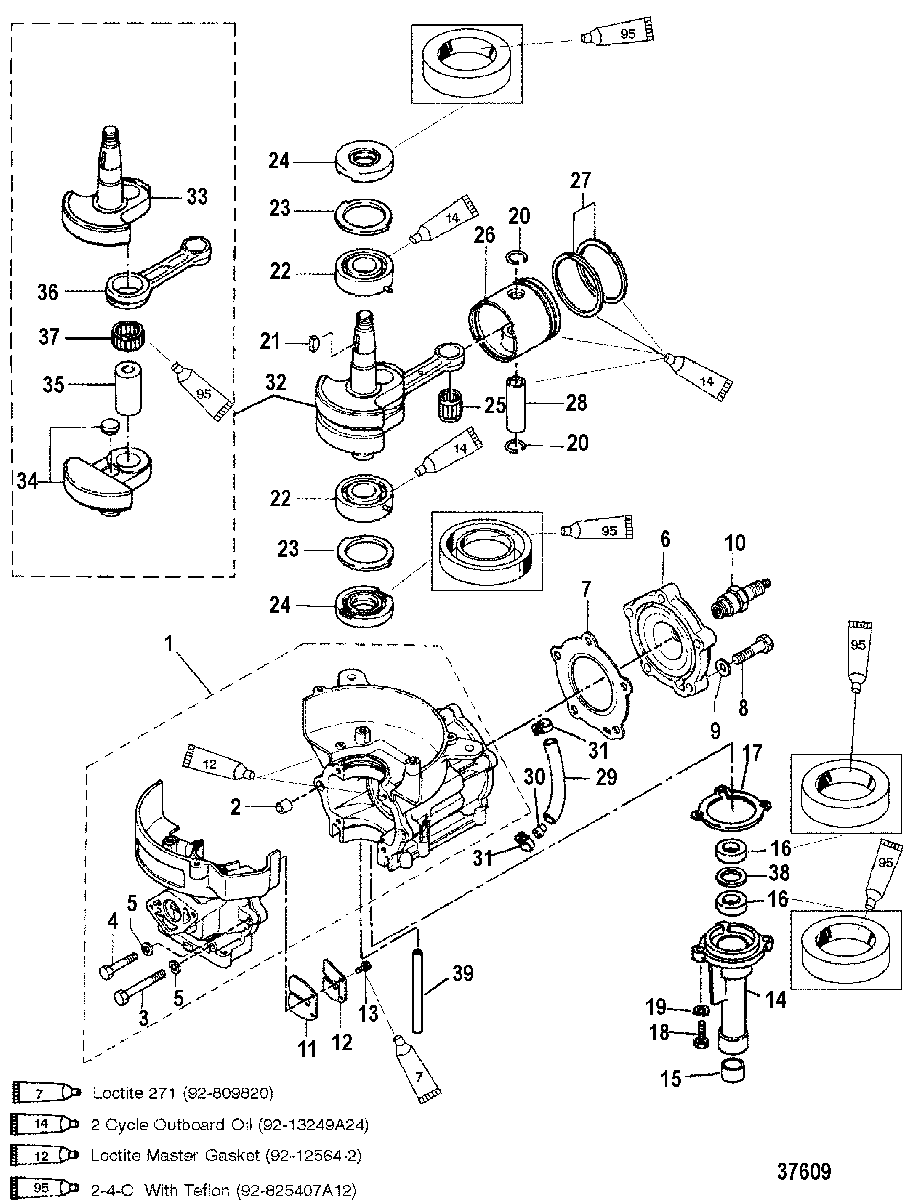

CYLINDER BLOCK/CRANKSHAFT/PISTON для Mariner - 4/5 9589154 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    878-815013A2 CYLINDER BLOCK
    SN# USA-0G574242/BEL-9973100 & Up
    CYLINDER BLOCK
    SN# USA-0G574242/BEL-9973100 & Up
  • 1
    878-815013A5 CYLINDER BLOCK
    SN# USA-0G574241/BEL-9973099 & Below
    CYLINDER BLOCK
    SN# USA-0G574241/BEL-9973099 & Below
  • 2
    17-9521814 PIN, Dowel
    SN# USA-0G574242/BEL-9973100 & Up
    PIN, Dowel
    SN# USA-0G574242/BEL-9973100 & Up
  • 2
    17-95218 PIN, Dowel
    SN# USA-0G574241/BEL-9973099 & Below
    PIN, Dowel
    SN# USA-0G574241/BEL-9973099 & Below
  • 3
    10-16695 BOLT
    BOLT
  • 4
    10-16696 BOLT
    BOLT
  • 5
    13-16818 LOCKWASHER
    LOCKWASHER
  • 6
    979-96301 CYLINDER HEAD
    CYLINDER HEAD
  • 7
    27-812939015 GASKET
    GASKET
  • 8
    10-16126 BOLT
    BOLT
  • 9
    12-4002217 WASHER
    WASHER
  • 10
    33-17719547 SPARK PLUG, (NGK#BPR7HS-10) (W/RESISTANCE)
    SPARK PLUG, (NGK#BPR7HS-10) (W/RESISTANCE)
  • 10
    33-8M0114744 SPARK PLUG, (NGK#BP7HS-10) (WITHOUT RESISTANCE)
    SPARK PLUG, (NGK#BP7HS-10) (WITHOUT RESISTANCE)
  • 11
    34-16706 REED VALVE
    REED VALVE
  • 12
    34-16707 STOP
    (4 H.P.)
    STOP
    (4 H.P.)
  • 12
    34-17666 STOP
    (5 H.P.)
    STOP
    (5 H.P.)
  • 13
    10-16820 SCREW
    SCREW
  • 14
    8150162 HOUSING
    SN# USA-0G574242/BEL-9973100 & Up
    HOUSING
    SN# USA-0G574242/BEL-9973100 & Up
  • 14
    8150162 HOUSING, Oil Seal
    SN# USA-0G574241/BEL-9973099 & Below
    HOUSING, Oil Seal
    SN# USA-0G574241/BEL-9973099 & Below
  • 15
    23-815017 BUSHING
    SN# USA-0G574241/BEL-9973099 & Below
    BUSHING
    SN# USA-0G574241/BEL-9973099 & Below
  • 16
    26-8M0101649 SEAL, Oil
    SEAL, Oil
  • 17
    27-16704 GASKET
    GASKET
  • 18
    10-16705 BOLT
    BOLT
  • 19
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 20
    53-16057 CLIP
    CLIP
  • 21
    28-16053 KEY
    KEY
  • 22
    30-16049 BEARING, Ball
    BEARING, Ball
  • 23
    8537122 THRUST PLATE
    THRUST PLATE
  • 24
    26-16051 SEAL, Oil
    SEAL, Oil
  • 25
    31-16052 BEARING, Roller
    BEARING, Roller
  • 26
    779-8M0103755 PISTON
    (STANDARD)
    PISTON
    (STANDARD)
  • 26
    779-8M0103756 PISTON
    (.5MM O.S.)
    PISTON
    (.5MM O.S.)
  • 27
    39-8M0080357 RING, Piston
    (STANDARD)
    RING, Piston
    (STANDARD)
  • 27
    39-8M0080356 RING, Piston
    (.5MM O.S.)
    RING, Piston
    (.5MM O.S.)
  • 28
    41-898101918 PIN, Piston
    PIN, Piston
  • 29
    32-8M0057112 HOSE, (160 mm)
    USE WHERE APPLICABLE
    HOSE, (160 mm)
    USE WHERE APPLICABLE
  • 30
    21-42657A3 CHECK VALVE
    USE WHERE APPLICABLE
    CHECK VALVE
    USE WHERE APPLICABLE
  • 31
    54-95224 CLIP
    CLIP
  • 32
    474-879147T15 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 33
    463-813044 CRANKSHAFT
    CRANKSHAFT
  • 34
    474-879147T15 CRANKSHAFT
    CRANKSHAFT
  • 35
    813046002 PIN, Crank
    PIN, Crank
  • 36
    629-813047 CONNECTING ROD
    CONNECTING ROD
  • 37
    31-813048 BEARING
    BEARING
  • 38
    23-815018 SPACER
    SPACER
  • 39
    32-823976 HOSE, Tell-Tale
    HOSE, Tell-Tale
  • -
    16115A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    815040T05 POWERHEAD ASSEMBLY
    (4HP) SN# USA-0G574242/BEL-9973100 & Up
    POWERHEAD ASSEMBLY
    (4HP) SN# USA-0G574242/BEL-9973100 & Up
  • -
    815042T04 POWERHEAD ASSEMBLY
    (5HP) SN# USA-0G574242/BEL-9973100 & Up
    POWERHEAD ASSEMBLY
    (5HP) SN# USA-0G574242/BEL-9973100 & Up
  • -
    815040T05 POWERHEAD ASSEMBLY
    (4HP) SN# USA-0G574241/BEL-9973099 & Below
    POWERHEAD ASSEMBLY
    (4HP) SN# USA-0G574241/BEL-9973099 & Below
  • -
    815042T04 POWERHEAD ASSEMBLY
    (5HP) SN# USA-0G574241/BEL-9973099 & Below
    POWERHEAD ASSEMBLY
    (5HP) SN# USA-0G574241/BEL-9973099 & Below
