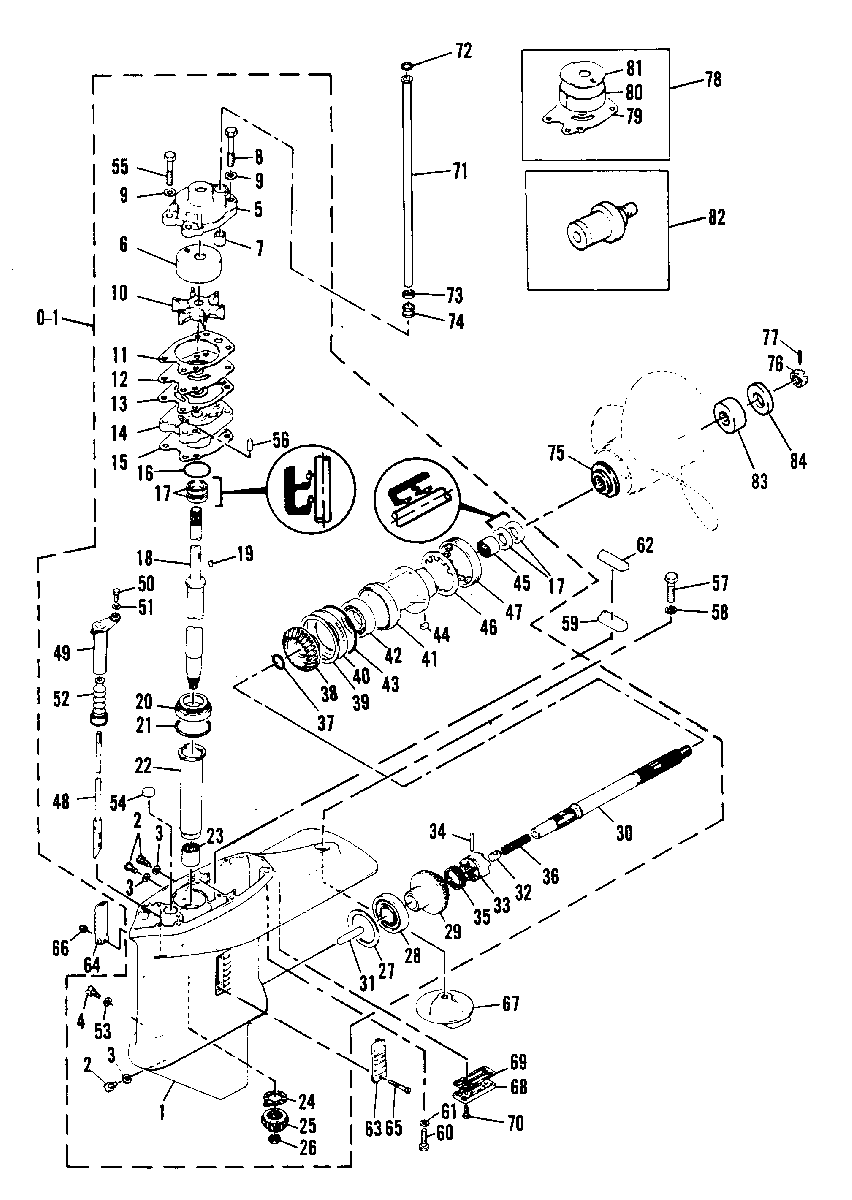

GEARHOUSING ASSEMBLY для Mariner - 40C (TWIN CARB) 6E9-000106 THRU 6E9-007665 (M)

  • №
    Артикул
    Название
  • 0-1
    1651-7994M GEARHOUSING ASS'Y (M AND E)(SEE NOTE)
    GEARHOUSING ASS'Y (M AND E)(SEE NOTE)
  • 0-1
    1651-7995M GEARHOUSING ASS'Y (ML AND EL)(SEE NOTE)
    GEARHOUSING ASS'Y (ML AND EL)(SEE NOTE)
  • 1
    1651-9573M GEARHOUSING (M-004991 ML-305579 E-103224 EL:-413358) AND AB
    GEARHOUSING (M-004991 ML-305579 E-103224 EL:-413358) AND AB
  • 1
    1651-9573M GEARHOUSING (M-004990 ML-305578 E-103223 EL-413357) AND BEL
    GEARHOUSING (M-004990 ML-305578 E-103223 EL-413357) AND BEL
  • 2
    22-81924M PLUG
    PLUG
  • 3
    27-81987 GASKET
    GASKET
  • 4
    10-83392M SCREW
    SCREW
  • 5
    46-83396M COVER, WATER PUMP
    COVER, WATER PUMP
  • 6
    83403M INSERT
    INSERT
  • 7
    26-81426M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 8
    10-84057M BOLT
    BOLT
  • 9
    12-82217M WASHER
    WASHER
  • 10
    47-99971M IMIPELLER
    IMIPELLER
  • 11
    27-83398 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 12
    83400M FACE PLATE
    FACE PLATE
  • 13
    27-83399 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 14
    46-8M0070508 BASE, WATER PUMP
    BASE, WATER PUMP
  • 15
    27-83865 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 16
    25-82275M O-RING
    O-RING
  • 17
    26-854017 OIL SEAL
    OIL SEAL
  • 18
    45-83866M DRIVE SHAFT (M AND E)
    DRIVE SHAFT (M AND E)
  • 18
    45-83867M DRIVE SHAFT (ML AND EL)
    DRIVE SHAFT (ML AND EL)
  • 18
    45-83895M DRIVE SHAFT (SUL)(OPT)
    DRIVE SHAFT (SUL)(OPT)
  • 19
    28-83444M KEY, WATER PUMP
    KEY, WATER PUMP
  • 20
    31-82319T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 21
    15-81467M SHIM, PINION GEAR ADJUST (0.05 MM)
    SHIM, PINION GEAR ADJUST (0.05 MM)
  • 21
    15-81468M SHIM, PINION GEAR ADJUST (0.08 MM)
    SHIM, PINION GEAR ADJUST (0.08 MM)
  • 21
    15-19148002 SHIM, PINION GEAR ADJUST (0.12MM)
    SHIM, PINION GEAR ADJUST (0.12MM)
  • 21
    15-19148004 SHIM, PINION GEAR ADJUST (0.30 MM)
    SHIM, PINION GEAR ADJUST (0.30 MM)
  • 21
    15-19153M SHIM, PINION GEAR ADJUST (0.50 MM)
    SHIM, PINION GEAR ADJUST (0.50 MM)
  • 22
    83868M SLEEVE, DRIVE SHAFT
    SLEEVE, DRIVE SHAFT
  • 23
    31-82316T BEARING, NEEDLE
    BEARING, NEEDLE
  • 24
    12-81455M BEARING, THRUST
    BEARING, THRUST
  • 25
    43-83869T PINION, GEAR
    PINION, GEAR
  • 26
    11-81772M NUT, PINION
    NUT, PINION
  • 27
    15-81456M SHIM, FORWARD GEAR ADJUST (0.05 MM)
    SHIM, FORWARD GEAR ADJUST (0.05 MM)
  • 27
    15-81457M SHIM, FORWARD GEAR ADJUST (0.08 MM)
    SHIM, FORWARD GEAR ADJUST (0.08 MM)
  • 27
    15-19148003 SHIM, FORRWARD GEAR ADJUST (0.12 MM)
    SHIM, FORRWARD GEAR ADJUST (0.12 MM)
  • 27
    15-19158M SHIM, FORWARD GEAR ADJUST (0.30 MM)
    SHIM, FORWARD GEAR ADJUST (0.30 MM)
  • 27
    15-81460M SHIM, FORWARD GEAR ADJUT (0.50 MM)
    SHIM, FORWARD GEAR ADJUT (0.50 MM)
  • 28
    31-82320T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 29
    43-83877T GEAR, FORWARD
    GEAR, FORWARD
  • 30
    44-94531M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 31
    83419M CAM FOLLOWER
    CAM FOLLOWER
  • 32
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 33
    52-81473T CLUTCH, SLIDING
    CLUTCH, SLIDING
  • 34
    17-81903M PIN, CROSS
    PIN, CROSS
  • 35
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 36
    24-83429M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 37
    12-81837M WASHER
    WASHER
  • 38
    43-83879T GEAR, REVERSE
    GEAR, REVERSE
  • 39
    15-81462M SHIM, REVERSE GEAR ADJUST (0.05 MM)
    SHIM, REVERSE GEAR ADJUST (0.05 MM)
  • 39
    15-81463M SHIM, REVERSE GEAR ADJUST (0.08 MM)
    SHIM, REVERSE GEAR ADJUST (0.08 MM)
  • 39
    15-19163002 SHIM, REVERSE GEAR ADJUST (0.12 MM)
    SHIM, REVERSE GEAR ADJUST (0.12 MM)
  • 39
    15-19163001 SHIM, REVERSE GEAR ADJUST (0.30 MM)
    SHIM, REVERSE GEAR ADJUST (0.30 MM)
  • 39
    15-19165M SHIM, REVERSE GEAR ADJUST (0.50 MM)
    SHIM, REVERSE GEAR ADJUST (0.50 MM)
  • 40
    12-81461M WASHER, THRUST
    WASHER, THRUST
  • 41
    8M0121494 BEARING CARRIER
    BEARING CARRIER
  • 42
    30-82296T BEARING, BALL
    BEARING, BALL
  • 43
    25-82289M O-RING
    O-RING
  • 44
    28-81916M KEY
    KEY
  • 45
    31-82317M BEARING, NEEDLE
    BEARING, NEEDLE
  • 46
    14-81877M WASHER, CLAW
    WASHER, CLAW
  • 47
    11-8M0059031 NUT
    NUT
  • 48
    83881M SHIFT CAM (M AND E)
    SHIFT CAM (M AND E)
  • 48
    83882M SHIFT CAM *ML AND EL)
    SHIFT CAM *ML AND EL)
  • 48
    83902M SHIFT CAM (SUL)(OPT)
    SHIFT CAM (SUL)(OPT)
  • 49
    83883M BUSHING, SHIFT CAM
    BUSHING, SHIFT CAM
  • 50
    10-82423M BOLT
    BOLT
  • 51
    12-82214M WASHER
    WASHER
  • 52
    82881M BOOT, SHIFT ROD
    BOOT, SHIFT ROD
  • 53
    27-95610 GASKET
    GASKET
  • 54
    22-83857M PLUG
    PLUG
  • 55
    10-85277614 BOLT
    BOLT
  • 56
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 57
    10-94532M BOLT
    BOLT
  • 58
    13-82218M WASHER, LOCK
    WASHER, LOCK
  • 59
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 60
    10-95416M BOLT
    BOLT
  • 61
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 62
    81448M RUBBER, SEAL
    RUBBER, SEAL
  • 63
    19166M COVER, WATER INLET
    COVER, WATER INLET
  • 64
    19167M COVER, WATER INLET
    COVER, WATER INLET
  • 65
    10-83858M SCREW
    SCREW
  • 66
    11-8528165 NUT
    NUT
  • 67
    83859T TRIM TAB
    TRIM TAB
  • 68
    95417M PLATE
    SERIAL 00004991-09999999
    PLATE
    SERIAL 00004991-09999999
  • 68
    83862M PLATE
    SERIAL 00000000-00004990
    PLATE
    SERIAL 00000000-00004990
  • 69
    27-95418M GASKET
    SERIAL 00004991-09999999
    GASKET
    SERIAL 00004991-09999999
  • 69
    27-83861M GASKET
    SERIAL 00000000-00004990
    GASKET
    SERIAL 00000000-00004990
  • 70
    10-83870M SCREW
    SCREW
  • 71
    32-83451M TUBE, WATER (M AND E)
    TUBE, WATER (M AND E)
  • 71
    32-83452M TUBE, WATER (ML AND EL)
    TUBE, WATER (ML AND EL)
  • 71
    32-83903M TUBE, WATER (SUL)
    TUBE, WATER (SUL)
  • 72
    12-81852M WASHER
    WASHER
  • 73
    25-81989M GASKET
    GASKET
  • 74
    26-81427M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 75
    73345A1 THRUST HUB
    THRUST HUB
  • 76
    859935 NUT, PROPELLER
    NUT, PROPELLER
  • 77
    18-82132M PIN, COTTER
    PIN, COTTER
  • 78
    46-83884M CHROME WATER PUMP KIT (OPT)
    CHROME WATER PUMP KIT (OPT)
  • 79
    83448M FACE PLATE (OPT)
    FACE PLATE (OPT)
  • 80
    83449M INNER PLATE 9OPT)
    INNER PLATE 9OPT)
  • 81
    83450M INSERT, CARTRIDGE (OPT)
    INSERT, CARTRIDGE (OPT)
  • 82
    22-8M0121335 FLUSH PLUG (OPT)
    SERIAL 00004991-09999999
    FLUSH PLUG (OPT)
    SERIAL 00004991-09999999
  • 82
    22-8M0121335 FLUSH PLUG (OPT)
    SERIAL 00000000-00004990
    FLUSH PLUG (OPT)
    SERIAL 00000000-00004990
  • 83
    23-84445T SPACER
    SERIAL 00004991-09999999
    SPACER
    SERIAL 00004991-09999999
  • 84
    12-83700M WASHER
    SERIAL 00004991-09999999
    WASHER
    SERIAL 00004991-09999999
  • 84
    27-94533M GASKET SET, LOWER UNIT
    GASKET SET, LOWER UNIT
  • 84
    84363T REPAIR KIT, WATER PUMP
    REPAIR KIT, WATER PUMP
