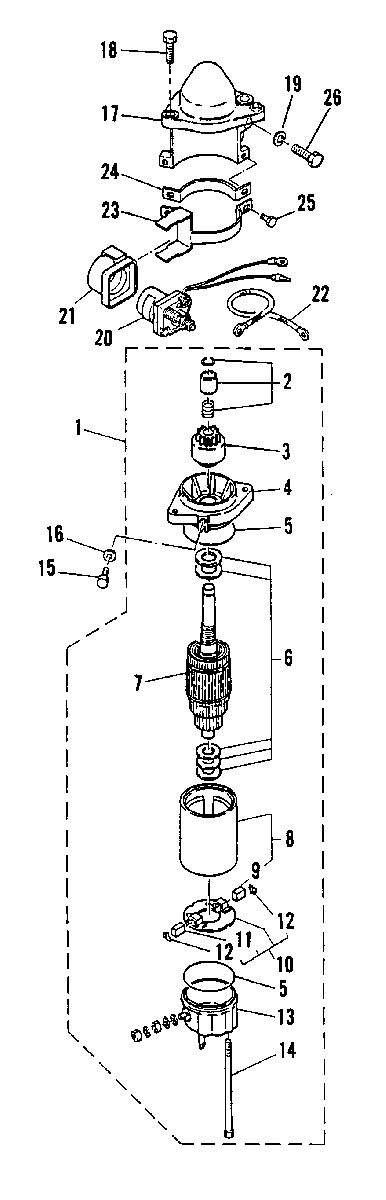

ELECTRIC STARTER MOTOR для Mariner - 40C (TWIN CARB) 6E9-000106 THRU 6E9-007665 (M)

  • №
    Артикул
    Название
  • 1
    50-97693M ELECTRIC MOTOR ASS'Y
    ELECTRIC MOTOR ASS'Y
  • 2
    96360M PINION STOPPER SET
    PINION STOPPER SET
  • 3
    97694T PINION ASS'Y
    PINION ASS'Y
  • 4
    96362M FRONT COVER ASS'Y
    FRONT COVER ASS'Y
  • 5
    25-96363M O-RING
    O-RING
  • 6
    12-96364M WASHWER KIT
    WASHWER KIT
  • 7
    96365M ARMATURE ASS'Y
    ARMATURE ASS'Y
  • 8
    96366M STATOR ASS'Y
    STATOR ASS'Y
  • 9
    96368M BRUSH ( )
    BRUSH ( )
  • 10
    96367M BRUSH HOLDER ASS'Y
    BRUSH HOLDER ASS'Y
  • 11
    96369M BRUSH ( )
    BRUSH ( )
  • 12
    24-84927M SPRING, BRUSH
    SPRING, BRUSH
  • 14
    10-84929M BOLT
    BOLT
  • 13
    96370M REAR COVER ASS'Y
    REAR COVER ASS'Y
  • 15
    10-96371M BOLT
    BOLT
  • 16
    12-82217M WASHER
    WASHER
  • 17
    97695T BRACKET
    BRACKET
  • 18
    10-42762M BOLT
    BOLT
  • 19
    12-82214M WASHER
    WASHER
  • 20
    89-8M0098898 STARTER RELAY
    SERIAL 00004991-09999999
    STARTER RELAY
    SERIAL 00004991-09999999
  • 20
    89-96357T STARTER RELAY
    SERIAL 00000000-00004990
    STARTER RELAY
    SERIAL 00000000-00004990
  • 21
    8M0010250 HOLDER, RELAY
    SERIAL 00004991-09999999
    HOLDER, RELAY
    SERIAL 00004991-09999999
  • 21
    84934M HOLDER, RELAY
    SERIAL 00000000-00004990
    HOLDER, RELAY
    SERIAL 00000000-00004990
  • 22
    84-97696M WIRE, LEAD
    WIRE, LEAD
  • 23
    97697M PLATE, SWITCH FITTING
    PLATE, SWITCH FITTING
  • 24
    97698M BRACKET, RELAY
    BRACKET, RELAY
  • 25
    10-826957M BOLT
    BOLT
  • 26
    10-82441M SCREW
    SCREW
