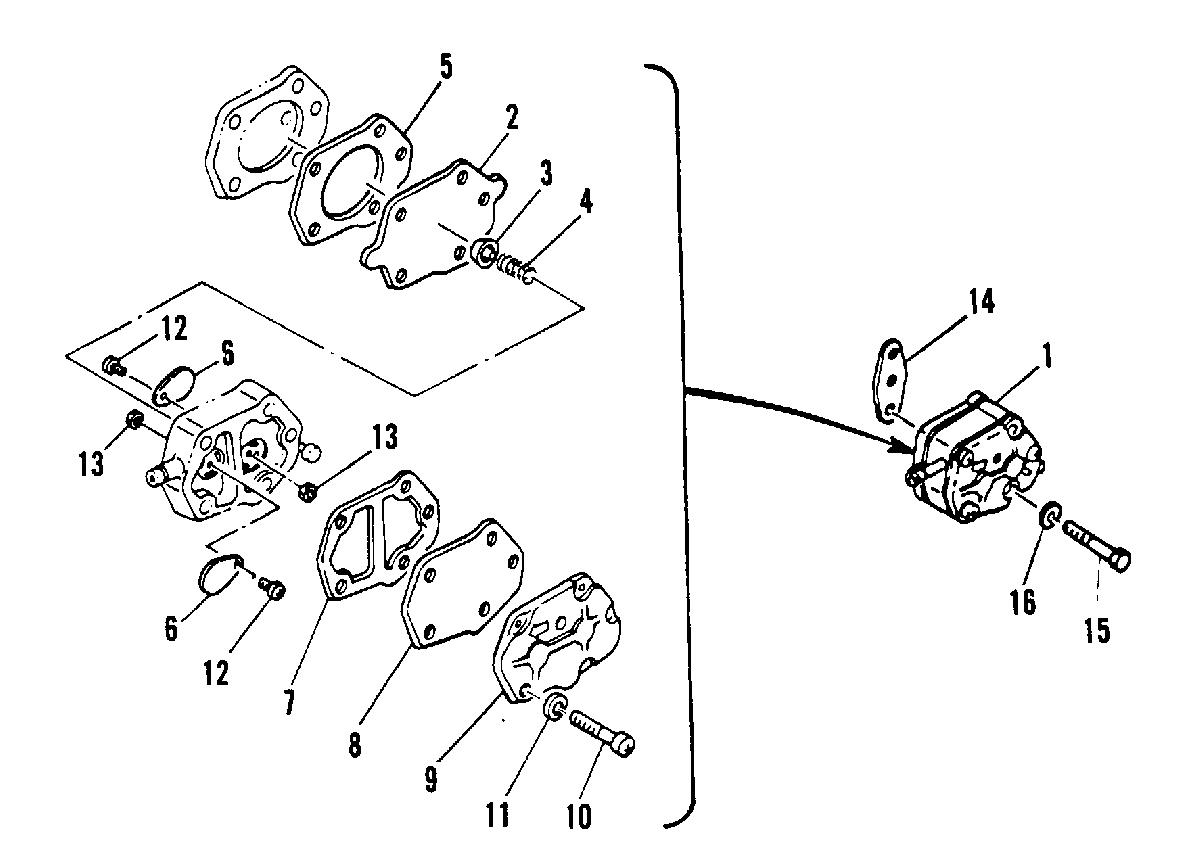

FUEL PUMP для Mariner - 40C (TWIN CARB) 6E9-000106 THRU 6E9-007665 (M)

  • №
    Артикул
    Название
  • 1
    43113T FUEL PUMP ASS'Y
    FUEL PUMP ASS'Y
  • 2
    80606M DIAPHRAGM
    DIAPHRAGM
  • 3
    80611M PLATE, SPRING GUIDE
    PLATE, SPRING GUIDE
  • 4
    24-80610M SPRING
    SPRING
  • 5
    27-80613 GASKET, BODY TO BASE
    GASKET, BODY TO BASE
  • 6
    21-41888M CHECK VALVE
    CHECK VALVE
  • 7
    27-43095M GASKET, BODY TO COVER
    SERIAL 00004991-09999999
    GASKET, BODY TO COVER
    SERIAL 00004991-09999999
  • 7
    27-80614 GASKET, BODY TO COVER
    SERIAL 00000000-00004990
    GASKET, BODY TO COVER
    SERIAL 00000000-00004990
  • 8
    84141M DIAPHRAGM
    DIAPHRAGM
  • 9
    80607M COVER
    SERIAL 00004991-09999999
    COVER
    SERIAL 00004991-09999999
  • 9
    80607M COVER
    SERIAL 00000000-00004990
    COVER
    SERIAL 00000000-00004990
  • 10
    10-82522M SCREW
    SCREW
  • 11
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 12
    10-41889M SCREW
    SERIAL EL401681-0Z999999
    SCREW
    SERIAL EL401681-0Z999999
  • 12
    10-813484M SCREW
    SERIAL 00000000-00000780
    SCREW
    SERIAL 00000000-00000780
  • 13
    11-82537M NUT
    NUT
  • 14
    27-80757 GASKET, FUEL PUMP TO CRANKCASE
    GASKET, FUEL PUMP TO CRANKCASE
  • 15
    10-827043M BOLT
    BOLT
  • 16
    12-82214M WASHER, LOCK
    WASHER, LOCK
