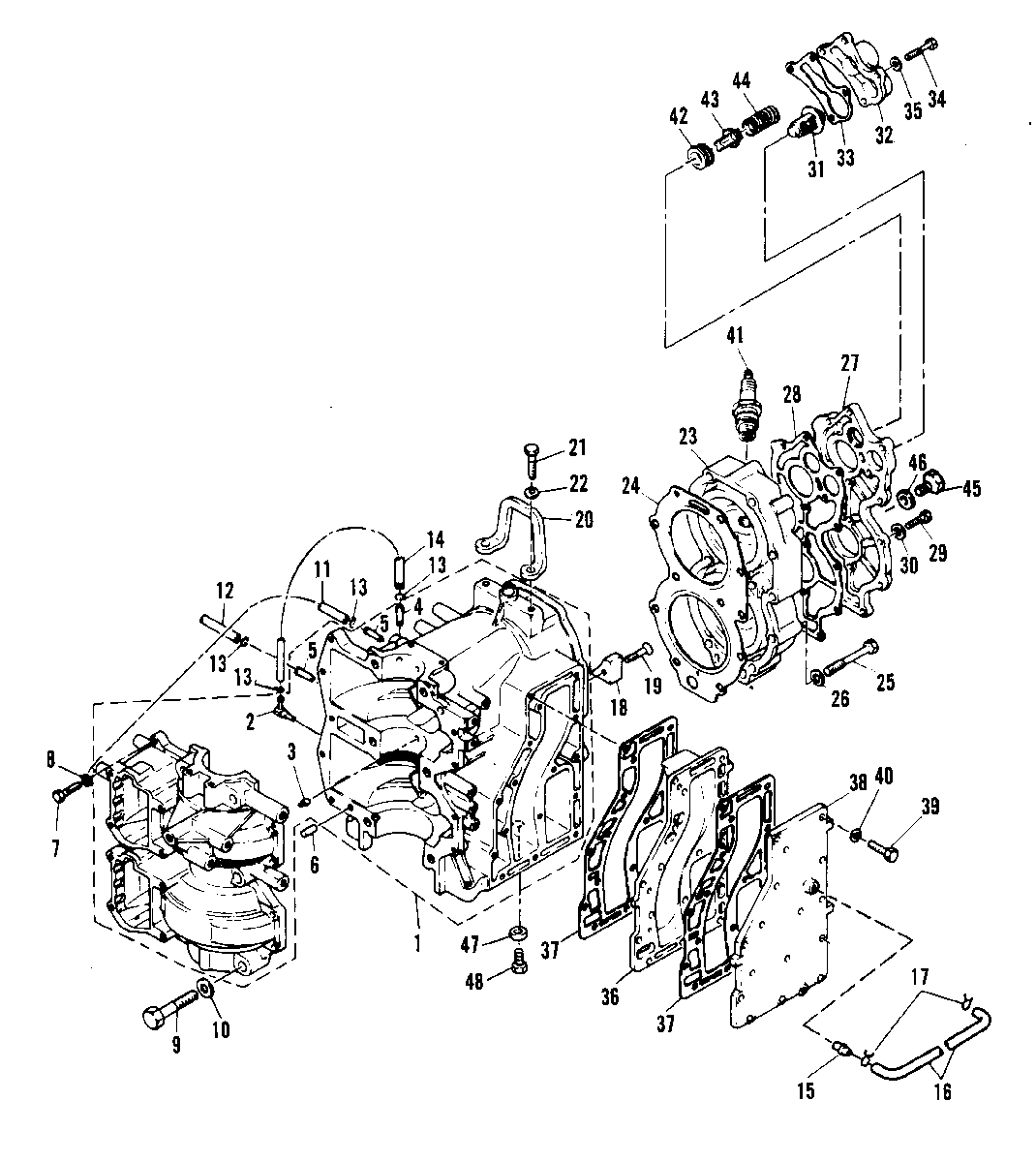

CRANKCASE AND CYLINDER HEAD для Mariner - 40C (TWIN CARB) 6E9-000106 THRU 6E9-007665 (M)

  • №
    Артикул
    Название
  • 1
    870-8561M CRANKCASE ASS'Y
    CRANKCASE ASS'Y
  • 2
    21-80727M CHECK VALVE ASS'Y
    CHECK VALVE ASS'Y
  • 3
    17-81258M PIN, DOWEL
    PIN, DOWEL
  • 4
    22-80122M FITTING, DRAING
    FITTING, DRAING
  • 5
    21-83329M FITTING, DRAIN
    FITTING, DRAIN
  • 6
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 7
    10-41837M BOLT, WITH WASHER
    SERIAL 00004991-09999999
    BOLT, WITH WASHER
    SERIAL 00004991-09999999
  • 7
    10-82405M BOLT
    SERIAL 00000000-00004990
    BOLT
    SERIAL 00000000-00004990
  • 8
    12-81792M WASHER
    SERIAL 00000000-00004990
    WASHER
    SERIAL 00000000-00004990
  • 9
    10-95413M BOLT, WITH WASHER
    SERIAL 00004991-09999999
    BOLT, WITH WASHER
    SERIAL 00004991-09999999
  • 9
    10-83327M BOLT
    SERIAL 00000000-00004990
    BOLT
    SERIAL 00000000-00004990
  • 10
    12-81807M WASHER
    SERIAL 00000000-00004990
    WASHER
    SERIAL 00000000-00004990
  • 11
    32-811045M HOSE (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
    HOSE (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
  • 12
    32-811045M HOSE (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
    HOSE (EL-418727 EUL-620175) AND BELOW
    SERIAL 00000000-00006405
  • 13
    54-82046M CLAMP
    CLAMP
  • 14
    32-83328M HOSE
    HOSE
  • 15
    22-94716M FITTING, WATER
    FITTING, WATER
  • 16
    32-94479M HOSE
    HOSE
  • 17
    54-82047M CLAMP
    CLAMP
  • 18
    83330M ANODE
    ANODE
  • 19
    10-82168M SCREW
    SCREW
  • 20
    814553M BRACKET, ENGINE (M AND ML)
    BRACKET, ENGINE (M AND ML)
  • 21
    10-82438M BOLT
    BOLT
  • 22
    13-82215M WASHER, LOCK
    SERIAL 00000000-00004990
    WASHER, LOCK
    SERIAL 00000000-00004990
  • 23
    968-8562M HEAD, CYLINDER
    HEAD, CYLINDER
  • 24
    27-95414 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 25
    10-8M0101617 BOLT, WITH WASHER
    SERIAL 00004991-09999999
    BOLT, WITH WASHER
    SERIAL 00004991-09999999
  • 25
    10-82408M BOLT
    SERIAL 00000000-00004990
    BOLT
    SERIAL 00000000-00004990
  • 26
    12-80564M WASHER
    SERIAL 00000000-00004990
    WASHER
    SERIAL 00000000-00004990
  • 27
    97703M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 28
    27-97704M GASKET, HEAD COVER
    GASKET, HEAD COVER
  • 29
    10-84058M BOLT
    BOLT
  • 30
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 31
    99080M THERMOSTAT
    THERMOSTAT
  • 32
    97705M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 33
    27-814555 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 34
    10-83285M BOLT
    BOLT
  • 35
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 36
    97707M INNER COVER, EXHAUST
    INNER COVER, EXHAUST
  • 37
    27-83338 GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 38
    97708M OUTER COVER, EXHAUST
    OUTER COVER, EXHAUST
  • 39
    10-82405M BOLT
    SERIAL 00004990-09999999
    BOLT
    SERIAL 00004990-09999999
  • 39
    10-82405M BOLT
    SERIAL 00000000-00004990
    BOLT
    SERIAL 00000000-00004990
  • 40
    12-82214M WASHER
    WASHER
  • 41
    33-8M0114741 SPARK PLUG (B-8HS) NGK
    SPARK PLUG (B-8HS) NGK
  • 42
    25-82067M GROMMET
    GROMMET
  • 43
    81267M VALVE, PRESSURE CONTROL
    VALVE, PRESSURE CONTROL
  • 44
    24-83340M SPRING
    SPRING
  • 45
    22-81926M PLUG
    PLUG
  • 46
    27-81990M GASKET, PLUG
    GASKET, PLUG
  • 47
    97-83394M ANODE
    ANODE
  • 48
    10-826957M BOLT
    BOLT
  • 48
    95415M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (M-004991 ML-305579)
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (M-004991 ML-305579)
  • 48
    95415M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (004990 ML-305578 E-)
    POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (004990 ML-305578 E-)
  • 48
    27-97666M GASKET SET, POWERHEAD
    GASKET SET, POWERHEAD
