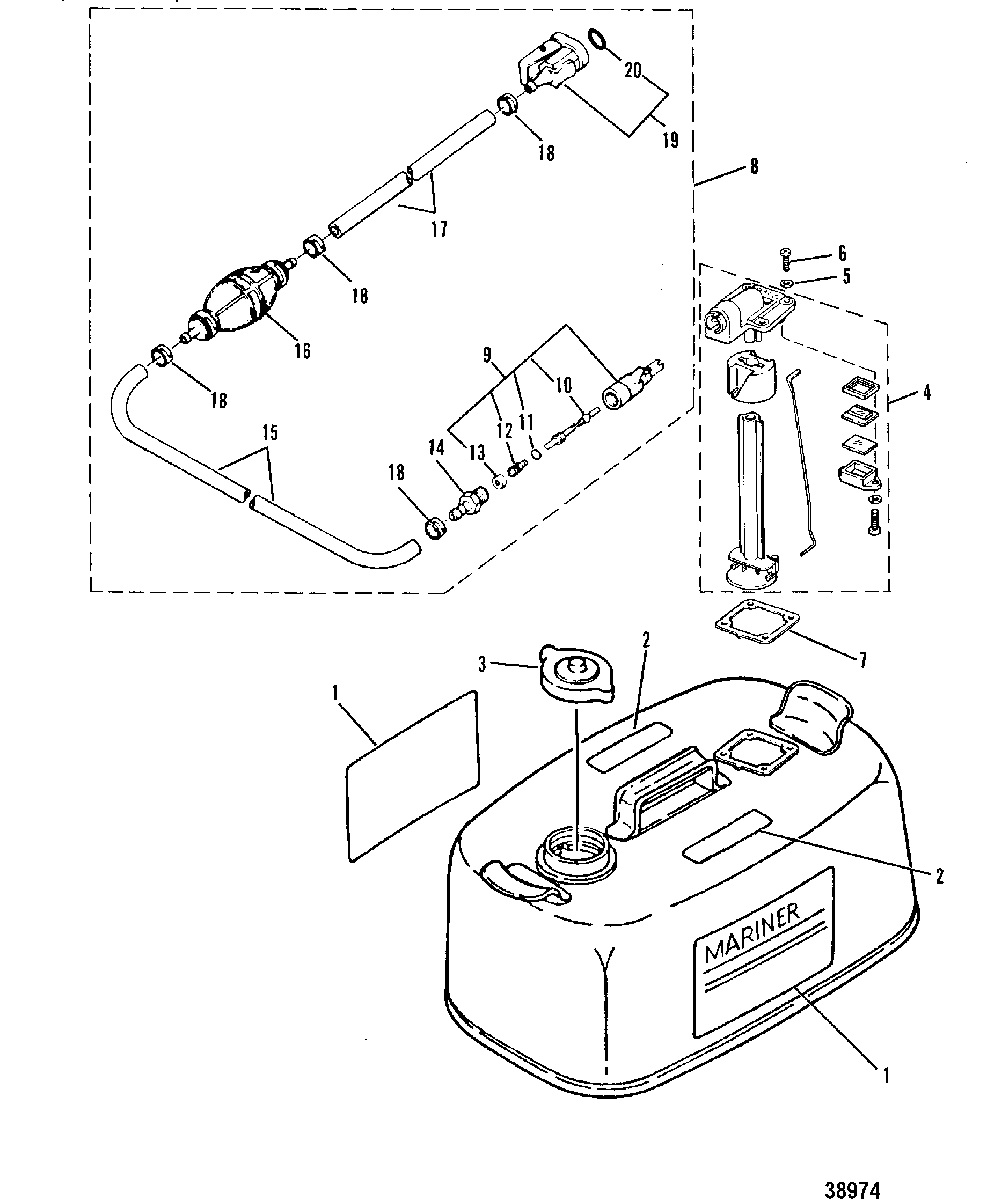

FUEL TANK AND FUEL LINE ASSEMBLY(ORIGINAL EQUIPMENT) 24 LIT для Mariner - 30A 689-411947 THRU 689-550100 (EL)
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpDECAL, SIDE (ENGLISH)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
137-95504M DECAL, SIDE (ENGLISH)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpDECAL, SIDE (ENGLISH)
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
137-14617M DECAL, SIDE (ENGLISH)
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & BelowDECAL, SIDE (ENGLISH)
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below -
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP, Fuel Tank
SN# M-030662, ML-329959, E-108559, EL-418520 & UpCAP, Fuel Tank
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
336-18962M CAP ASSEMBLY, Fuel Tank
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowCAP ASSEMBLY, Fuel Tank
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
495499M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS"YGASKET, FUEL METER ASS"Y
-
832-877681Q8 LINE ASSEMBLY, Fuel
SN# M-030662, ML-329959, E-108559, EL-418520 & UpLINE ASSEMBLY, Fuel
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
832-877681Q8 LINE ASSEMBLY, Fuel
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowLINE ASSEMBLY, Fuel
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
930185Q3 BAYONET ASSEMBLY, FuelBAYONET ASSEMBLY, Fuel
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRINGSPRING
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-16571M HOSE, CONNECTOR HOUSING TO BULB
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpHOSE, CONNECTOR HOUSING TO BULB
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUK-620236 THRU M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255HOSE, CONNECTOR HOUSING TO BULB
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUK-620236 THRU M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235 & BelowHOSE, CONNECTOR HOUSING TO BULB
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235 & Below -
1689396Q01 BULB, PRIMER
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & UpBULB, PRIMER
SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up -
1689396Q01 BULB, Fuel Primer, PRIMER
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowBULB, Fuel Primer, PRIMER
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
1732-94727M HOSE, BULB TO ENGINE CONNECTOR
SN# M-026304, ML-325084, MUL601286, E-107089, EL-415058, EUL-620236 THRU M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255HOSE, BULB TO ENGINE CONNECTOR
SN# M-026304, ML-325084, MUL601286, E-107089, EL-415058, EUL-620236 THRU M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 -
1732-94727M HOSE, BULB TO ENGINE CONNECTOR
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235 & BelowHOSE, BULB TO ENGINE CONNECTOR
SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUK-620235 & Below -
1854-16574M CLAMP, HOSE
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpCLAMP, HOSE
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
1854-16574M CLAMP, HOSE
SN# M-028487, ML-327903, MUL-601456, E-107929, EL-417075 THRU M-033627, ML-332851, MUL-700270, E-109304, EL-420574CLAMP, HOSE
SN# M-028487, ML-327903, MUL-601456, E-107929, EL-417075 THRU M-033627, ML-332851, MUL-700270, E-109304, EL-420574 -
1854-16725M CLAMP, HOSE
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowCLAMP, HOSE
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
1922-13563Q3 CONNECTOR, Fuel, ENGINE END
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & UpCONNECTOR, Fuel, ENGINE END
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up -
1930185Q3 CONNECTOR, Fuel, ENGINE END
SN# M-028487, ML-327903, MUL-601456, E-107929, EL-417075 THRU M-033627, ML-332851, MUL-700270, E-109304, EL-420574CONNECTOR, Fuel, ENGINE END
SN# M-028487, ML-327903, MUL-601456, E-107929, EL-417075 THRU M-033627, ML-332851, MUL-700270, E-109304, EL-420574 -
1922-14213Q CONNECTOR, Fuel, ENGINE END
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowCONNECTOR, Fuel, ENGINE END
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below -
2025-82789M O-RING
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & BelowO-RING
SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
